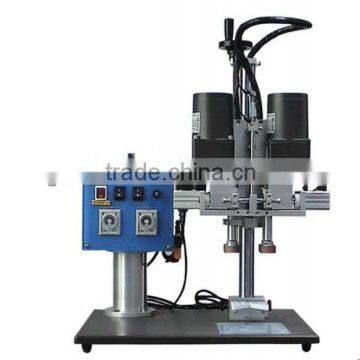

Sipuxin machinery semi automatic bottle capping machine

The Manual Cappers are portable, hand-held, cap tighteners that can be used to tighten or to remove screw and lug type caps. Both models of the manual capper have adjustable clutches that eliminate cap damage and reduce insert wear. Once the cap is fully tightened, the chuck will stop spinning automatically, signaling you to move on to the next bottle. When combined with the self-balancer and stand, the manual capper can be mounted overhead, which can dramatically reduce fatigue associated with repetitive use.

Technical Specifications:

Model                              SDcapper LD (Light Duty )                      SDcapper HD (Heavy Duty)
Cap Dia.                                  5 ~ 30mm                                                 5 ~ 90mm
Speed                                  About 30cpm.                                            About 30cpm.

Dimensions                      Φ33mm×L270mm                                     Φ40mm×L310mm

Stand Size                     L1350mm×H1350mm                               L1350mm×H1350mm

Main Body Weight                       0.6kg                                                         1.1kg

Air Pressure             between 4.5kg/cm² and 6.2kg/cm²        between 4.5kg/cm² and 6.2kg/cm²

Air Consumption                      0.08m³/min                                                0.08m³/min

Quick Connection Clip                   M8                                                           M8

Clutch                         6 grades of adjustable torque                    12 grades of adjustable torque
