Home > Products > WIFI Module > 2T2R 802.11a wireless module usb dual band 2.4GHz & 5.8GHz AR1021 atheros usb 2.0 wifi module

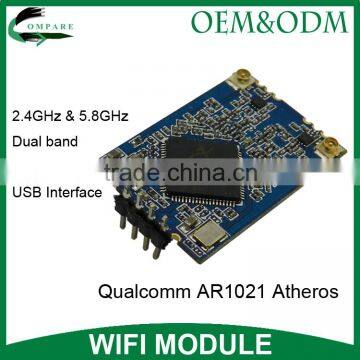

2T2R 802.11a wireless module usb dual band 2.4GHz & 5.8GHz AR1021 atheros usb 2.0 wifi module

FOB Price

Negotiable / Piece

1000 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Compare
Model Number	CP506

WIFI Module Specification

Product Description

802.11a Spec

Key Features

Specification

Model	CP506
Standards	IEEE 802.11a/b/g/n,CSMA/CA with ACK
Port	USB1.1, USB2.0
Frequency Range	2.4~2.4835GHz,5.15-5.35GHZ, 5.745-5.825GHz
Channel	1-14(optional USA Norm, EN, Japanese Norm)
Modulation Type	802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps)
Transmission Rate	802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802011n: Max 150Mbps
Receive Sensitivity	130M: -65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER
Transmission Distance	Indoor up to 30m,outdoor up to 80m(Base on the environment)
RF Rate	16dBm(Maximum)
Antenna Gain	Need external antenna
Spread-Spectrum Technique	DSSS(direct sequence spread spectrum)
Working Voltage	DC 3.3V ±0.2V
Dimension	27mm18mm2.5mm
Working Environment	Working Temperature: -20℃ to 45℃ Storage Temperature: -40℃ to 70℃ operating humidity:10% to 90%RH noncondensing Storage Humidity: 5% to 90%RH noncondensing
Supported OS	Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS
Chip	Qualcomm AR1021

Dimension

Our Services

OEM/ODM

customization software

adjustabe hardware according to your mold

warranty 1 year
