Supply Steel Angel, Angle Bar
- Tianjin
- T/T D/P D/A
You May Like
Product Details
| Standard | ASTM, BS, GB, JIS | Dimensions | 20*20-200*200mm | |
| Grade | Q195-Q420 Series | Place of Origin | Tianjin, China | |
| Brand Name | Youyong | Model Number | YY-276 | |
| Type | Equal | Application | construction |
Product Description
Specifications

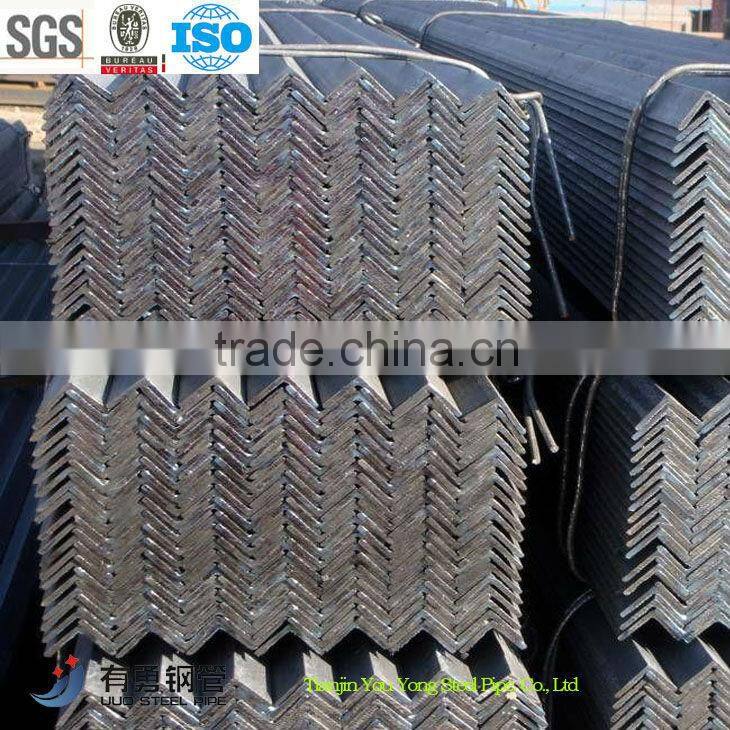

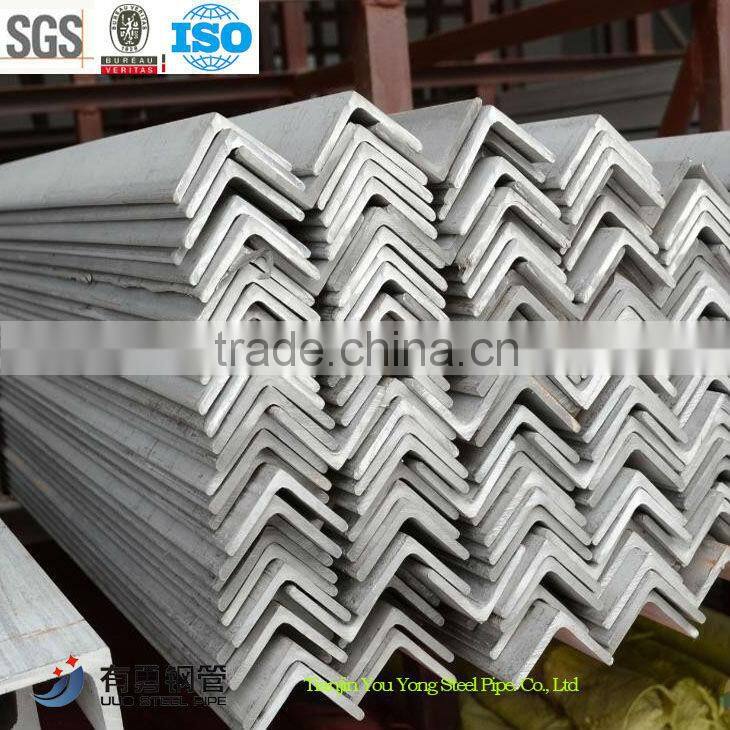

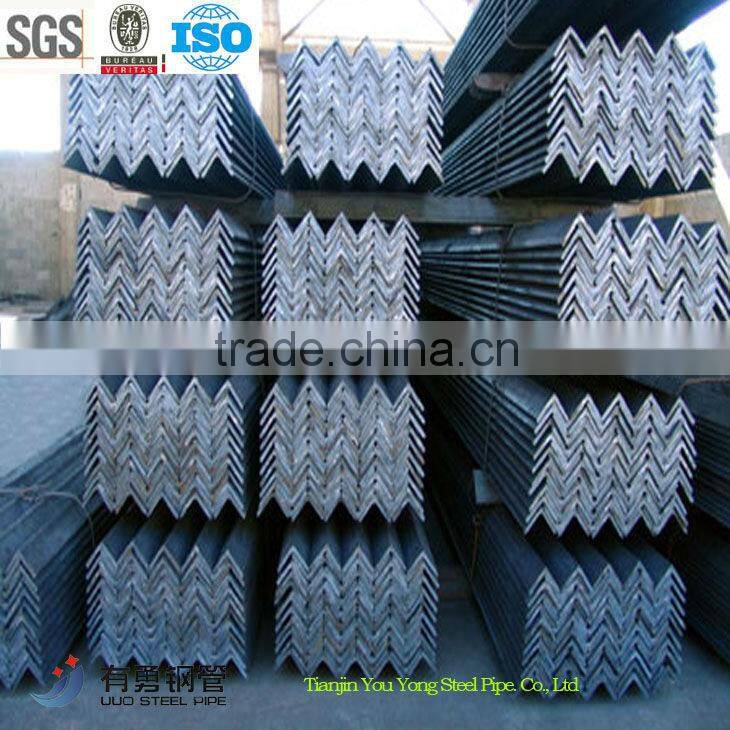

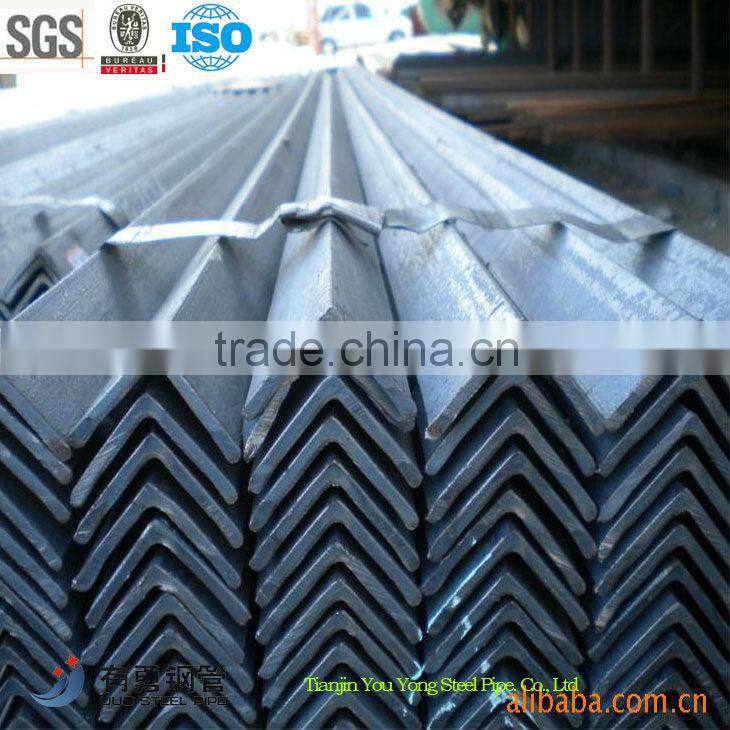

Angle Steel1.Grade:SS400 A36 Q235 Q345 S235JR ST37, etc
2.Thickness:3.0-24mm
3.Width:16-200m
4.Length:5.8-12m
Normal Steel Angle size for your reference
Specification Leg length*leg length*thickness (mm)
| Weight (kg/m) | Specification Leg length*leg length*thickness (mm)
| Weight (kg/m) |
25*25*3 | 1.124 | 90*90*8 | 10.946 |
25*25*4 | 1.459 | 90*90*10 | 13.476 |
30*30*3 | 1.373 | 100*100*6 | 9.366 |
30*30*4 | 1.786 | 100*100*7 | 10.83 |
40*40*3 | 1.852 | 100*100*8 | 12.276 |
40*40*4 | 2.422 | 100*100*10 | 15.12 |
40*40*5 | 2.976 | 100*100*12 | 17.898 |
45*45*3 | 2.088 | 110*110*7 | 11.928 |
45*45*4 | 2.736 | 110*110*8 | 13.532 |
45*45*5 | 3.369 | 110*110*10 | 16.69 |
50*50*3 | 2.332 | 110*110*12 | 19.782 |
50*50*4 | 3.059 | 125*125*8 | 15.504 |
50*50*5 | 3.77 | 125*125*10 | 19.133 |
50*50*6 | 4.465 | 125*125*12 | 22.696 |
63*63*5 | 4.822 | 125*125*14 | 26.193 |
63*63*6 | 5.721 | 140*140*10 | 21.488 |
63*63*8 | 7.469 | 140*140*12 | 25.522 |
70*70*5 | 5.397 | 140*140*14 | 29.49 |
70*70*6 | 6.406 | 160*160*10 | 24.729 |
70*70*7 | 7.398 | 160*160*12 | 29.391 |
70*70*8 | 8.373 | 160*160*14 | 33.987 |
75*75*5 | 5.818 | 160*160*16 | 38.518 |
75*75*6 | 6.905 | 180*180*12 | 33.159 |
75*75*7 | 7.976 | 180*180*14 | 38.383 |
75*75*8 | 9.030 | 180*180*16 | 43.542 |
75*75*10 | 11.089 | 180*180*18 | 48.634 |
80*80*6 | 7.376 | 200*200*14 | 42.894 |
80*80*7 | 8.525 | 200*200*16 | 48.68 |
80*80*8 | 9.658 | 200*200*18 | 54.401 |
80*80*10 | 11.874 | 200*200*20 | 60.056 |
90*90*6 | 8.35 | 200*200*24 | 71.168 |
Application of Angle Steel
1. Be used to the structure of the different needs of various mechanical components, it can also make fittings between components.
2. Widely used in various building structure and engineering structure, such as the beam, Bridges, transmission tower, lifting transportation machinery, ship, industrial ti
