Home > Products > CAST ACRYLIC SHEET (PMMA) > Plexiglass Sheet, PMMA Sheet

Plexiglass Sheet, PMMA Sheet

FOB Price

US$ 2.2 - 2.37 / Kilogram

100 Kilograms(Min. Order)

Port Shanghai China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	Oursign
Material	Acrylic	Thickness	2-30mm, 2-30mm
Size	10502050mm 12501850mm 12502450mm 20503050mm, 10502050mm 12501850mm 12502450mm 20503050mm

Product Description

Specifications

Clear Acrylic Sheet
Chemical: PMMA
Size:100mmx2020mm,1250mm*1850mm,1250mm*2450mm,2050mm*3050mm
different color available

Cast Acrylic Sheet , plastic acrylic sheet, Plexiglass Board

Introduction:

Cast Acrylic sheet has excellent light transmittance, higher mechanical strength. It is also light-weight, good weather resistance, corrosion resistance, good insulation properties, easily be processed. The board can be used for a certain strength requirements of the transparent structure, the cups, lamps, instrument parts, optical lenses, decorative gifts and so on. At present, the material widely used in advertising light box, signs, handicrafts, etc.

Features:

1. excellent light transmittance.

2. high mechanical strength.

3. weather proof

4. non-toxic and chemical resistant.

5. easily be processed

Application:

1. Advertisement: blow molding board, CNC engraving materials, Laser engraving materials, sign board, logo and mark, etc.

2. Furnitureoffice furniture, cabinet, bath cabinet, etc.

3. Finishing Materialdecorative sheets, storage racks, room segments, etc.

4. Handicrafts, toys, etc.

Specification:

Name	Color	*Width(mm) Length(mm)**	Thickness±0.2(mm)
Cast Acrylic Sheet	Transparent (Clear)	10202020 12501850 1250*2450	2
		10202020 12501850 12502450 20503050	3~12
		10202020 12501850 12502450 20503050	12~20
		10202020 12501850 12502450 20503050	20~30
	White,Red, Yellow, Blue, Green, Black, Orange, Gray,Purple,etc.	10202020 12501850 1250*2450	2
		10202020 12501850 12502450 20503050	3~12
		10202020 12501850 12502450 20503050	12~20

Mechanical Property:

Physical Property		Unit	Value
Optical	Light Transmittance	%	91
Optical	Refractive Index	%	1.49
Thermal	The application of temperature		-40~70
	Hot Forming Temp		140~180
	Heat Distortion Temp		87
	Coefficient Of Liner Thermal Expansion	1/	1.7*10^-4
	Specific Heat	kj/(kg.)	1.25~1.7
Mechanical	Specific Gravity(30/4)	g/cm³	1.19~1.2
	Tensile Strength	mpa	62~75
	compressive Strength	mpa	130
	Impact Strength	kj/m²	12.1~12.8
	Rockwell Hardness		95
Electrical	Surface Resistivity	Ω	10¹⁶
	20 Volume Resistivity	Ω.m	10¹⁵
	Flammability	mm/min	33
Miscellaneous	Water Absorption(24Hrs)	%	0.3
Miscellaneous	Odor		None

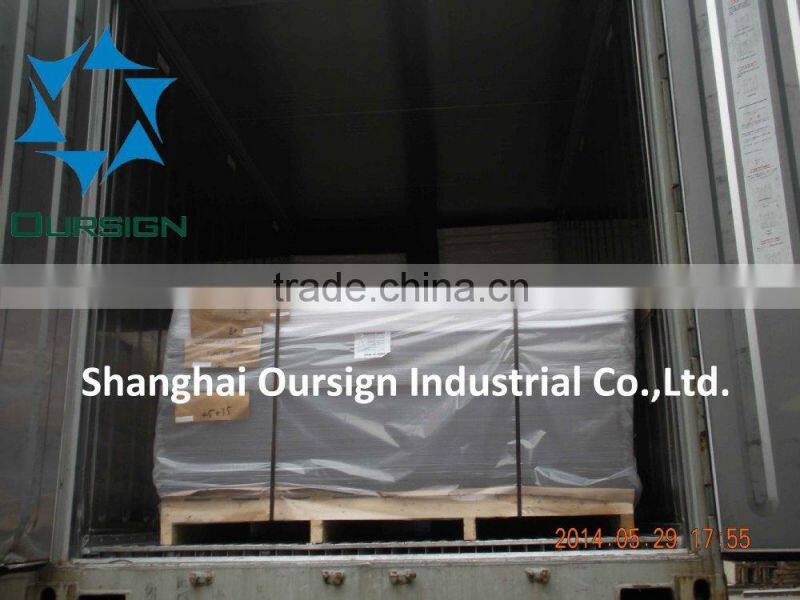

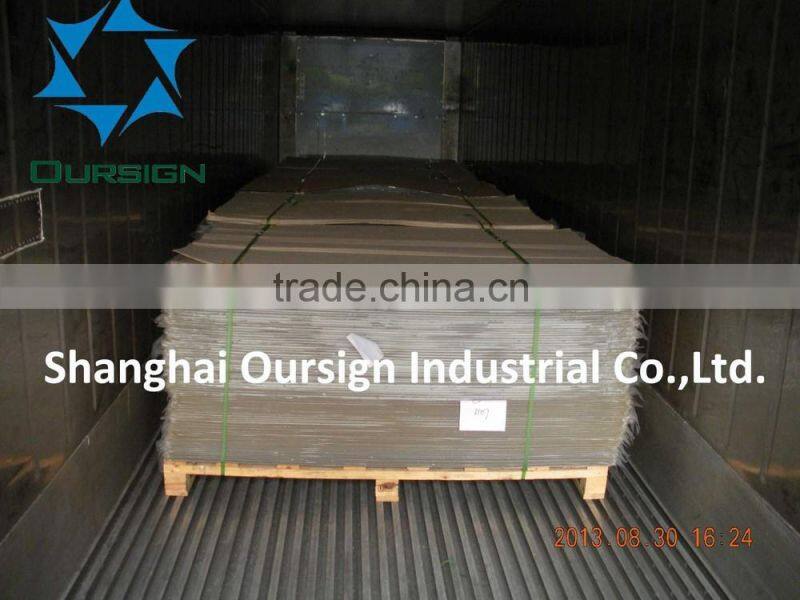

Packaging & Shipping
