New condition electrical hoist crane 500 kg, light duty crane
- Tianjin/Qingdao/Shanghai/Other
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Factory,storage,yard,etc | |
| Rated Loading Capacity | 1-20ton | Max. Lifting Load | 20ton | |
| Max. Lifting Height | 40m | Span | 3-40m | |
| Place of Origin | Henan, China | Brand Name | WEIHUA | |
| Model Number | LDA | Certification | ISO CE CU-TR | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
New condition electrical hoist crane 500 kg, light duty crane

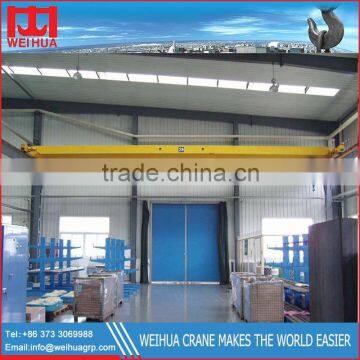

LDP type top running overhead crane, is excellent for low runway workshop.The hoist runs on top of the beam, and gives better lift height than standard single girder crane and provide substantial savings in eliminating the need for both purchase and installation of the crane rail.two operational methods - ground or cabin (open or closed type).
The capacity:1T, 2T, 3T, 5T,10T,16T,20T,span is from 7.5m to 22.5m,optional voltage is 380V 50Hz three-phase
Lifting Capacity | T | 1t | 2t | 3t | 5t | 10t | 16t | 20t | ||
Span | m | 7.5~22.5m | 7.5~31.5 | |||||||
Speed | Lifting | MD1 hoist | m/min | 8/0.8 (7/0.7) | 3.5/0.35 | |||||
CD1 hoist | 8 (7) | 3.5 | ||||||||
Traveling of electric hoist | 20 | 20 | ||||||||
Traveling of crane | 20/30 | 20/30 | ||||||||
Wheel diameter | Φ270 | Φ370 | ||||||||
Width of trail | 37~70mm | 37~70mm | ||||||||
Operational Model | remote control; ground handle | remote control; ground handle | ||||||||
Working Duty | A3 | |||||||||
Power Supply | Three-phase A.C. 380V, 50Hz | Three-phase A.C. 380V, 50Hz | ||||||||
1. Delivery
2. Customer Visits
u Warranty: Weihua grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. During the warranty period, the defective parts will be repaired or replaced free of charge. But it does not cover all those parts damaged due to interventions for presumed problems or non conforming verification.
u Installation & Maintenance: Weihua has the ability to provide you with overall installation of complicated machinery and equipment, such as, overhead crane, jib crane, crawler crane, tower crane, construction hoist, etc. We would like to help you to carry out the normal operation of the machines immediately.
