PTO SHAFT FOR AGRICULTURAL

 We supply all kind of  PTO shafts with safty device and different fuction yoke to meet your need, exporting!

Tube: 3-lemon tube ( triangular tube)

spline:13/8" Z-6 13/8" Z-21  and so on.

cross:27*74.5

Yoke: shear bolt

Forged or casting steel

Yoke type we have: quick release, auto lock, overuning clutch, slip clutch, etc.

Packing: each piece in one carton

1.Product description

REFERING CROSS JOURNAL
	A×B
	22*54	23.8*61.2	24*63	27*70
	27*74.5	30.2*80	30*88	38*102.5
	30.188*92	35*98	39*118	48*127
TUBE PROFILES
B  SERIES
		INNER (A×S)		OUTER (A×S)
	B1	26.6*3.5		32.4*2.5
	B2	29*4		36.1*3.4
	B4	36.1*4.4		43.4*3.3
	B5	44.7*4		51.3*2.9
	B6	47.7*4		53.6*3.8
	B7	44.7*5.5		53.6*3.8
	B8	53.6*5		62.7*4
L  SERIES
		INNER (D×A×S)		OUTER (D×A×S)
	L1	23.8*30.8*3.5		30*39*3
	L4	34.5*40.1*4		41.25*48*3
	L6	39.5*49*4.5		48*57.5*3.8
S  SERIES
	INNER (D×A×S)		OUTER (D×A×S)
	37.1*47.4*6		46.4*56.8*4.3
A  SERIES
		INNER		OUTER
	A1	(A×S)28*4		(A×S)36*3.5
	A2	(B)29.6		(A×S)40*5
	A3	(B)39.6		(A×S)50*5

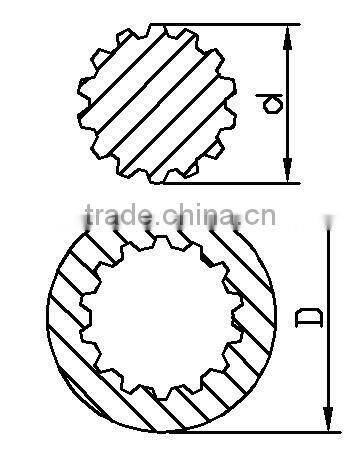

Ⅰ SERIES
		INNER(d)		OUTER(D)
	14+2Z	29.75		48
	6-1Z	34.8		48
	12+2Z	46.5		65
	6Z	34.8		48
	8Z	37.8		50
D SERIES
		INNER(C×B×A)		OUTER(C×B×A)
		39.7×35.5×22.9		40.5×36.1×53.8
		50×45×35		51.5×45.5×60

2.Certificate

3.Production & Packing Process

4.Advantage of Our Company

  1) Professional Agricultural Machinery manufacture for more than 5 years

   2) High quality with competitive price

   3) Independent Design and Outstanding Sales Team

   4) Large Supply Ability

   5) Excellent after-sales service

5. Buyer Reading

1) Sample Policy:You can buy & test the quality of our sample firstly before you     purchase them in mass quantity.

2) Payment Way:   T/T, L/C, Western Union, D/P

3) Delivery Date:  5-30 working days after deposit paid

4) Shipping Way:  By Sea or By Air

 5) After Service:  12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need them urgently.

 6.Our Purpose:

Quality Implements you can afford to save your money & reduce the trouble
