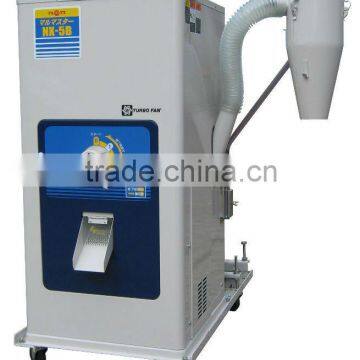

Japanese Rice Mill / Agricultural Machinery (NX-5B-3) Machines Milling

Place of Origin	Japan		Brand Name	Marumasu
Model Number	R003-003

Specifications

rice mill / agricultural machinery
1.Efficiency :(unhulled rice) 80~170kg/h
2.Size:W750*L630*H920mm
3.Weight:46kg

Japanese rice mill / agricultural machinery (NX-5B-3) machines milling

Japanese rice mill / agricultural machinery



   Specifications

	Cycle (Hz)	Motor to be used (kw)	Revolution figure (rpm)	Hulled rice capacity/ hour(kg/h)		Tank capacity (kg)	Weight (kg)	Out-side measurement (W×L×H)
NX-5B       type	50	1.5	480	90~120		60	53.5	75×84×102
		2.2	580	140~180
		3.7	770	200~240
	60	1.5	480	90~120
		2.2	580	140~180
		3.7	810	200~240

  Notice 1)The milling capacity per an hour is variable a bit according to primary factors,

             those are the degree of drying, kinds, quality of rice and pounding time etc.



*This rice polishing machine can pearl hulled rice and also unhulled rice.

*By FF patent device, clear such a little remnants as hull and straw refuse.
*By the high speed suction fan, clear sticked bran.
*Realize the rice pearling system under low temperature condition.
*By the cyclone, hull and bran are issued out of machine .
*Tool is unnecessary to clean the pounding devic
*Motor is not attached to this rice milling machine.







ABOUT MARUMASU



MaruMasu Kikai Co.,Ltd has been actively engaged as rice milling machine manufacturer for 60 years. We are well known, because our market share for Japanese domestic rice milling machinery is 30%.

Our main products are rice milling machine, stone picker, flour miller, rice elevator, rice cake making machine and grain sorting machine. We wish to call your particular attention to this fact that our market share of rice milling machine of which horse power is from 3 to 5 class in Japanese domestic is over 50%, so we are absolutely sure that they are excellent in the rice milling efficiency and those finish.

In overseas countries there are actual export to Korea, China, Thailand, Vietnam and Sri Lanka.



OUR QUALITY



For the farm areas, we have succeeded to develop the special type of machine unified the functions of hulling and rice milling for Asia only.

Rice milling of low cost and high quality is completed by joining together stone picker and sorting machine.

In addition it, the rice milling machine business used at the store, for example, the Supper Market and the Department Store, can make a free choice of such rice milling finish as partial pounding and clean pearled rice without water, and it is easily possible for even women to keep in repair.



OUR SERVICE



Further more, we have had an experience with designing and constructing the rice milling plant (max.500kg/h class) accepting an order from Korea.

We will be able to give proper plans about rice milling machinery to the various kinds of demands to our customer.

We are looking forward your contacts to us.
