Automatic microminiature toroidal winding machine
- 8000 Set / Sets per Month
- XIAMEN port
- Credit Card
You May Like
-
Automatic toroidal coil winding machine(SS900B4 series) replace GORMAN toroid winder
-
(SS900B6 series) automatic toroidal winding machine
-
Replace RUFF toroid winder by (SS300 series) gear type automatic big heavy toroid coil winding machine
-
Automatic miniature toroidal coil winding machine
-
automatic toroidal coil winder(SS900B6 series wire D 0.3~1.2mm) replace RUFF toroidal winder
-
automatic toroidal transformer winding machine(SS900B6 series wire D 0.3~1.2mm) replace GORMAN toroidal winder
Product Details
| Condition | New | Place of Origin | Fujian, China | |
| Brand Name | SanShine | Model Number | SS900B3 | |
| Voltage | AC220V or 110V | Power(W) | 450W | |
| Weight | gross weight 60Kgs | Dimension(L*W*H) | packing size L94*W49*H70cm | |
| Certification | Inner |
customs approved wood box
Product Description
The SS900B3 digital automatic toroid winding machine adopts CNC toroid controller, it is belt type winding shuttle.
Features of SS900B3 automatic toroid coil winding machine :
1. Collocate belt type winding head, and the interchangeable roller table with different size shuttle(winding magazine) for different dimensions coils and different wires, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for wire loading and winding.
4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
Specification of SS900B3 automatic toroid coil winding machine :
Copper wire diameter: 0.07~0.25mm
Min. Finished ID: 2.5mm (will be different by shuttle size and coil height. )
Finished OD range: 5~16mm
Max. Speed: 1200rpm
Spread motor: Stepping motor
Memory capacity: 999 steps
Power source: AC220V /110V +10%, 50/60 Hz
Dimension: L60x36x60(cm)
Net weight: 39Kgs
| Model | Universally matched shuttle model | Copper wire diameter range(mm) | Min. inside diameter of finished coil (mm) | Out side diameter of finished coil range (mm) | Height of finished coil range (mm) |
| SS900B2 | 1.6 1.8 2.0
| 0.07 ~0.25 | 2.5 | 5 ~ 16 | 3 ~8 |
SS900B3 | 1.8 2.0 2.5
| 0.07 ~0.25 | 2.5 | 5 ~16 | 3 ~8 |
| SS900B4 | 2.5 2.8 3.0 3.5 or customized | 0.15 ~0.8 | 3 | 5 ~60 | 3 ~25 |
| SS900S4 | 2.6 3.0 3.5 or customized | 0.05 ~0.3 | 4.5 | 5 ~60 | 3 ~25 |
| SS900B6 | 3.5 5.0 6.3 or customized | 0.3 ~1.2 | 6 | 10 ~80 | 5 ~45 |
| SS900S6 | 3.5 5.0 6.3 or customized | 0.08 ~0.35 | 7 | 10 ~80 | 5 ~45 |
| SS900B8 | 8 10 12 15 or customized | 0.35 ~1.5 | 12 | 20 ~150 | 8 ~80 |
| SS900S8 | 8 10 12 15 or customized | 0.3 ~0.6 | 15 | 20 ~150 | 8 ~80 |
How to select the best suited automatic toroid coil winding machine for your toroid coil,
Tell us your toroidal coil of data as below please:

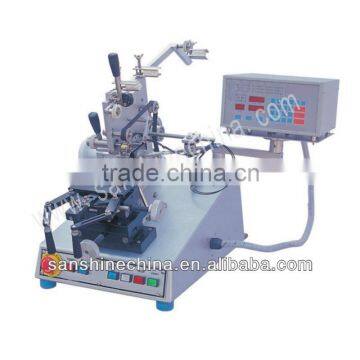

Automatic microminiature toroidal winding machine

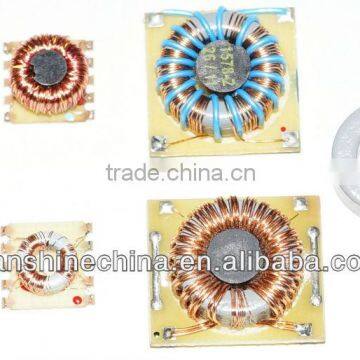

Winding coil Example of SS900B3 automatic toroid coil winding machine

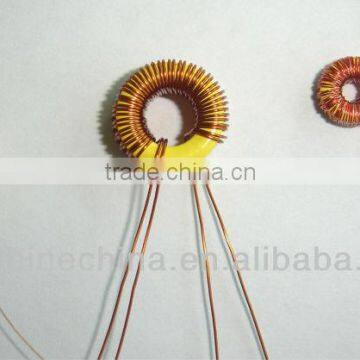

Coil sample of SS900B3 automatic toroid coil winding machine
CNC controller panel of SS900B3 automatic toroid coil winding machine
Buttons panel of of SS900B3 automatic toroid coil winding machine
Customs approved wood packing box
