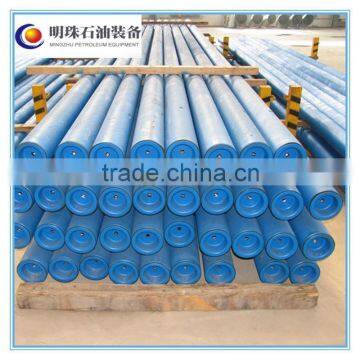

drill collar for oilwell

FOB Price

US$ 100 - 1,000 / Ton

10 Tons(Min. Order)

Port Qingdao Tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Shandong Mingzhu
Type	Other, Drill Collar, cylindrical, spiral, nonmagnetic	Machine Type	Drilling Tool
Certification	API	Material	Iron
Processing Type	Forging	Use	Well Drilling

Product Description

Product Description

Drill Collar Parameters

Nominal size	OD		ID		L	Bevel Diameter mm	Bending Strength Ratio
	OD		ID
	mm	in	mm	in
	mm	in	mm	in
NC31-41(2 7/8)IF	104.8	4 1/8	50.8	2	9150	100.4	2.43:1
NC35-47	120.7	4 3/4	50.8	2	9150	114.7	2.58:1
NC38-50(3 1/2)FH	127	5	57.2	2 1/4	9150	121	2.38:1
NC44-60	152.4	6	57.2	2 1/4	9150	144.5	2.49:1
NC44-60	152.4	6	71.4	2 13/16	9150/9450	144.5	2.84:1
NC44-62	158.8	6 1/4	57.2	2 1/4	9150/9450	149.2	2.91:1
NC46-62(4IF)	158.8	6 1/4	71.4	2 13/16	9150/9450	150	2.63:1
NC46-65(4IF)	165.1	6 1/2	57.2	2 1/4	9150/9450	154.8	2.76:1
NC46-65(4IF)	165.1	6 1/2	71.4	2 13/16	9150/9450	154.8	3.05:1
NC46-67(4IF)	171.4	6 3/4	57.2	2 1/4	9150/9450	159.5	3.18:1
NC50-67(4 1/2IF)	171.4	6 3/4	71.4	2 13/16	9150/9450	159.5	2.37:1
NC50-70(4 1/2IF)	177.8	7	57.2	2 1/4	9150/9450	164.7	2.54:1
NC50-70(4 1/2IF)	177.8	7	71.4	2 13/16	9150/9450	164.7	2.73:1
NC50-72(4 1/2IF)	184.2	7 1/4	71.4	2 13/16	9150/9450	169.5	3.12:1
NC56-77	196.8	7 3/4	71.4	2 13/16	9150/9450	185.3	2.70:1
NC56-80	203.2	8	71.4	2 13/16	9150/9450	190.1	3.02:1
6 5/8 REG	209.6	8 1/4	71.4	2 13/16	9150/9450	195.7	2.93
NC61-90	228.6	9	71.4	2 13/16	9150/9450	121.7	3.17:1

Drill Collar Flow Chart

Drill Collar Introduction

Drill collars are made with material AISI 4145H in accordance with API Spec 7-1. We supply slick drill collars and spiral drill collars; their sizes are from 3-1/8 to 11 inches.

Standard:API SPEC 7-1, API SPEC 7-2

Usage:

It is one of the most important elements of drill stem. It can provide drilling pressure to the bit and improve drill stem rigid.

Effectively control the trace element of the material which was selected with high quality and unique method. Adopt special intermediate frequency heat treatment method and advanced ultrasonic and magnetic particle inspection method and holding higher mechanical property. According to the shape and material drill collar was divided into three forms:

1.Type A(Cylindrical): To be made of ordinary alloy steel, with circular cross section inside and outside the drill collar.

2.Type B(Spiral): To be made of ordinary alloy steel, with spiral grooves on the outer surface of drill collar.

3.Type C(Nonmagnetic): To be made of low magnetic permeability alloy steel, with circular cross section inside and outside the drill collar.
