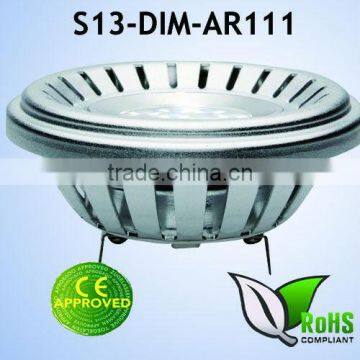

ar111 dimmable led spot light 12VDC?AC
- Shanghai
You May Like
-
AR111 dimmable COB G53 12W 1030lm
-
AR111 dimmable G53 12W 1030lm Nichia LED
-
15W COB AR111 GU10 base smart dimmable CE approved
-
AR111 LED COB G53 12VAC/DC 12W 1030lm CE approved
Quality Choice
-
AR111 LED COB G53 12VAC/DC 12W 1030lm CE approved CRI85/95
-
LED spot ES111 GU10 best Nichia LED 15W 1020LM smart dimmable CE approved
Product Details
| LED Light Source | LED | Warranty(Years) | 3 | |
| Input Voltage(V) | 12 | Lamp Power(W) | 11 | |
| Lamp Luminous Flux(lm) | 790 | Lamp Luminous Efficiency(lm/w) | 71.8 | |
| Color Temperature(CCT) | Other, 2400K,2700K,3000K,4000K,5000K | Working Temperature(℃) | -5, 35 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| Certification | CE, EMC | Base Type | AR111 | |
| Place of Origin | Shanghai, China | Brand Name | Winsun | |
| Model Number | S13-DIM-AR111 |
Product Description
ar111 dimmable led spot light 12VDC/AC
Product Features:
1, Adopting NICHIA LED, lumens of natural white up to 740lm, and of warm white up to 790lm.
2, Dimmable down to 15% with most of trailing edge dimmers, when in conjunction with recommended electronic transformers.
3, 0-100% dimmable with PWM or 0-10V dimmer.
4, Perfect anti-glare optical design feast of eyes.
5, Unique design for good heat elimination performance.
6, When using electronic transformer, the brightness of this lamp is more than 90% of the one with DC transformer.
7, Stamping aluminium with light weight and good heat elimination performance.
8, Long life time up to 50000hrs.
Specification:
Model Number | S13-DIM-AR111(WW) | S13-DIM-AR111(NW) |
Power Consumption | 11W | 11W |
LED | NICHIA | NICHIA |
Efficiency(lm/W) | 67lm/W | 72lm/W |
Color Temperature | 2700±200K, 3000±200K | 4000±200K ,5000±200K |
Beam Angle | 36° | 36° |
Input Voltage | 12VDC/AC | 12VDC/AC |
Working Temperature | -5°C~+35°C | -5°C~+35°C |
Base Type | G53 | G53 |
Dimension(mm) | A111*60 | A111*60 |
Net Weight | 163 g | 163 g |
Lifetime(hr) | 50000 | 50000 |
Packaging Information:
Packing: 40 PCS / carton | ||
Box | 115×115×89(mm) | 230 g |
Carton | 61×36×29.50(cm) | 10.10 kg |
Optical Performance:
Model Number | Beam Angle | Color Temperature | Light Intensity | Lumens | CRI |
S13-DIM-AR111(WW) | 36° | 3000±200K | 1390 | 740 | 85 |
S13-DIM-AR111(NW) | 36° | 5000±200K | 1500 | 790 | 85 |
