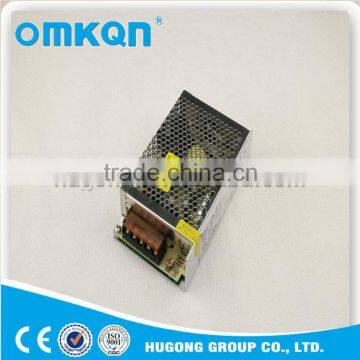

S-75-15 2016 best sale switching mode power supply new items in china market

FOB Price

USD $6.54 - $10.06 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Ningbo Shanghai Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	OMKQN
Model Number	S-75-15	Output Power	Other, 75W
Output Type	Single	Input Voltage	Other, 85-132VAC/170-264VAC
Output Voltage	15V	Output Frequency	47-63HZ
Output Current	5A

Product Description

Welcome,my friend! Glad to introduce our company Hugong Group to you.
Our company produce proximity Sensor, magnetic sensor,position sensor,
infrared sensor,photoelectric sensor,switching power supply and etc.
If you have any questions, please don't hesitate to ask me.

Product Description

The specification of our Newest Products.

Model	S-75-5	S-75-12	S-75-15	S-75-24
Specification	S-75-5	S-75-12	S-75-15	S-75-24
DC Output voltage	5V	12V	15V	24V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%
Rated output current	12A	6A	5A	3.2A
Output current range	0-12A	0-6.3A	0-5A	0-3.2A
Wave and noise(Note:3)	70mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	60W	75.6W	75W	76.8W
Efficiency	71%	78%	78%	82%
Adjustable range for DC voltage	+10,-5%	±10%	±10%	±10%
AC input voltage range	85-132VAC / 170-264VAC selected by switch 47-63Hz; 240-370VDC
Input current	1.6A/115V 0.8A/230V
AC Inrush current	Cold-start current 15A/115V 30A/230V
Leakage current	<0.5mA/240VAC
Overload	105% -150% Type: current limiting reset: auto recovery
Temperature Coefficient	±0.03%/℃ (0-50℃)
Start, rise, holding time	200ms,100ms,30ms
Shock resistance	10-500Hz, 2G 10min, / 1 cycle, period for 60 minutes each axis
Pressure resistance	Between input and output: 1.5KvAC Input and enclosure: 1.5KvAC Output and enclosure: 0.5KvAC
Isolation resistance	Between input and output, input and enclosure, Output and enclosure: 500VDC / 100MΩ
Temperature, humidity	-10 ℃ - + 60 ℃ (reference output characteristic diagram), 20% -90% RH
Storage temperature and humidity	-20℃-+85℃,10%-95%RH
Dimensions	1599738mm
Weight	0.5Kgs
Note	1. The parameter under the testing condition : 230vAC input ,rated load,25°C70% RH. Temperature.
	2. Tolerance the setting tolerance, circuit stability and load stability.(Note:5).
	3. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
	4. Inlet voltage stability test : the lowest voltage will be up to the highest voltage when the circuit overload.
	5. Load stability test: The load is from 0% to 100%.

Output voltage can be specified by the customer
