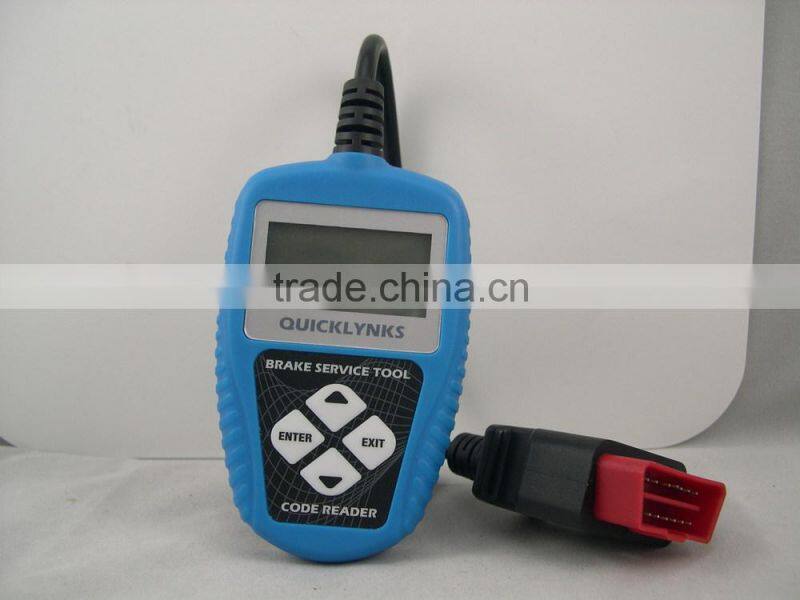

Model EP31 for All OBDII/EOBD Vehicle Auto Scan Tool Electronic Parking Brake Service Tool

Specifications

Electronic Parking Brake Tool---EP31

Descriptions:

EP31 diagnostic device reads and clears trouble codes. This device enables users to change brake fluid/bleeds brake system and has basic setting of rear brake calipers capabilities. Consumers can change brake discs and pads with ease. This is only on special vehicles and models such as Audi, Mercedes, Volkswagen, Volvo.

Features:

1. Deactivates/activates SBC (Sensortronic Brake Control);

2. Changes brake fluid/bleeds brake system;

3. Inspects brake system for air;

4. Opens/closes the brake pads;

5. Basic setting of rear brake calipers after changing brake discs & pads;

6. Retrieves ECU information;

7. Reads and clears EPB/SBC trouble codes;

8. Trouble code defintions are displayed on unit screen;

9. Up to 5 keypads for easy operation;

10. Large LCD display (128 x 64, backlight) with adjustable contrast;

11. Free upgrade on internet via a serial cable;

12. 1 year warranty.

Vehicles Coverage:

 The Electronic Parking Brake(EPB) Service Tool is specially designed to work with Audi A6/A8 (2004-on), Passat (2005-on), Mercedes E211/E219 (up to 2006), and Mercedes S221 (up to 2007) Volvo S80,(2007 and onwards), V70( 2008 and onwards), XC70 (2008 and onwards),XC60( 2010 and onwards),S60 (2011 and onwards)

Audi A6 [4F Chassis] Gas/Diesel - Model Years 2006-2009
Audi A8 [4C Chassis] Gas/Diesel - Model Years 2006-2009
Passat [3C Chassis] Gas/Diesel - Model Years 2005-2008
Mercedes SL [221/230] Gas/Diesel - Model Years 2003-2006
Mercedes E-Class [211/219] Gas/Diesel - Model Years 2003-2006

Volvo S80 Gas/Diesel - Model Years 07-11

Volvo V70 Gas/Diesel - Model Years 08-11

Volvo XC60 Gas/Diesel - Model Years 09-11

Volvo XC70 Gas/Diesel - Model Years 08-11

Volvo S60 Gas/Diesel - Model Years 11

Specifications:

Display: backlight, LCD

Operating temperature: 0 to 50C (32 to 122 F)
Storage temperature: -20 to 70C (-4 to 158 F)
Power: 8 to 16 Volts provided via vehicle battery

Dimensions:
Length                        Width                         Height
115mm (4.5")        72mm (2.8")             20mm (0.78")
Weight:200g(7.12oz)

Accessories Included:
1. User's Manual (Instructions on tool operations)
2. CD (Includes user's manual, DTCs lookup library and etc.)

3. USB cable ( use to update from the computer)
