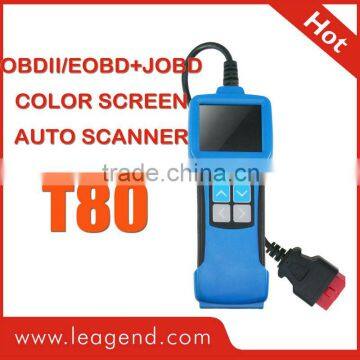

OBDII+JOBD Multi Language Auto Code Reader T80

Specifications

T80 2.8" Color LCD Diagnostic Code Reader

Features of product


1. Supports data stream or live engine data(near 300 live data);
2. Displays the vehicle's sensors status information;
3. Reads Generic Codes(P0, P2, P3, U0) and Manufacturer Specific Codes

(P1, P3, and U1);
4. Erases trouble codes and resets check engine lights;
5. Displays I/M readiness status;
6. Detects OBD2 freeze frame information;
7. Determines the malfunction indicator lamp(MIL) status;
8. Identifies and displays Pending Codes;
9. Retrieves VIN(Vehicle Identification No.) on 2002 and newer vehicles that

support mode 9;
10.Wider vehicle coverage with CAN protocol support;
11.Displays total # of codes retrieved, record all trouble code history.
12.Code definitions displayed on unit color-screen;
13.Unit upgradeable via flash programming;
14.Easy to use with friendly menu interface;
15.Large, 2.8”easy-to-read color LCD display;

16.Multilingual: English,
17. Four live data graph can be selected by the user;

18. Compliant with OBDII 16PIN TOYOTAHONDADAIHATSUMITSUBISHIMAZDANISSANSUZUKISUBARU

Specification:

Display: backlight, 2.8’’ color-screen display with contrast adjustment.
Operating temperature: 0 to 50C (32 to 122 F).
Storage temperature: -20 to 70C (-4 to 158 F).
Power: 8 to 18 Volts provided via vehicle power.

Accessories Included
1.       User's Manual  (Instructions on tool operations)
2.       CDs  (Includes user's manual, DTCs lookup library and etc.)
3.       USB Cable  (Works between OBD2 tool and Computer for update)
