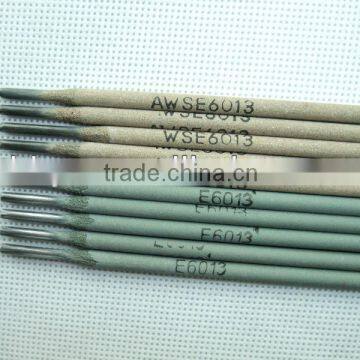

E6013 welding electrodes

Specifications

Specification Conformance

AWS E6013

Description

E6013 is the most popular mild steel welding rod with titania type coating. It is able to provide excellent welding performance and satisfactory weld can be obtained in all position welding.It is widely used in ordinary tensile strength mild steel structures especially suitable for intermittent welding to sheet steel and small work pieces as well as cosmetic welding with smooth and shiny appearance.

Application:

The E6013 welding electrodes are widely used on both AC and DC in all position and suitable for welding sheet metal structure made of low-carbon steel, such as ships, vehicles, building, and general machinery

Chemical Compossition of Deposited Metal (%)

Sizes, Length & Recommended Current (AC/DC)

Mechanical Properties of Deposited Metal

Available size:

2.0x300,2.5x300,2.5x350,3.2x350,4.0x400,4.0x450,5.0x400,5.0x450

Raw Material:Our products from raw materials through to finished product, quality control points are very tight and strict implementation of quality system requirements, have a track record to be investigated, our products have traceability.

Production:Shaping control. Production control process critical mass point. Mainly reflected in the quality of the detection points for each process. Form size detection strip, strip cleaning quality checks, observation roll greasy, powder flowability observed, the product powder filled sampling tests, sampling tests in diameter were observed lubricating powder layer around the detection, weight checks. To ensure product quality.

Production: Forming production process control

Our company strictly enforce national standards consumables batch inspection requirements

Packing: 5kg / box / shrink wrapped, 20kg (4boxes) / carton, 1,000kg (50cartons) / pallet

Uses: E6013 welding electrodes are widely used on both AC and DC in all position and suitable for welding sheet metal structure made of low-carbon steel, such as ships, vehicles, building, and general machinery

Shipping:Logistics convenience, the company itself has a large warehouse store stocking, the company is located 30 kilometers east of Shijiazhuang, close to Shi railway, 307 State Road and Shi Huang highway. 30 km from Shijiazhuang airport, close to the port of Tianjin Port, the goods brought into the output is very convenient.
