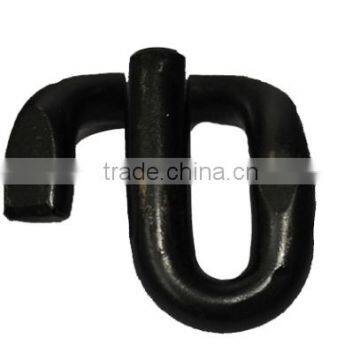

e clip / elastic rail clamp- railway fasteners

FOB Price

US$ 1.5 - 2.5 / Piece

5000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, rail clip	Material	60Si2MnA, 60Si2CrA, 55Si2Mn,38Si7, 60Si2Mn, 60Si2MnA
Dimensions (L x W x H) (mm)	can be customizd	Place of Origin	Hebei, China
Brand Name	yichen	Model Number	SKL1,SKL2,SKL3,SKL12,SKL14,SKL15

e clip / elastic rail clamp- railway fasteners

1. E type Railway fastening system:

E clip, Insulator, Shoulder, Rail pad.

2. Vossloh type Railway fastening system:

Tension clip: SKL14, SKL12, SKL1, SKL3

Spike, Plain washer, Plastic dowel, Guide Plate.

3. Nabla Railway fastening system :

Nabla clip, Insulator, double end screw spike, Special spring washer, Hex nut, Plainwasher.

4. KPO type Railway fastening system:

KPO clip, Hs bolt, Hex nut, Double coil spring washer, Screw spike, Base plate.

5. Railway Gauge Lock Clip

Railway Gauge Lock Clip, Screw Spike

6. Railway Deenik Clip

Deenik Clip, Shoulder, Insulator.

Specificaitons:

Brand	SUYU
Name	Deenik Clip / Railway Clip/ Rail clip / Elastic Rail clip / Tension clamp / Rail clamp
Type	e2055, e2009 e1817, e1809, e1609, PR401, PR309, PR601, SKL1, SKL3, SKL12, SKL14, Nabla clip, gauge lock clip
	Or according to customers’ Drawing or Sample.

Material	60Si2MnA	60Si2CrA	55Si2Mn	38Si7
Chemical composition(%)	C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03	C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03	C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03	C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness	For e clip: 44-48HRC
	For skl clip: 42-47HRC
Fatigue life	for Dia.18 is 3 millions cycles without breaking
	for Dia.20 is 5 millions cycles without breaking
Surface	plain (oiled), Oxide black, color painting
Standard refers	DIN17221, BS970, GB/T1222
