Home > Products > F.C.W. for Mild steel > CO2 Flux cored welding wire E71T-1

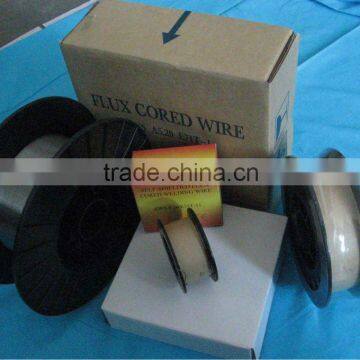

CO2 Flux cored welding wire E71T-1

FOB Price

USD $1 - $1.3 / Kilogram

1000 Kilograms(Min. Order)

Port TIANJIN port
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	YICHEN
Model Number	AWS A5.20 E71T-1	Material	Other, mild steel
Diameter	1.2MM,1.4MM,1.6MM	Melting Point	Standard
Weight	5KGS,15KGS	Application	Used for high efficiency welding in all positions.
Flux Content	normal

Product Description

Specifications

E71T-1 FLUX CORED WELDING WIRE
Its characteristic is High tenacity low hydrogen
Approved by ABS,DNV,CCS,GL,NK,BV,LR,RINA,KR

Flux Cored Welding Wire E71T-1

Features:

1) Suitable for use in such industries as:

a) Metallurgical industry

b) Bridge building

c) Building industry

d) Chemical industry

e) Shipping industry

2) Diameters:

1.2mm

3) Standards:

a) GB/T10045-2001

b) E501T-1

c) AWS A5.20 E71T-1

d) YFW C50DR

e) YC-YJ502(Q)

4)Packing:

One spool is vacuum packed by aluminum film and then one carton outside.

5) AWS A5.20E71T-1 is a kind of TI type flux cored wire for CO2 welding ,it has high cladding efficiency,good welding technical performance in all-position welding,apply for low carbon steel and 500MPA grade strength steel welding,such as ships,pressure vessels,mechanical equipments and bridges.

6)Chemical composition of deposited metal(%)

C:0.05,Mn:1.26,Si:0.31,S :0.009,P:0.011

7)Mechanical Properties of Deposited Metal:

Yield Point:510MPA, TensileStrength:590MPA,Elongation:28%

8)Shielding Gas:CO2

Reference current: (DC+)

Weld Position	1.2mm			1.6mm
Weld Position	Current range	Voltage range	CO2 Flow	Current range	Voltage range	CO2 Flow
Flat	120-320A	16-34V	15-25L/Min	180-400A	22-42V	15-25L/Min
Horizontal	120-280A	16-30V	15-25L/Min	180-400A	22-42V	15-25L/Min
Overhead	120-240A	16-28V	15-25L/Min			15-25L/Min
Vertical UP	120-240A	16-27V	15-25L/Min	180-260A	23-30V	15-25L/Min
Vertical Down	120-260A	16-29V	15-25L/Min	180-260A	23-30V	15-25L/Min
