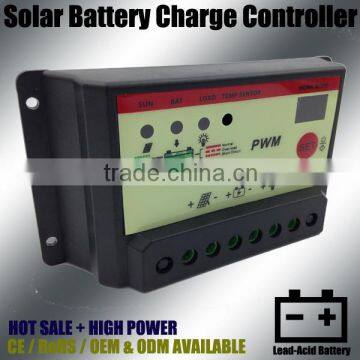

Solar Battery Controller, Battery Charging and Discharging controller 12V 24V 5A KTD1205

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

KTD-Series

PWM Solar charge controller

Features

Specification

Model	KTD1205	KTD1210	KTD1215	KTD1220
Rated charging current	5A	10A	15A	20A
Rated discharging current	5A	10A	15A	20A
Short-current protection	40A	40A	40A	40A
System voltage	12V/24V Auto adapt
Over current protection	<1.3 maintain for 60s <1.6 maintain for 5s >1.6 shut down immediately
Stand-by lost	<5mA
Charge voltage drop	≤0.26V
Discharge voltage drop	≤0.15V
Max solar panel votlage	21V
Operating temperature	-35°C to +55°C
Equalize charging voltage	14.8V
Bulk charging voltage	14.5V
Acceptance charging voltage	14.2V
Float charging	13.8V
Charge return voltage	13.2V
Discharge stop voltage	11.2V
Discharge return voltage	12.6V
Temperature compensation	N/C
Control mode	PWM( Pulse Width Modulation )
Maximum wire size	12AWG
Size/weight	133×70×35mm/150g

Attn:1.All voltage are for 12V system,pls time 2 if you are using 24V system

2.voltage tolerance 1%

3.Product specifications are subject to change without prior notice
