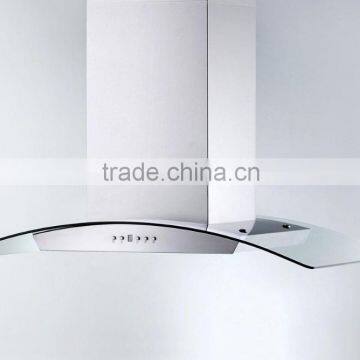

C -- Exhaust curved glass Island Range hood
- Ningbo
- T/T
You May Like
Product Details
| Type | Island | Exhaust Type | Combination | |
| Housing | Stainless Steel | Certification | CB, CE, EMC, GS, Other, CB, CE, EMC, GS, ETL | |
| Power (W) | 170 | Voltage (V) | 220 | |
| Place of Origin | Zhejiang, China | Brand Name | AISEN | |
| Model Number | GS9003 |
Product Description
Aisen Island Range hood----GS9003
| Material | SS304 / SS430 (0.7mm thickness) |
| Air Flow | 760m3/hr (450CFM) |
| Motor Input power(W) | 170W |
| Switch control | 3 Speed LED Switch |
| Filter | 5 layers aluminum filter |
| Glass | 6mm Tempered Glass |
| Noise(db) | ≤65 dbA |
| Air outlet | 150 mm |
| Chimney height | 495+495mm |
Drawing
Details:
(1)0.7mm thick #430 or #304 stainless steel raw material
Our stainless steel is more than 0.7mm,not like other factory use 0.6mm even less than 0.5mm stainless steel.
(2)170W Full sealed aluminum motor
(3)5 layers aluminum filter
Our aluminum filter is up to 5 layers not like some factory use 3 layers or even less 2 layers.
(4)Halogen lamps:20W *2
(5) 3 Speed LED Switch
(6) 6MM Tempered Glass
(7)495+495mm chimney height---two sections include lifting frame
(8)Packing ways:Plastic bag+foam+5 layers corrugated carton
(9)Aisen company photos
(10)Aisen certifcate--CE/CB/GS/ETL/SAA
(11)Loading information
| Hood Width | 600mm | 750mm | 900mm |
| GW/NW (KGS) | 21/17 | 23/21 | 32/28 |
| Packing size (cm) | 66*38*57 | 81*38*57 | 96*45*60 |
| 20'GP Loading | 201 PCS | 167 PCS | 110 PCS |
| 40'GP Loading | 420 PCS | 344 PCS | 223 PCS |
| 40'HQ Loading | 457 PCS | 372 PCS | 240 PCS |
| MOQ | 1*20GP | ||
(12)Installation for island hood
(13)Trouble Shooting
| Problem | Reason | Action |
| Can not function | No electrical supply | Check that the plug is connected. Check that the main switch is turned on. |
| Poor air flow | Aluminum grease filters clogged | Clean the filters and replace when dry. |
| Charcoal grease filters clogged | Replace charcoal filters with new sets. | |
| No air flow | Butterfly valve jammed | Contact technician. |
| Motor cuts after a few minutes | High temperature safely device activated | The hood is installed too near the cooking stove. The kitchen is not suffciently ventilated. |
| Strong cooking smell | Charcoal filters not installed | In re-circulating mode,charcoal filters must be installed. |
