High Quality Low Price Elaborate Process Perfect Service Chinese Ningbo Flexible18V120W Mono Solar Panel
- NINGBO
- T/T
You May Like
-
High Quality Low Price Elaborate Process Perfect Service Chinese Ningbo Flexible18V115W Mono Solar Panel
-
High Quality Low Price Elaborate Process Perfect Service Chinese Ningbo Flexible18V130W Mono Solar Panel
-
Poly Solar Cell 156*156mm
-
Solar Cell 125*82
-
Poly Solar Cell 156*31.2
-
Poly Solar Cell 156*60
Product Details
Place of Origin | Zhejiang, China | Brand Name | RING SOLAR | |
Model Number | RL-M120/18 | Material | Other, Monocrystalline Silicon, Monocrystalline Silicon | |
Size | 1245*676*35 | Number of Cells | 36 | |
Max. Power | 120W |
Product Description
1. Product Specification
Place of Origin |
| Zhejiang China (Mainland) |
Material |
| Mono-crystalline Silicon |
Brand Name |
| RING SOLAR |
Cell Size | mm | 156*156 |
Model Number |
| RL-M120/18 |
Module Power | W | 120W |
Module Dimension | mm | 1245*676*35 |
2. Electrical Parameter
Model Number |
| RL-M120/18 |
Rated Maximum Power | W | 120 |
Maximum Power Voltage | V | 18.0 |
Maximum Power Current | A | 6.67 |
Open Circuit Voltage | V | 22.2 |
Short Circuit Current | A | 7.10 |
Power Tolerance | % | ±3 |
Module Efficiency | % | 14.40 |
3. Mechanical Parameter
Module Dimension | mm | 1245*676*35 |
Packaging | pcs/carton | 2 |
Carton Volume | m3/carton | 0.176 |

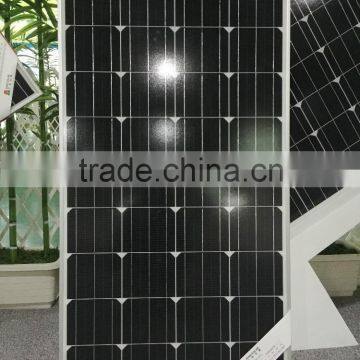

4. Picture & Drawing
5. Usage Limits
Operating temperature | -40°c--- + 85°c |
Maximum system voltage | 715V DC |
6. Temperature Coefficient
Current temperature coefficient | %/°C | 0.065±0.015 |
Voltage temperature coefficient | MV/°C | -(2.23±0.1) |
Power temperature coefficient | %/°C | -(0.5±0.05) |
7. Packaging & Delivery&Shipping
Packaging detail | CTN / wooden box | |
Delivery detail | Normally, about 15days after receive the down payment, meanwhile take the order quantity into consideration. | |
Shipping detail | by sea | Delivery from Shanghai or Ningbo seaport |
by air | Departure from Shanghai Pudong airport | |
by express | Post by DHL, EMS, UPS,TNT |
8. Guarantee Data
Guaranteed power output | 10 years:90% of its nominal power |
25 years: 80% of its nominal power | |
Warranty | 3 years for material warranty |
20 years for performance warranty | |
Standard conditions: AM1.5 Irradiation 1000W/m²; 25°c |
9. Production Lines
10. FAQ
1. Q: Are you a factory or trading company?
A: We are a factory, with 360 workers and 20000 m2 plant area.
2. Q: Where is your factory located?
A: Our factory is located in Ningbo, Zhejiang, China, near Shanghai. You are warmly welcomed to
visit us!
3. Q: Can the size be adjusted according to our request?
A: Yes, please tell us the detail of size and using, then we will design a specific production for you.
4. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
5. Q:Why choose your company?
A:(1)Since established in 2008, We have developed an experienced and mature company,
with stable and high efficiency production capacity.
(2)We provide 1 year warranty for all of our products.
(3)100% QC inspection before shipment.
(4)Best quality & best service with reasonable price.
11. Company Info.
Ningbo Ring Electronics Co.,Ltd, known as Ring Solar, is a hightech company specialized in researching, developing, manufacturing and selling photovoltaic products. Established in March 2008, Ring Solar now already has the annual module production capacity of more than 400MW.
Ring Solar applies advanced producing technology both domestic and abroad to provide poly and mono solar modules, solar accessories, on and off grid solar power application solutions for customers from many developed and developing countries in Europe, America, Asia and Africa.
12. Certificate
There are more solar panels for your reference: ( Mono&Poly )
Please contact me anytime, as long as you are interest in us.
