Specifications

Vehicle Surveillance System/8CH 3G&WIFI GPS Tracking HDD Mobile DVR for double-decker buses

   TESWELL 8CH HDD Mobile DVR is designed for large buses, like BRT bus,double-decker buses, Articulated buses. TS 8CH HDD Mobile DVR offer advance H.264 Main Profile Compression, 8CH video and audio recording, metal extrusion housing, 1* 2TB HDD/SSD, 1*32G SDHC card, delay alarm recording, GPS optional, Google map tracking, anti-vibration,two levels user management. The biggest advantage of 3G MDVR is to offer on-line video fleet management. Of course, it can offer immediate accident alarm alert by sound, SMS, email. With Driver Button, CMS can timely find what's wrong. Our CMS support 3,000 vehicles of fleet management, from video surveillance, voice talk, remote backup, remote access, remote download, logs management and others

Key Features include:

u H.264 video compression for high quality low storage needs and longer recording

u D1 definition (720*576, NTSC, 704*576, PAL), QCIF/CIF/HD1selectable.

u 8CH video and 4CH audio input, 1 video / audio output

u Ultra compact extruded aluminum housing, light and vibration resistant

u Embedded Linux operating system & On Screen Display menu

u 64G SDHC card at most

u PC-based FAT 32 file system

u Frame Rate per channel: (PAL) 1-25fps ; (NTSC) 1-30FPS

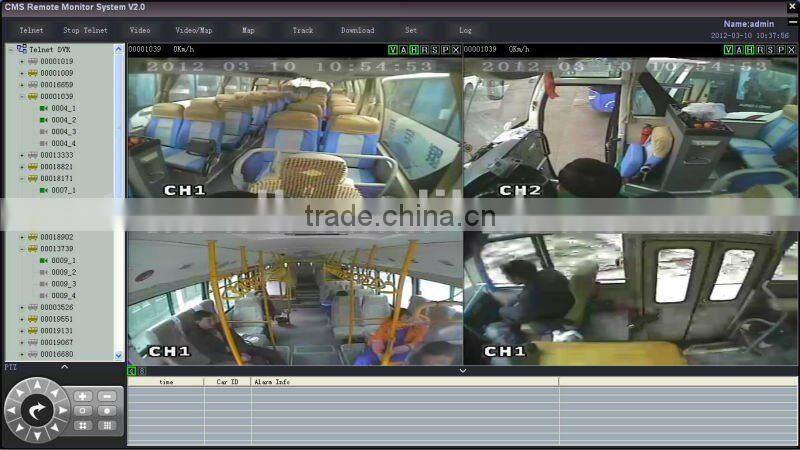

u Live video & audio surveillance and tracking in Google Map

u Support WCDMA/EV-DO 3G Wireless Network

u Support for Wi-Fi for wireless transmission (optional)

u 8alarm inputs with selectable pre-alarm and post-alarm recording

u Interior, 3-axis, inertia trigger of video-matched motion events (for accidents)

u Support for RFID, Police Detection Radar, Pan Tilt Zoom (PTZ), etc.

u CMS support for video management, Live Tracking large fleet management, etc.

u Easy to use PC-based MDVR Player for playback and AVI conversion

u Video event search software allows intelligent searching of video based on event

u 8-48V DC input adaptive, 12 DC output for cameras

u Broad temperature operating range: -20°C ~ +60°C

Applications:

• Bus & Coaches
• Truck and Trailers
• Taxi’s & Cabs
• Police & Emergency Vehicles
• Cash in Transit Vehicles
• Remote Site Surveillance
• Railways

Additional functions(optional):  A: GPS ;     B: 3G;   C: Pin Aviation Connector;   D: RS485&RS232;

                                     E: Lan Port; F: SD Card and HDD Storage;    G: G-Sensor ; k: CAN-BUS

                                     H: Intercom

Call or Email us for further details!
