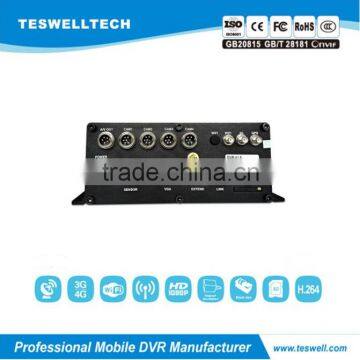

4CH H.264 HDD Hard Disk GPS 3G 4G Mobile DVR Vehicle Monitoring

Items

Device parameters

Performance index

Name

Product Name

4 Channel AHD 720P Mobile DVR( 2TB HDD Storage)

System

Operation System

Linux

Operation Interface

Graphical Interfaces, Chinese/English optional

File System

Proprietary Format

System Privileges

User Password

Video

Video Input

4 CH AHD input

VGA Output

1 channel 1920*1080/ 1280*720

CVBS output

1ch  outpout: 1.0Vp-p,75Ω. Composite video signal

Video Display

1 Or 4Screen Display

Video standard

PAL: 25 FPS   NTSC 30FPS

System Resources

PAL: 100FPS

NTSC: 120FPS

Audio

Audio Input

4 Channels

Audio Output

1 Channel

Record format

Synchronized video & audio recording

Audio compression

G711U

Digital Processing & Storage

Image Compression

H.264 Fixed Code Stream

Image Format

4*720P   1280*720

Video Stream

1.0M-6.0Mbit/s

Playback Resolution

4*720p

Audio Bit-rate

4KByte / s / channel

Audio Taking Up Of Hard Disk

85-900MByte / hour / channel

HDD Storage

Support Max 2TB

Image Quality

Eight Grades to Choose

Alarm

Alarm input

8 Channels Independent Input. High Voltage Trigger

Alarm out

2 Channels Independent output

Move Detect

available

USB Interface

Host Access

Can Expand One For USB Disk Backup

GPS Interface

GPS

can show the driving route on the GOOGLE MAP.

Extend Interface

RS232

Extensible, it is convenient to connect with other vehicle equipment

RS485

Extensible, it is convenient to connect with other vehicle equipment and PTZ Camera

Intercom

support

G-Sensor

support

Others

Power Consumption

DC8-36V  5%   ≤12W

Working Temperature

 -20℃ ~ +85℃  ≤80%

Clock

Built-In Clock, Calendar

Packaging

Product Size

 245(L)*190(W)*71(H)mm(with Holder)

Product Weight

3.0KG(without HDD)

Package

Each In a Box, 5 set/Canton

Box Size

245(L)*190(W)* 71(H)mm

Carton Size

650(L)*375(W)* 255(H)mm

Carton Weight

14kgs/ 18kgs (without HDD)
