Smart Battery Isolator Switch Relay 12V 150A WM BSM020 Quality Choice
- 500 Piece / Pieces per Month
- Ningbo Shanghai
- T/T Credit Card
You May Like
-
Smart Battery Isolator Switch Relay 12V 400A WM BSM030
-
Current overload protector (Circuit Breaker) 10A to 50A WM CB121
-
Current overload protector (Circuit Breaker) 50A to 150A WM CB122
-
Current overload protector (Circuit Breaker) 5A to 30A WM CB123
-
Automotive relay 12V DC Contactor 200A WM812
-
DC 48V Contactor Hight Voltage 100A 200A WM816
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SM | |
| Model Number | BSM020 | Max. Current | 150A | |
| Max. Voltage | 12V/24v |
Product Description
P1 Features
1. Prevent loads on auxiliary battery from draining the main battery
2. Works with all alternator types, No diode efficiency lossed
3. Reduces charging system workload by not connecting auxiliary battery until primary battery is charged to 13.2V
4. Lower strain on expensive charging components extends their useful life
5. Allows bi-directional charging from alternator of from shore/campground power charger/converter when available
6. Simple installation - Connect to main battery, auxiliary battery, and ground
7. LED status indicator, Smaller,lighter,less heat generated
P2 Ordering Information
WM BSM020 | - 150 | - 12 | -XXX |
|
|
|
1 | 2 | 3 | 4 |
|
|
|
1 Part number:WM BSM020 2 Ampere Continue: 150:150A 3 Input rated Voltage(VDC):12: 12V;24:24V 4 Time parameter can be set according to customer's special needs | ||||||
P3 Performance parameter
|
| Min | Typical | Max | Operate Time | Release Time |
Normal input voltage | 12VDC | 9VDC |
| 16VDC |
|
|
24VDC | 18VDC |
| 32VDC | |||
Connect voltage(NF*) | 12VDC |
| ≥13.2V |
| 10 s |
|
24VDC |
| ≥26.4V |
| 10 s |
| |
Disconnect voltage(NF**) | 12VDC |
| ≤12.7V |
|
| 10 s |
24VDC |
| ≤25.4V |
|
| 10 s | |
Emergency start | 12VDC |
|
|
| 0 s | 10s(U<12.7V) |
24VDC |
|
|
| 0 s | 10s(U<25.4V) | |
Continuous current |
| 200A |
|
| ||
Quiescent current |
| 5mA | 8mA | Relay off,start signal input open or grounded | ||
Battery terminals | Specification | Torque | ||||
|
| |||||
P4 Operation condition
Operating temperature range | -40℃ ~ +85℃ | Operating condition |
Ingress protection | IP65 | Per IEC |
Humidity | 0 to 90% RH |
|
Vibration resistance | 10~500Hz | per SAE J1455 |
Shock |
| per SAE J1455 |
Thermal shock |
| per SAE J1455 |
EMI/RF |
| per SAE J1455 & SAE J1113 |
|
|
|

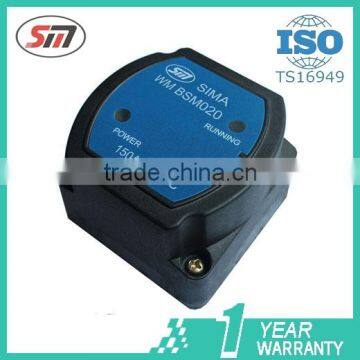

P5 Smart Battery Isolator Photo
P6 Layout (Bottom views, Unit: mm)
Dimensions / Wiring diagram (Bottom views) |
Note: the anode feet of the isolator can answer the main battery or secondary battery, their position can replace each other.
|
P7 Packing
1 pcs / inner box, 50 pcs / carton
P8 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P9 Our Factory
P10 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P11 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
