Product Details

Place of Origin	Hebei, China	Material	Stainless Steel Wire
Type	Weave Wire Mesh	Application	Other, petroleum, chemical industry, mine
Weave Style	Plain Weave	Wire Diameter	0.04--1.6mm
Technique	Woven	Model Number	304,304l,316,316l
Brand Name	BULL

Product Description

Specifications

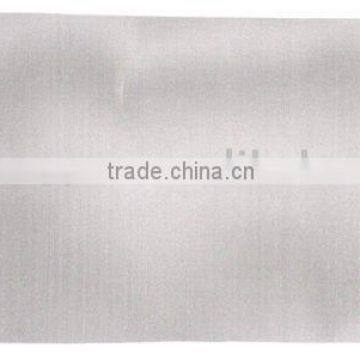

Ss wire mesh 304L
Weaving pattern:plain or twill woven Material:304;304L;316;316L,etc
Custom orders acceptable

SS wire mesh 304l

Stainless Steel Wire Mesh is classified into:plain woven and

Twill Weave ss Wire Mesh

Plain weave is the most commonly used weave. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.

Twill Weave Stainless Steel Wire Mesh is made by each weft wire passing alternately over two, and then under two successive warp wires and each warp wire passing alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.

materials:304,304L,316,316L,etc

Uses:Stainless steel wire mesh and stainless steel wire cloth products are widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making,electronic, metallurgy etc.

Special size and specification are available according to customers' requirement.

Specification List of Stainless Steel Wire Mesh
Mesh/Inch	Wire Dia (mm)	Aperture (mm)	Mesh/Inch	Wire Dia (mm)	Aperture (mm)
2	1.60	11.10	80	0.13	0.187
3	1.60	6.87	100/90	0.10	0.167
4	1.60	4.75	100	0.10	0.154
5	1.00	4.08	100	0.11	0.144
6	0.90	3.33	120	0.09	0.122
8	0.90	2.28	120	0.08	0.132
8	0.70	2.47	150	0.065	0.104
10	0.50	2.04	200	0.05	0.077
12	0.50	1.62	200	0.04	0.084
14	0.50	0.50	250	0.04	0.062
16	0.35	1.24	250	0.035	0.067
18	0.28	1.13	250	0.03	0.072
20	0.35	0.92	300	0.04	0.045
24	0.35	0.71	300	0.03	0.055
28	0.35	0.56	325	0.035	0.043
30	0.28	0.57	325	0.028	0.050
40	0.22	0.42	400	0.030	0.034
50	0.18	0.33	400	0.023	0.042
60	0.16	0.26	508	0.025	0.025
70	0.14	0.223
