High Quality Glass Grinding and Polishing Machine For Small Business
- Tinajin Port
- T/T
You May Like
-
New Technology Glass Grinding and Polishing Machine For Small Business
-
Industrial Supplier Glass Grinding and Polishing Machine For Small Business
-
Lasted Technology Glass Grinding and Polishing Machine For Small Business
-
China New Product Glass Grinding and Polishing Machine For Small Business
-
New Product Glass Grinding and Polishing Machine
-
Supper Thickness Glass Grinding and Polishing Machine
Product Details
| Condition | New | Machine Type | Glass Edging Machine | |
| Production Capacity | 0.8-5.5m/min | Place of Origin | Beijing, China | |
| Brand Name | SAGERTEC | Model Number | SZ-YB7 | |
| Voltage | 380V 50HZ 3 Phase | Power(W) | 15.93kw | |
| Dimension(L*W*H) | 6600*1400*2500mm | Weight | 1500kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

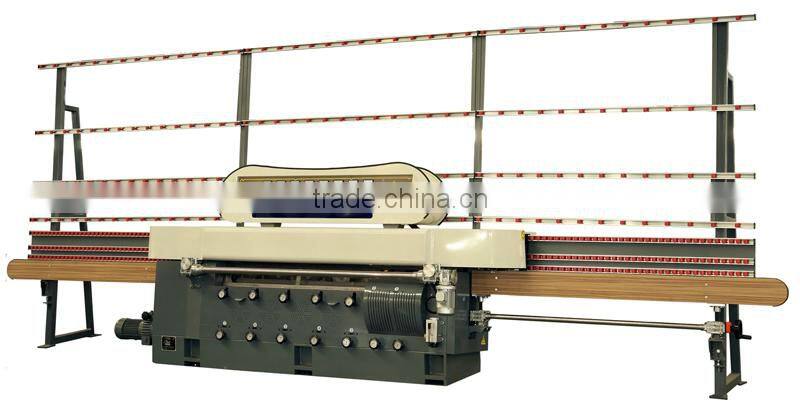

High Quality Glass Grinding and Polishing Machine For Small Business
Specification
fessional for pencil edge , OG edge and 3G edge.Rough grinding, fine grinding and polishing can be finished by one pass,
the processed edge as shiny &bright as glass surface

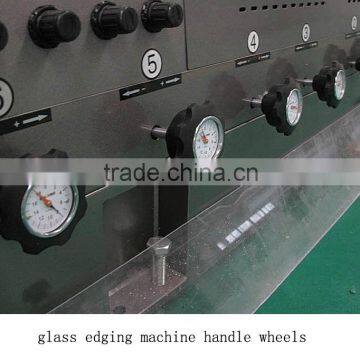

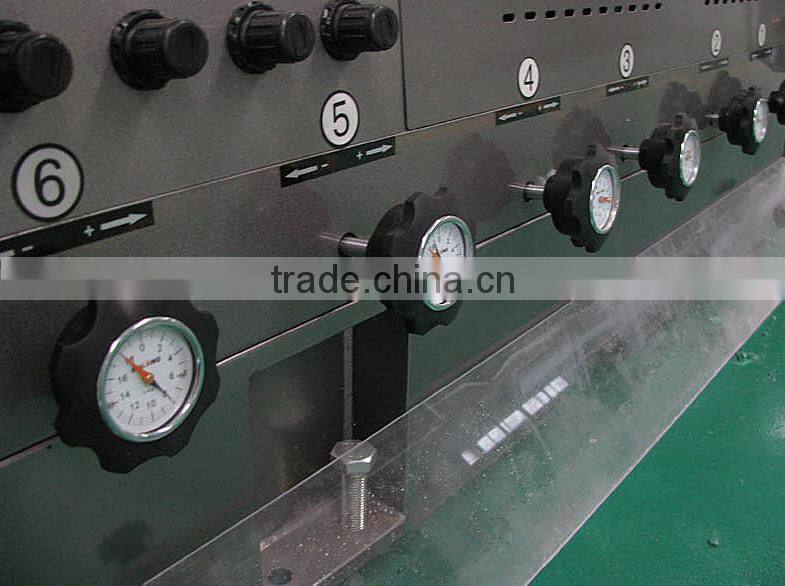

2. The input & output adopt Synchronous rise/lower, to make grinding-volume adjustment easy&convenient.

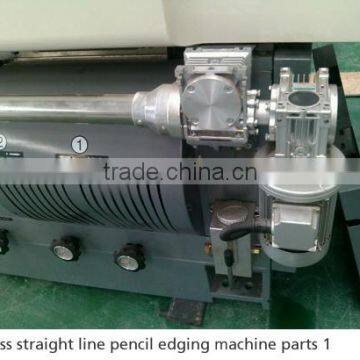

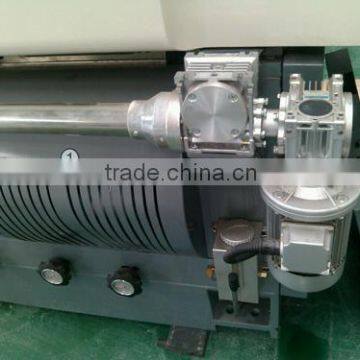

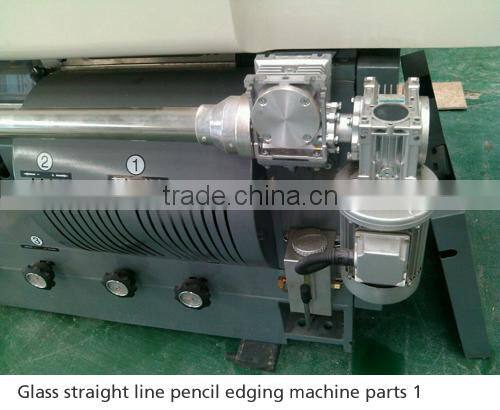

3.The input & output transmission adopts timing belts, which improve the stability of transmission.

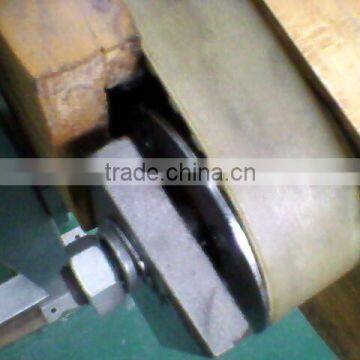

4.Adopt Pneumatic polishing, so the processed edges as shinny as glass surface.

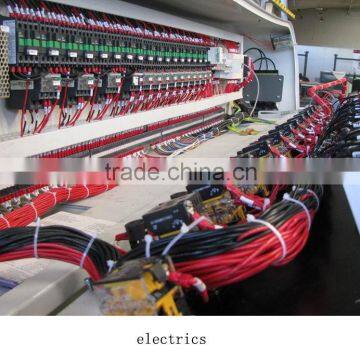

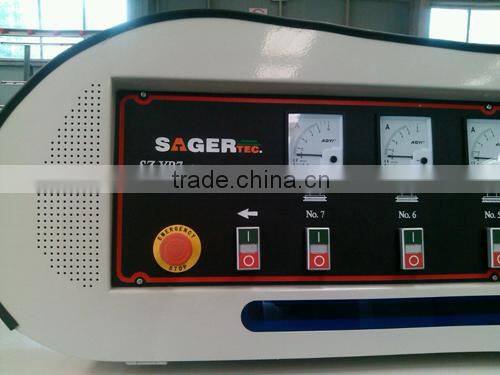

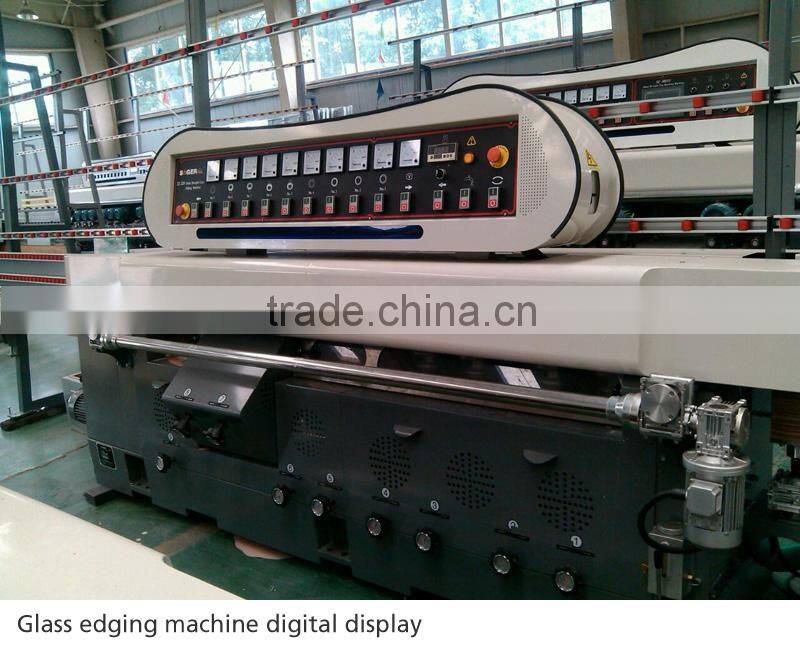

5.PLC control, all the parameter are set by touch screen.
6.Variable frequency motor for driving, the speed can be adjusted on touch screen directly.

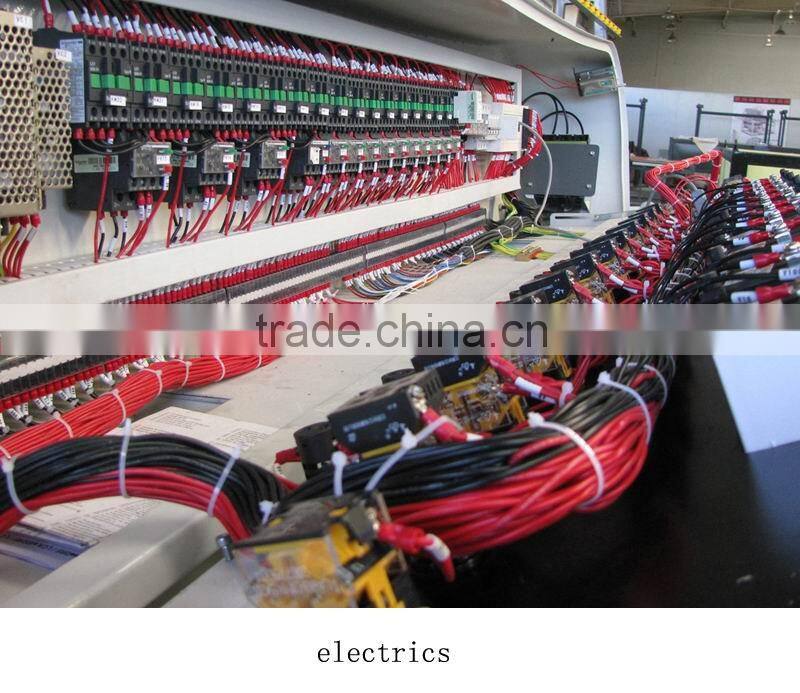

7. ABB spindles, Schneider electronic, stainless steel water tank, independent polishing tank with automatic stirre for cerium.
8.The machine base, beams and base of spindle are made of excellent cast iron, all the cast and steel parts are treated
by tempering, ensure the best performance and stability of machines in different area of all over the world.
Parameter
Model | Min.Size | Thickness | Speed | Weight | Power | Spindle | Dimension |
SZ-YB4 | 80*80mm | 3-19mm | 1.2-6m/min | 2000kg | 10.55kw | 7 | 6600*1400*2500mm |
SZ-YB7 | 80*80mm | 3-19mm | 0.8-5.5m/min | 2800kg | 15.93kw | 4 | 5800*1400*2500mm |
