Spray Booth for Car Baking and Painting
- Qingdao
- T/T
You May Like
-
Auto Car Baking Oven/car Spray Booth/car Painting and Baking Booth
-
Auto Electric Method Spray Booth for Car Baking
-
High Quality Electric Car Baking Room With CE Approved
-
Cheap Automotive Car Baking Booth
-
Economic Industry Flexible Spray Painting Booth for Bus/Truck
-
BH Luxury Type Fantastic Spray Booth For Car and Furniture With CE Approved Quality Choice
Product Details
| Power | 13 kw/ optional | External Size | 7000*5500*4000(L*W*H) | |
| Internal Size | 6900*3900*2800(L*W*H) | Voltage | 380v/3phase/50hz | |
| Certification | CE | Disc Dia. | None | |
| No Load Speed | 0.30 M/s | Place of Origin | Shandong, China | |
| Brand Name | BAIHUI | Model Number | BHS 9800 |
Product Description
Spray Booth for Car Baking and Painting
External Size(mm) | 7000x5450x4000 | Front Door:(mm) | 3200(w)x2800(h) | |
Internal Size(mm) | 6900x3900x2800 | Total Power:(kw) | 13 | |

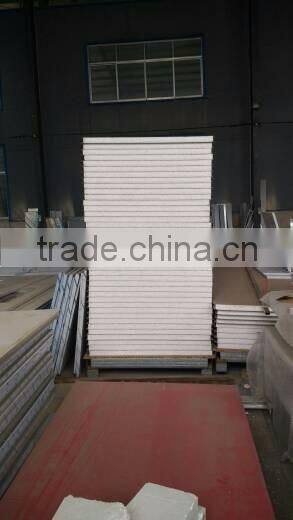

Cabin System | Wallboard | Fire-retardant Sandwich style EPS Rock wool panel, thickness 75mm. The hot dip galvanizing Colorful steel skin board servicelife can reach 25 years without rusting. Thickness 0.476mm. It keeps high insulation performance with a low weight. Four colors for your choice,blue,red,orange and white. High quality galvanized steel roof panel. | ||

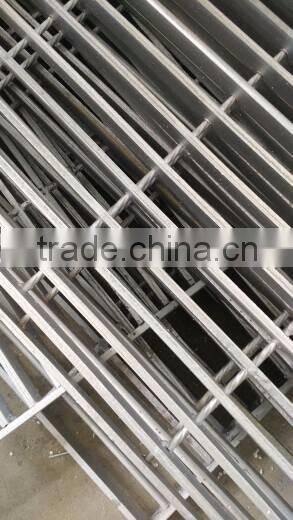

Basement | Galvanized steel sheet and square steel pipe construction. Full range grids, anti-rust and strong, the bearing capacity of driving grids up to 1000 kg; Basement frame is assembly formed by corrosion-resistant steel square tube, good overall performance, anti-heavy and strong, not deformed. | |||

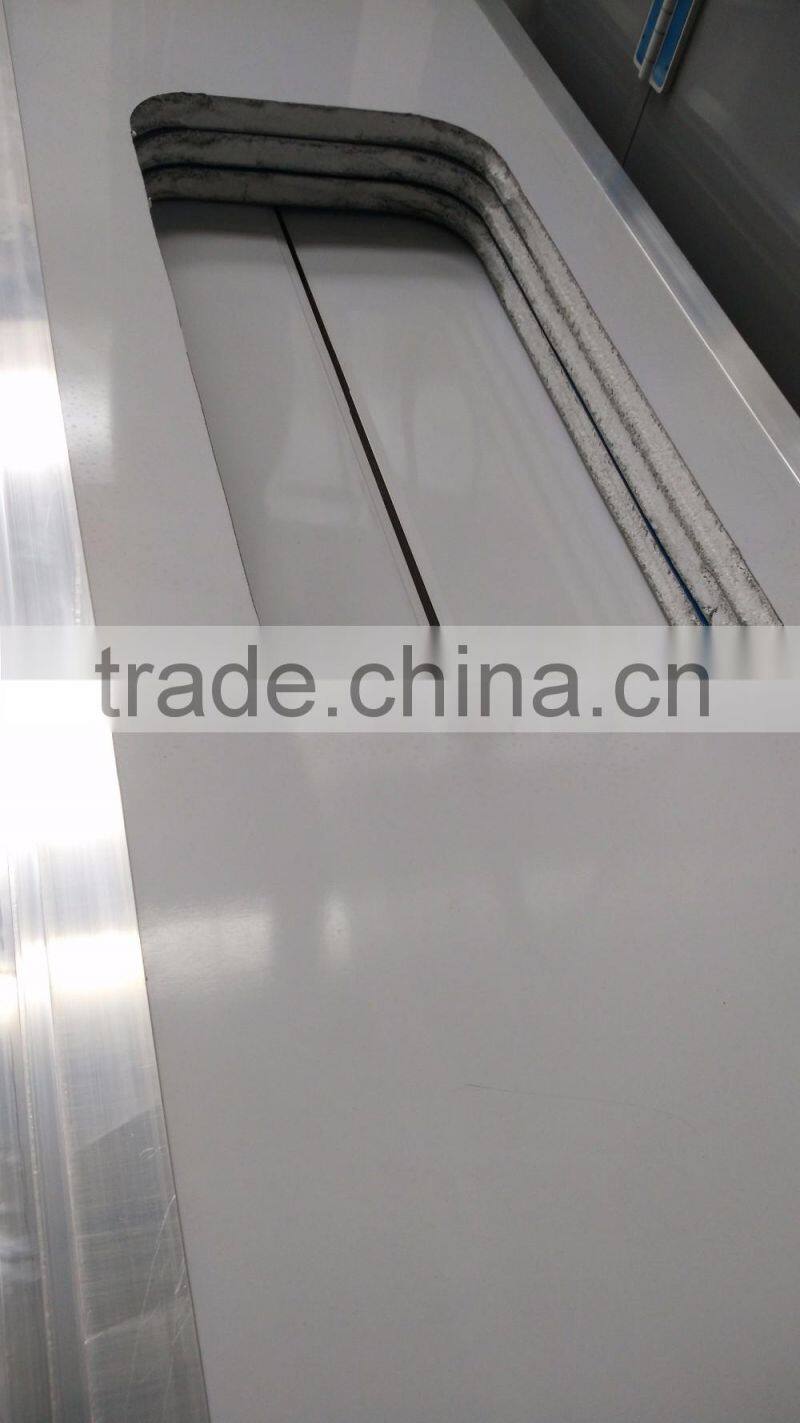

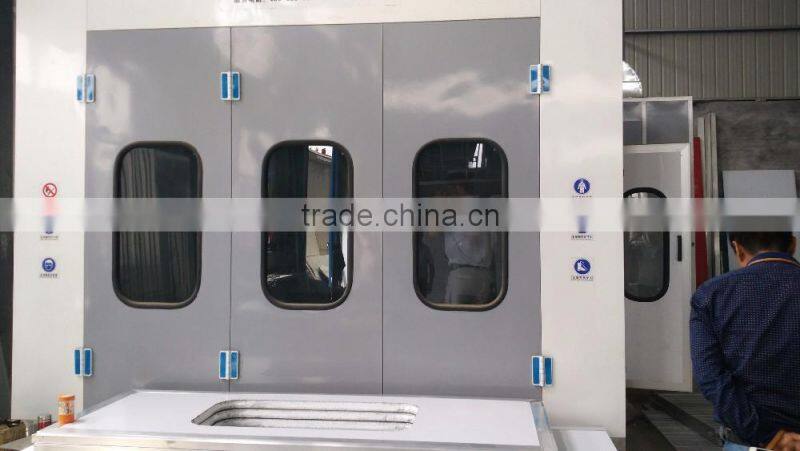

Door | 3 pieces of luxury front doors. Size: 3200(w)*2800(h). 1 piece of emergency door,size 1500*2100. | |||
Air Circulation System | Intake Fan | 1x7.5kw direct drive turbo fan, Air Flow is 25000m3/h. | ||
Exhaust fan | 1x5.5kw direct drive turbo fan, Air Flow is 18000 m3/h. | |||
Air Pipe | Made of Galvanized steel sheet consisted of 4 pieces of straight pipe 750*750*1000, and 1piece of elbow. | |||
Nozzles | 60 units ceiling nozzles with 3 sets of centrifugal fan3×1.5KW. Air flow is 15000 m3/h,special for water based paint spraying and drying. | |||
Air circulation | Full inner air circulation, particularly rapid heating, insulation ability, energy, superior performance in cold environment. | |||
Air Flow | Air Flow: 30000m3/h. Air Speed: 0.3-0.5m/s. | |||
Heating System | Burner | Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min (20-60°C). Max. Temperature at 80°C. Fuel consumption is 4-5kg/ vehicle. | ||
Heat Ex-changer | Made of stainless steel. The heat exchange rate reaches 85%. | |||

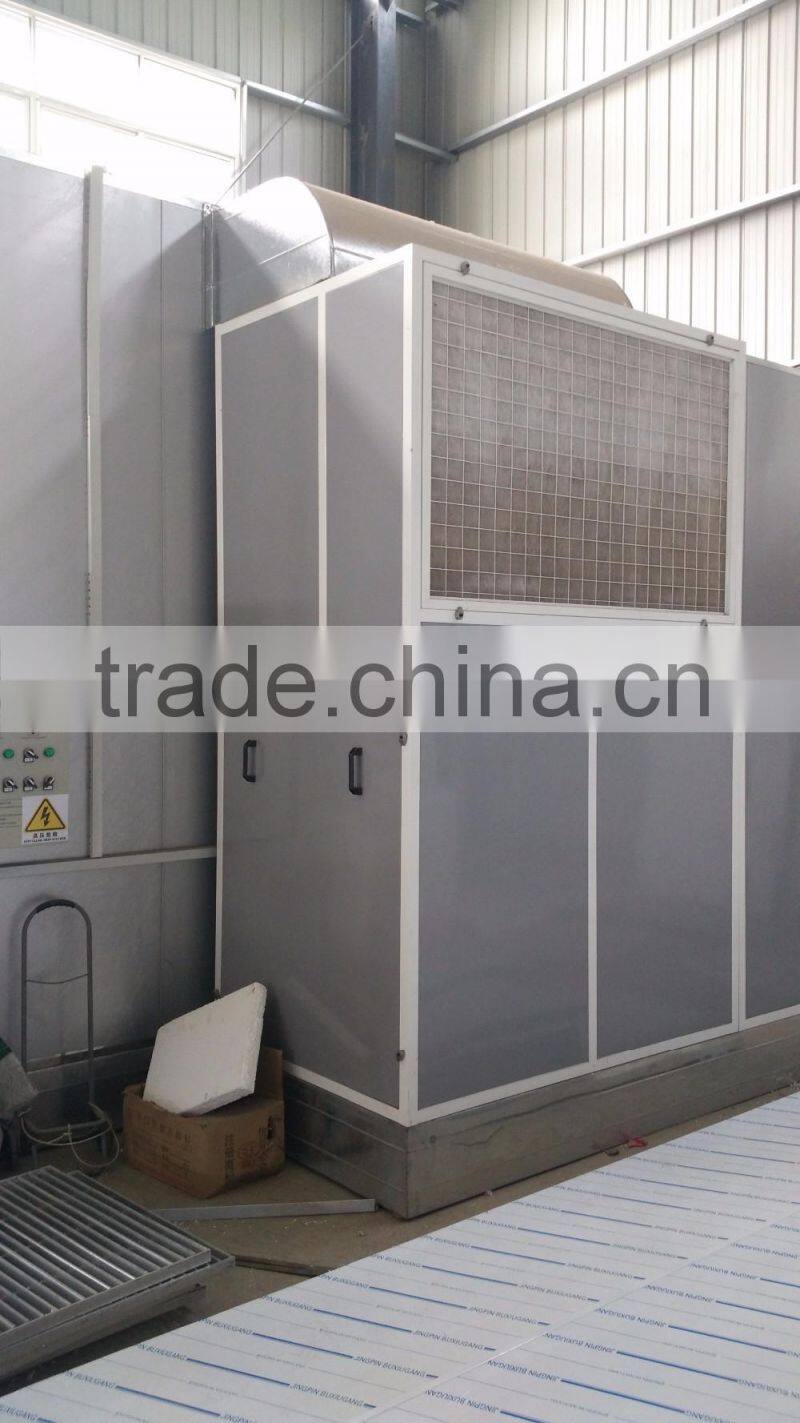

Air makeup cabinet | The surface plate is galvanized plate, rust force strong, beautiful; The frame is made of high-quality hot-dip galvanized sheet repression,difficult to wear,anti-rust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity. | |||
Fume pipe | Fume pipe made of galvanized pipe, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 ° elbows. | |||

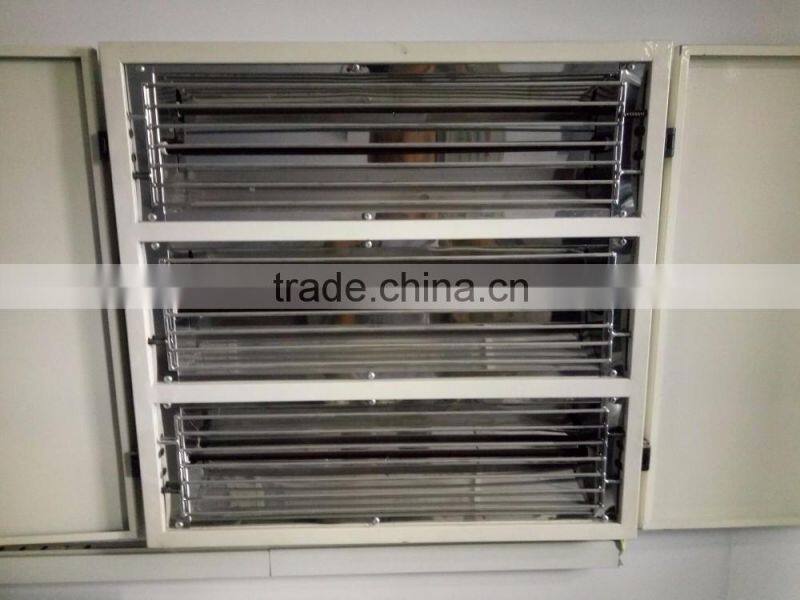

Lighting System | Light tube | Ceiling light has 32 pieces of 36w lamps. Side light has 16 pieces LED 36w Lamps, 900 Lux. The grade of lighting box’s dust proof and waterproof reach IP54 grade. | ||
Light box | Welded galvanized plate, by the spray treatment, stiffness, repeated disassemble easy deformation, surface brightness, color uniformity,heat is not easy to change color. | |||
Filtering System | Primary filter | Dual filtering structure. The primary can capture granules larger than 10μm. | ||
Ceiling filter | Ceiling filter capture granules bigger than 5μm. The air cleanliness in working environment can reaches 99%. | |||
Exhaust filter | Special M pattern active carbon pocket filter system. | |||
Control System | Touch Screen Controller | Microcomputer touch screen control, the system is composed of PLC, Converter, Air pressure transducer and Snyder electronic components. Automation Intelligent control which can save 25% energy than normal system. | ||
Damper | Air damper,efficient and durable. | |||

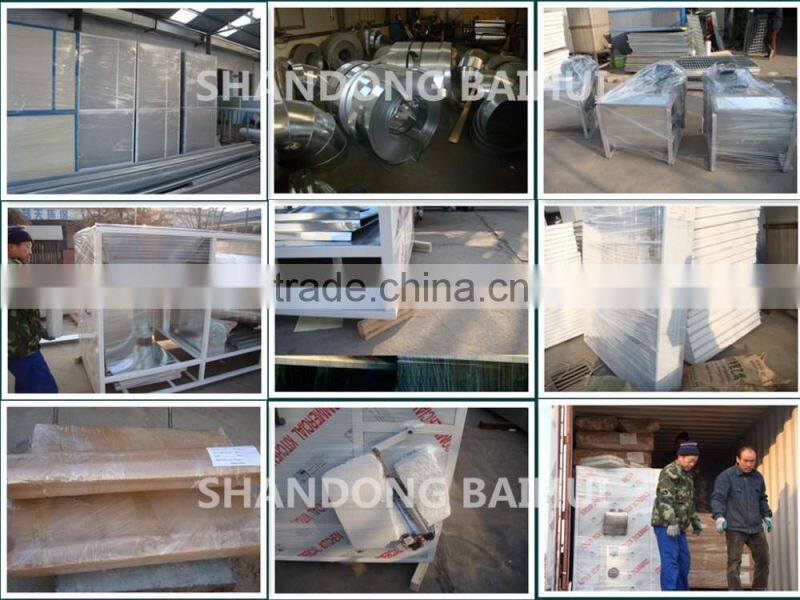

Generally, we use thick film covered on big parts, small and medium size parts in plywood boxes or on plywood pallets, load together into container.
According to the characteristics of products, transportation, environmental factors .etc, using foam, cartons, wooden case and other professional packaging, through heavy card, container, bulk carrier and other transportation tools . put the goods safe and timely to the customer.
Certification
• Q : Do you have after-sale service?
A : Yes, we have perfect after-sale service with engineers.
• Q: What standards are you carrying out for your products?
A: We produce according to the ISO9001 and ISO14001 rules, and we passed the CE certification.
• Q: Do you have the right to export?
A: Yes, we registered in the Customs and gained the right to export by ourselves.

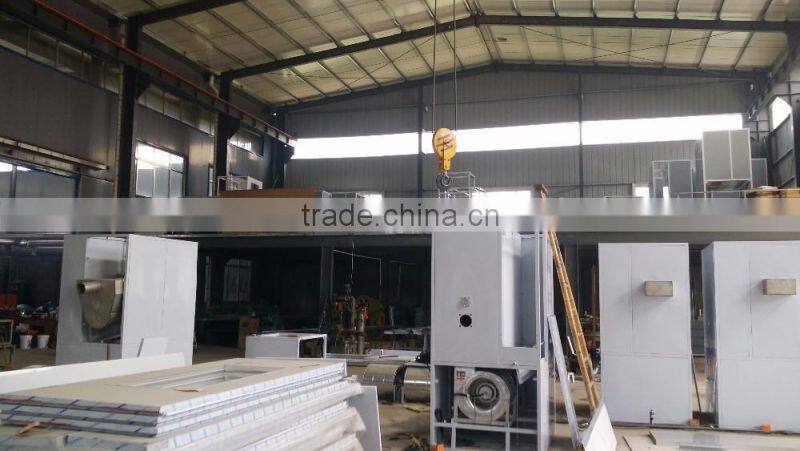

• Q : Where is your factory?
A: We are near Jinan Airport, you are welcome to be Jinan Airport and then we will arrange car to pick you up there. Sincerely welcome here to investigate our factory in person.
• Q : How about your company ?
A: Our company is one of the biggest manufacturer of spray booth in china , we have exported to more than 20 counries and regions , and received a high reputation from overseas and domestic.
We are sincerely look forward to cooperating with you ! For more details about spray booth ,welcome to contact us in any time ! We will fully committed to provide the best quality products and services.
--------------------------------------------------------------------------------------
Woods Xu ( Export Manager)
Shandong Baihui International Trade Co.,Ltd. |
Address: D327/328 College Students Pioneer Park, Zouping City, Shandong, China Post code:256200
Mobile&Whatsapp: 86-15854326355 | Email:sales(at)
