FRS- FFU Fan Filter Unit for Clean Room (FFU)

FOB Price

Negotiable / Set

5 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Fan Filter Unit
1solid and durable
2,Long working time ,low noise
3,effiency :99.99%&0.3um

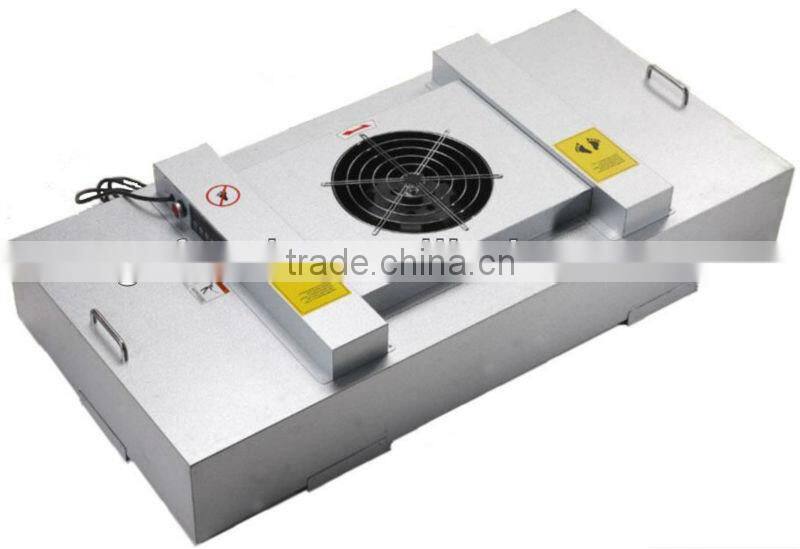

FRS- FFU Fan Filter Unit for clean room (FFU)

Application

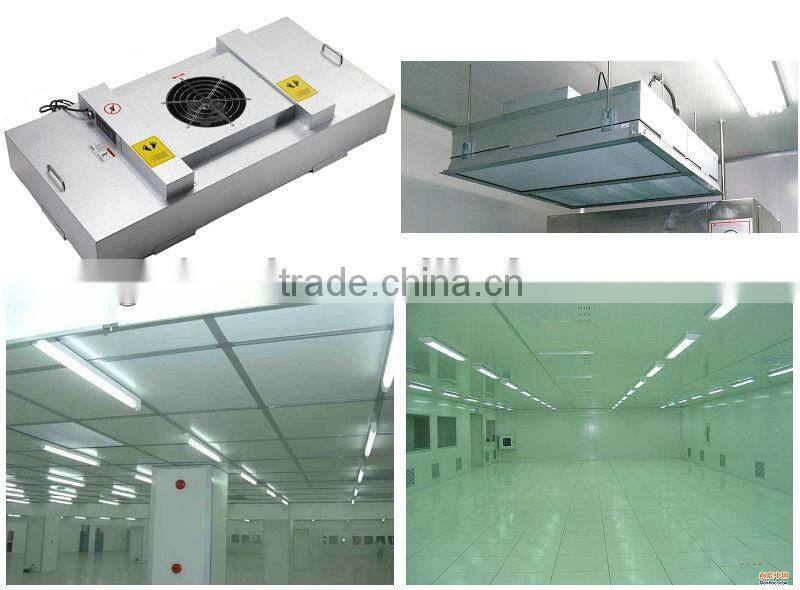

FFU is widely used clean room ,clean work station ,clean production lin ect .

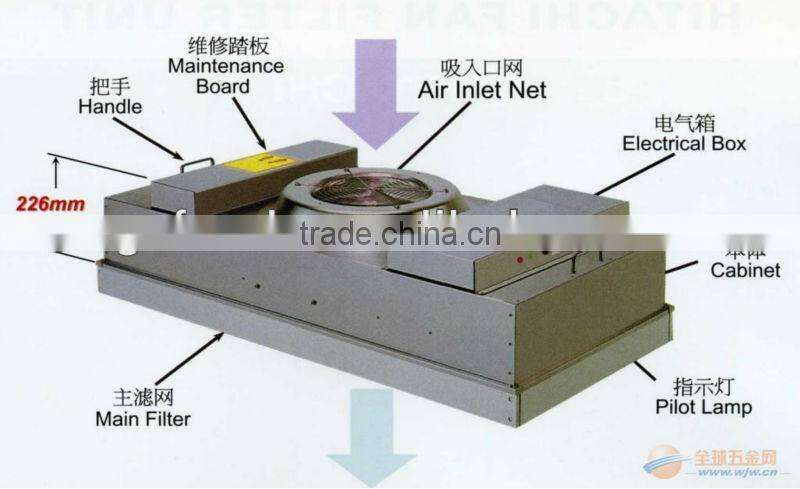

structure

Feature

·High energy saving ability, with adjustable air speed, low operating cost

·Special air passage design, low noise, uniform air speed

·Light weight, easy to install

·Adopting Computer remote control system

Spefification

model		FFU-6060	FFU-5757	FFU-60121	FFU-57117
outside dimension		608608320	578578320	6081218320	5781178320
body material		Cold-rolled plate, galvanized plate, aluminum, sanding or mirror stainless steel (SUS304/430)
Primary filter	size	60060069	57057069	600121069	570117069
	media	Ultra-fine glass fiber	Ultra-fine glass fiber	Ultra-fine glass fiber	Ultra-fine glass fiber
	air flow	650cq/h	550cq/h	1300cq/h	1200cq/h
	Surface wind speed	0.35-0.6m/s	0.35-0.6m/s	0.35-0.6m/s	0.35-0.5m/s
	filter efficiency	99.99%0.3μm	99.99%0.3μm	99.99%0.3μm	99.99%0.3μm
	Initial pressure loss	125pa	125pa	125pa	125pa
prefilter	size	39039021	39039021	49049021	49049021
	EN799	G3	G3	G3	G3
	Initial pressure loss	40pa	40pa	40pa	40pa
fan model		EBM	EBM	EBM	EBM
power supply		220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
The outside static pressure		50-100Pa
Output Power		140/150W
Adjustment and control		No level adjustment switch, plus the power instruction and fuse current protection device
noise		<60Decibels
Alternatives		primary filter :ULPA filter
		Material outside the body according to specific requirements or alternative work environment
		Ec control system and control software
		air Inlet connector
		EN779 class of prefilter

package

our factory
