Yokogawa Y/11AH pneumatic transmitter for Absolute Pressure Measurement

Yokogawa Y/11AH pneumatic transmitter for Absolute Pressure Measurement

Pneumatic pressure transmitter specially used for the occasions where electricity not applicable, for example to hazardous area, wild long distance area, harsh temperature zones and etc. The cost of pneumatic pressure transmitter is much higher than intelligent capacitive or silicon resonant sensor type due to principle and structure. Yokogawa P10 series pneumatic transmitter can be used to measure not only differential pressure but also flow rate, liquid level, density and other process variables which can be measured via differential pressure, and converting them to 20 to 100 kPa signals for transmission to remote receivers.

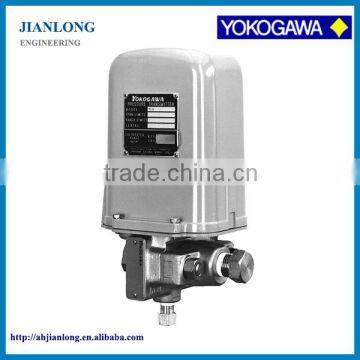

Yokogawa Y/11AH Transmitter is a pneumatic force-balance instrument that measures absolute pressure and transmits it as a proportional 0.2 to 1.0 kgf/cm2 or bar, 20 to 100 kPa, or 3 to 15 psi air signal. There are three type of capsule A, B and C optional , with measuring range 0 to 0.6 Mpa, 0 to 2.4 Mpa and 0 to 5 Mpa respectively. It is used with fractional columns, evaporators, crystallizers, degassing systems, and other absolute pressure applications.

Access of Yokogawa P10 Series Pneumatic Transmitter

Thanks for visit. Please kindly access our Yokogawa P10 series pneumatic Transmitter page below for more information to other types: http://ahjianlong.en.china.cn/productgrouplist-802621173/P10_Series.html
