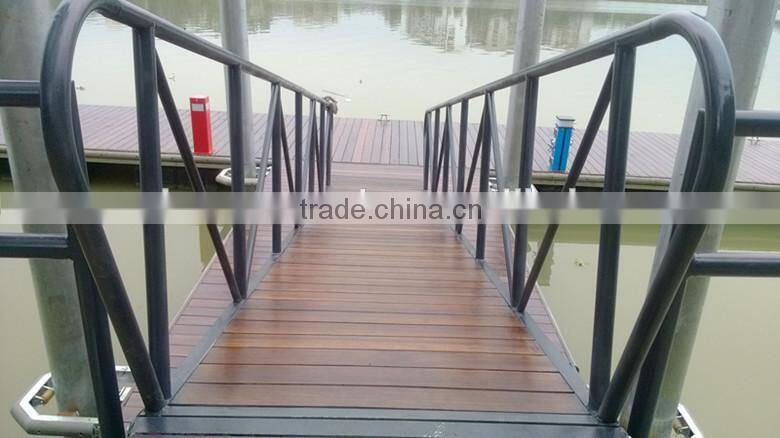

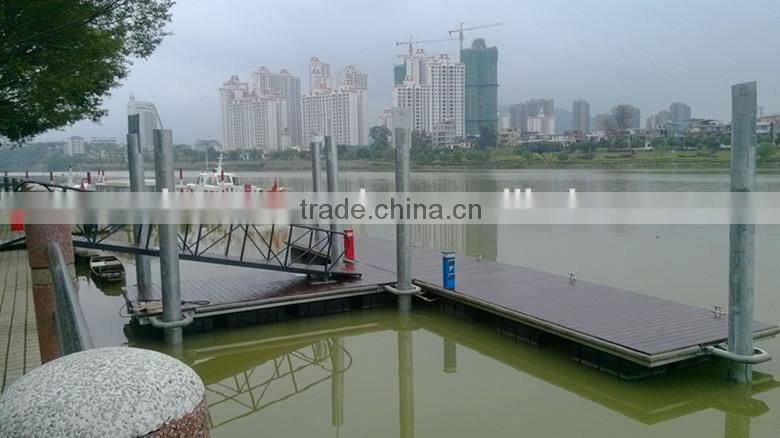

Marina Dock With Merbau Decking

Specifications

Technical parameters of  marina dock with Merbau decking :

Weight: 50--100 kg/m*m (Can be tailored to requirements)
Load: 50--300 kg/m*m
Draft: 160--300mm
Lifespan: 30years (should be maintained periodically)
Recyclable, in line with environmental requirements and standards, and reliable.

Four options structure of marina dock with Merbau decking for choice:
1. Steel Frame
2. Aluminum alloy Frame
3. Concrete Frame

Main accessories of marina dock with Merbau decking 1. Steel Frame / Aluminum alloy Frame/concrete Frame
2. Dock Decking
3. Handrail
4. Gangway
5. Other accessories(Pile GuideSafety EquipmentSafety access gateSafety LadderBoat lift and so on)

The specifications of our   marina dock with Merbau decking :

------Steel pontoons are steel structured,fully welded and galvanized.
------Aluminium Pontoons are made by 6061 T6 marine quality alloy,The Pontoon frame consists of 2 edge   profiles connected  to each other by crossbars and diagonals
------The key point of reinforced concrete pontoon is the unique structure of pontoon. The special formula protect pontoon from corroding in seawater, and avoiding aging in sun and wind weather as well.

    Steel pontoon has the superiority of high  performance ,low cost,short constructed period ,strong frame system ,good stability ,professional productive technology ,easy installation , convenient maintenance .
No.1 Marine utilizes the national standard steel as main profile , the surface is anti-rotted specially and reprocessed scientific .Different structures are connected by stainless steel and special block rubber to make ours to the best .

    Aluminium pontoon offers advantages  like: unbeatable adaptability ,exceptional performance in rough water ,superior strength and durability ,virtually low upkeep ,universal accessibility ,ease of installation.No.1 Marine aluminium pontoons are made from 6061-T6 marine quality alloy electrowelded with MIG process ,fixed with AISI316 stainless steel bolts and screws .Each No.1 Marine pontoon section is made from standard modulars ,special connection allow each system section to stay securely linked under different conditions.

    No.1 Marine quality and site-specific engineering delivers proven durability and low maintenance to Strong, rugged, durable :Wave resistance, offers protection to boats and stability to users Salt and fresh-water resistant. Submersion of floats actually increases durability Environmentally friendly, non-polluting.

    The significant point of No.1 marine concrete pontoon is the unique structure of pontoon, It comprises expanded polystyrene (15kg/m3) in the internal body ,and the external body is an unitary steel .there are concrete interval gap presetting  hydroelectric pipeline and each connector among pontoons to arrange water pipe and cable uniformly which is convenient to pipeline installation and provide perfect drinking water system and power supply system to dock. Absorbing water up to a maximum of 5% by volume ,posses characteristic of great safety and stability ,thanks to a series of special technology.

      We will send you the details photos of products,and if you want sample,we will also express for you once.

     NO.1 Marine is one of the most professional marine companies in design, manufacture, and construction of marinas and related products and services. and follow up your project from A to Z, regardless of your location or budget.
NO.1 Marine—An Innovative Company
    The marinas we build today reflect countless design refinements and advances in materials large and small .Our dock technology ,and the robust interchange of ideas and practices from the worldwide operations has helped us to nature the passion for innovation than has served us so well for our past success .and we will remain our innovation and continous quality improvement .We deliver ever-increasing durability ,and high asset value to our marina industry partners .
NO.1 Marine—A Comprehensive Design-Build Company
    Each project is unique .Our design staff will work with you to create a marina customized for your site and your market .Your marina will de engineered and build to optimize your market, reduce your maintenance ,and create an architecturally stunning environment that your guests will be proud to call home . Our design department and production teams strive to bring the product value to new levels, while constantly researching new ideas in order to satisfy our first priority .
NO.1 Marine—A Company Dedicated to Service
    NO.1 Marine offers comprehensive, client-based services that are designed to ensure an efficient program from start to finish. We respond to your needs by tailoring our services to your project goals. We can provide a combination of design, construction, and supply services that best meets your requirements.
