Manual Desk Top 4 Color 2 Station DIY Screen Printing Machine and Full Screenprinting Supplies

Manual desk top 4 color 2 station DIY screen printing machine and full screenprinting supplies

Product Image:

Product Information:

	• Model : NS402-EAS 4 color 2 station screen printer with Easy Adjust System • Pallet size : 450 x 550mm •  Adjusted your silk frame on exact place with  the Easy Adjusting System •  Detachable shirt boards. •  Adjustable double-spring devices are available for screen frames of different weight • Roller Position locking for accurate color registration •  Net Weight : 43KG     •  Gross Weight : 46KG •  Packing : 1 strong carton box	1PC

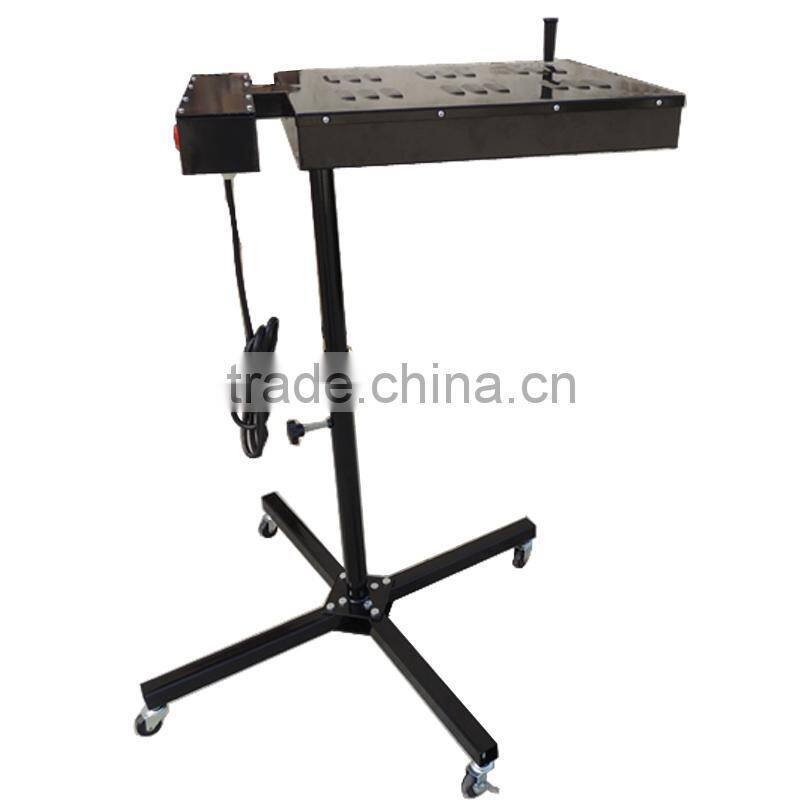

	• Model : ND605 New Digital Temperature controller Flash dryer • Power supply : 110V/60Hz,220V/50Hz, 1800W • Heating area :  18"x18"(450x450mm) • Temperature controller •  Adjustable height floor stand ( from 750mm to 1200mm ). •  Stainless steel screen covering element •  360-degree swivel head •  Net Weight : 22KG •  Gross Weight : 25KG •  Packing : 1 strong carton box  86*59*29cm	1PC

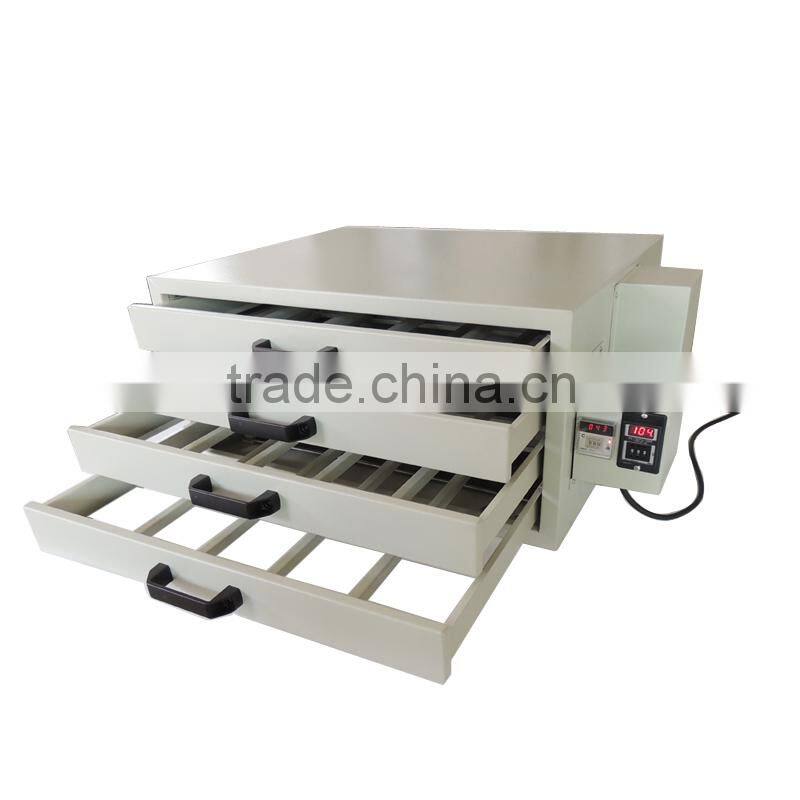

	• Mode : Drying Cabinet • Power : 110V/220V, 2000W • Max  screen  plate drying quantity : 4pcs • Max frame  size : 64*53*4.5cm	1PC
	• Mode : NA104 Manual hand screen stretcher • Max area: 60 x 60 cm	1PC
	Wash tank	1PC
	36*45 frame with 140m screen fabric	2PC
	8"Stainless Steel Spatula	2PC
	24cm flat water/ oiliness  squeegee	2PC
	35cm coater(2PCS)	2PC
	120m screen fabric	1PC
	A4 ink-jet film(also for laser printer)	2PC
	Emulsion	1Bottle
	Screen adhesive 1KG/bottle	1Bottle
	Aluminium foil tape(200M/Roll)	1Roll
	Water based plastisol ink Black color  (1KG)	1KG
	Water based plastisol ink White color   (1KG)	1KG
	Water based plastisol ink Red color (1KG)	1KG
	Water based  plastisol ink Yellow color (1KG)	1KG
	Water based  plastisol ink Blue color (1KG)	1KG
	Water based  plastisol ink Green color (1KG)	1KG

Applications :

    4 Color 2 Station desktop screen printing machine can simultaneously install four screen plates
    and the screen layer can rotate independently after installation,
    which is available for four colors’ overprinting and making progressive proofs of screen printing      business.
    the machine can print onto clothing (especially for T-shirt), woven fabric, metal, paper,
    opybook, plastic, circuit board, wood, glass, ceramic tile,leather and other plane printing substrates,
   which is especially suitable for small businesses and individual printing shop

Features:

• Simple, but rational and more practical constructions

• Table type and combinatorial design saves place and convenient for transportation.

• Screen printing platen layer can rotate independently which is easy operated with higher efficiency.

• Adjustable double-spring devices are available for screen frames of different weight.

• Screen clamp can be moved up and down, which is suitable for screen frame within 1.2" (3cm) thickness.

• Big supporting device keeps the machine stable and in balance.

• All-metal construction, advanced electrostatic spraying and electroplating, durable, easy to clear and no rust.

• Equipped with full set of installing tools, manual instructions, installation and operation videos.

• Excellent packaging: All our equipments are perfectly packaged by high-strength five-layer corrugated carton, inside with standard soft and hard foam and three-ply board, all metal parts are separately packaged, which guarantees product safety during transportation.
