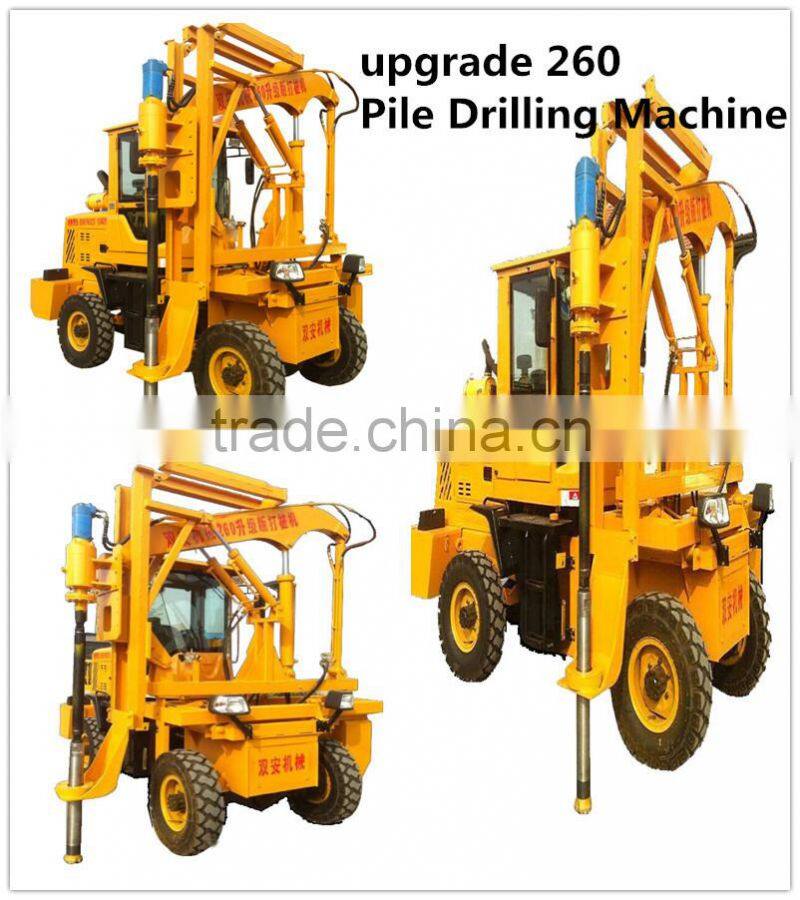

2016 Pile Drilling Machine for Road Construction
- QINGDAO or as your request
- T/T
You May Like
Product Details
| Condition | New | Efficiency | High | |
| Piling Speed(m/min) | 1 m/min | Place of Origin | Shandong, China | |
| Brand Name | SHUANGAN | Model Number | SA260 | |
| Weight | 2500~3650 kgs | Dimension(L*W*H) | 3800*2500*3200 mm | |
| Certification | Factory Control | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
pile drilling machine for construction
Welcome to Laizhou Shuangan Machinery Co.,Ltd
We are a professional and reliable manufacturer of Highway Guardrail machineries.
At present,our main product are hydraulic pile Driving machine and hydraulic drilling machine
Of course,we have been always developing new products.
Our machine has been exported to South Asia, East Asia, Middle& South America, East Europe and etc.
Specifications for different type
| Specifications | Unit | 230 | 260 | New 260 | 4 cylinder 260 | 4 cylinder 330 |
| Engine power | KW | 20.5 | 20.5 | 20.5 | 33 | 33 |
| Hydraulic hammer model | 230 | 260 | 260 | 260 | 330 | |
| Hydraulic hammer impact frequency | B/min | 120~660 | 120~560 | 120~560 | 120~560 | 42~360 |
| Hydraulic hammer work flow | L/min | 68 | 79 | 79 | 79 | 96 |
| Working pressure of hydraulic hammer | MP | 13 | 13~16 | 13~16 | 13~16 | 14~17 |
| Hydraulic system flow | L/min | 110 | 110 | 110 | 110 | 138 |
| system pressure | MP | 13 | 16 | 16 | 16 | 16 |
| Piling efficiency (minimum) | M/h | 80 | 100 | 110 | 130 | 130 |
| Maximum piling height | M | 2.6 | 2.6 | 2.8 | 2.8 | 2.8 |
| Drilling Speed | m/min | 1 | 1 | 1 | 1 | 1 |
| Drilling diameter | mm | 130~150 | 130~150 | 130~150 | 130~165 | 130~165 |
| Drilling depth | M | 2 | 2 | 2 | 2 | 2 |
| Tread (distance between two wheels) | mm | 1800 | 1800 | 1600 | 1800 | 1800 |
| Driving Speed | KM/h | 4.5 | 4.5 | 25 | 30 | 30 |
| Dimension(L*W*H) | mm | 3000*2100*2800 | 3000*2100*2800 | 3800*2500*3200 | 3800*2500*3200 | 3800*2500*3200 |
| Net weight | KG | 1500 | 1750 | 2500 | 3500 | 3650 |
| Inside Room | no | yes | yes | yes | yes |
Q:What is the main function of our pile driver?

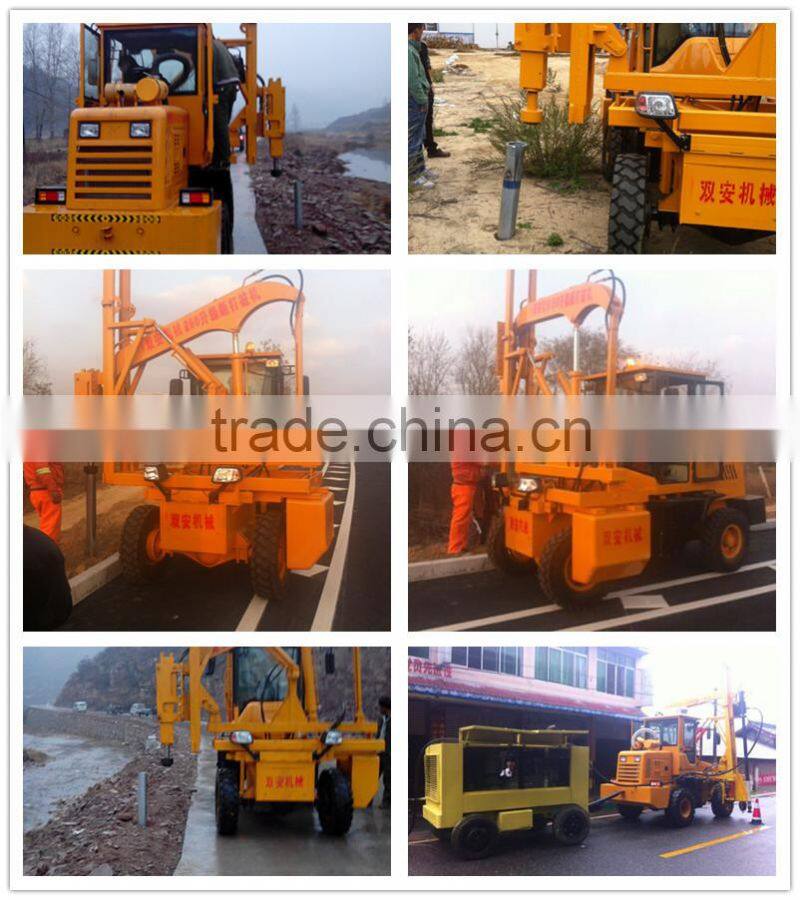

A: It has different models,widely used for highway safety project guardrail Installation.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 6 months warranty(except for the hammer),during this time all accessories broken can be changed for a new one.
Q:What is the lead time and shipping method?
A:Usually we need 10-20 days to finish the production, and we send the machine by sea.
Q:What about your payment items?
A:T/T or L/C at sight
Any other questions,please feel free to contact with us!
