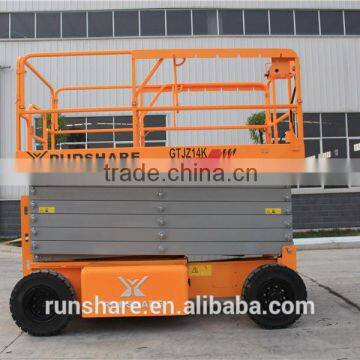

14m hydraulic scissor lift for industry
- 1600 Set / Sets per Month
- main chinese port as your demands
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Runshare | |
| Model Number | GTJZ-14K | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 48/5v/kw | |
| Rated Loading Capacity | 320kg | Min. Lifting Height | 2.92m | |
| Max. Lifting Height | 16.265m | Table Size | 2.93*1.65m | |
| Overall Dimensions | 2.93*1.75*2.92m | Weight | 4100kg | |
| Certification | CE/GOST/ISO/AS/SGS/TUV | Warranty | 12 Months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Hunan Runshare Heavy Industry Co.,Ltd.
Best Service! Best Choice!
Product Specifications
Model | GTJZ-14K |
Working Height Maximum | 16.265m |
Platform Height Maximum | 14.265m |
Max platform occupancy | 2 |
Lift capacity | 320kg |
Lift capacity-extension deck | 120kg |
Length | 2.93m |
Width | 1.75m |
Height(stowed) | 2.92m |
Height(guardrail fold stowed) | 2.43m |
Platform height minimum | 1.74m |
Platform measurement | 2.93*1.65m |
Length extension deck | 1.1m |
Ground clearance-center | 200mm |
Turning radius Minimum | 4.5m |
Travel speed(stowed) | 0.8km/h |
Travel speed(raised ) | 3.2km/h |
Grade-ability | 20% |
Tire | Φ660*170 mm |
Max. allowable slope | 3 |
weight | 4100kg |
Lift motor | 48/5 v/kw |
battery | 8*6/216 V/Ah |
charger | 48/30-40 V/A |
Configuration
CONFIGURATION |
DC motor --Bucher (USA)/ CB (China) |
Hydraulic Pump--Bucher ( USA )/Parker (China) |
Valve--Hydrofoss ( USA ) |
Brake--White (USA)/Dali (China)/Yiqun (China) |
RE motor--White ( USA) / Dali (China) |
Brake release pump--White (USA ) / Qiangtian (China) |
Battery--US (USA) / Trojan ( USA ) |
Charger--Longsheng ( China ) |
Controller-DLT(USA)/ Ruitai /Zhongdian (China) |
Hour meter--Curtis ( USA)/ Honeywell ( USA) |
Core technology
About Us
Runshare is the biggest manufacturer of aerial work platform in China. We can supply the telescopic boom, articulated boom and scissor platform from 5m to 44m.
Contact Us
ADD:Runshare industry park,Lingang new industrial Zone,Changsha, Hunan, China
Tel: 0086-18684738272
Contact person:Tina,Tan
Skype:fly02004721
Why Choose Us
1.Runshare is real manufacturer engaged in research, development, manufacturing, sale and service of aerial work equipment from 5m to 44m.
2. We could help customer choose the right model specially..
3. Main elements are used world famous brand.
4. Provide timely delivery,Sales engineers are ready to solve all problem.
5. Provide spare parts, worksite installation guidance and training operation.
1.Presale service:Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2.In sale service:We provide free guidance of installation and debugging and free training of operation,care and maintenance.
3.After-sale service:One year warranty service of whole machine and lifetime maintenance; regularly markets visits and freeguidance of whole machine's maintenance and reparations.
4.Quick responses:we have a complete service network, hotline (86-731-84939476) services for 24 hours and assist you to solve the problem in a short time.
5.Parts supply:we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
1.Delievery Time?
From 1 week to 1 month after we receive the order.
2.payments?
T/T and L/C, other kinds, pls contact with us.
3.MOQ?
1 set
4.Trade term?
FOB/CIF to your nearest seaports.
5.Power source?
Battery or Diesel engine.
6.Drive motion?
2.wheel driving or 4 wheel driving.
7.Application field?
construction, shipyard, industrial, airport, municipal garden or others.
