disk vacuum filter

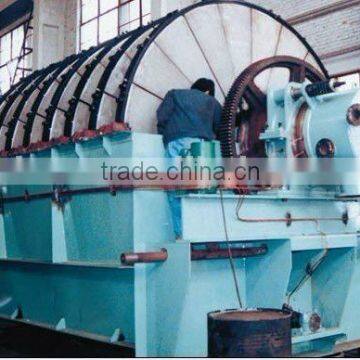

Disk Vacuum Filter Introduction:

Filter makes use of the pressure difference to separate the solid particles and liquid materials through the porous medium, such as filtration fabric and board. At present, it has four types: drum vacuum filter, disk vacuum filter, horizontal vacuum belt filter and press-filter. The disk type used the vacuum as the filtering power to separate the solid and liquid materials. Moreover, GPY series is the new product which introduced the American advanced technology. After extension and improvement, its performance index and structure has reached the world level. And it is mainly used in dehydrating fine materials, such as fine flotation coal and tailing coal with the size of 0-0.5mm,besides, it also can be used for solid-liquid separation in metallurgy, chemical, oil and sewage treatment industries.

Working principle:

When working, the filter disc circles in the slurry tank. With the help of pressure difference generated by vacuum pump, the particle is absorbed on the cloth of the disc and forming a filter cake with a certain thickness. Filtrate will discharge from the central shaft through the filter cake and cloth, and the filter cake will fall down under the pressure of the scraper and blower, and then drop into the discharging filter cake tank.

Features and Benefits:

lHigh vacuum degree, low concentration of filtrate and high filter efficiency

lSmall occupied area, low power consumption.

lCan be recycled to use., reduce the emission

lHighly automatic, reduce labor cost

lEasy installation and maintenance

lReliable structure and long lifespan.

Main Technical Parameters:
