Advanced electronic-imaging CCD camera small tablet counter

Model

small tablet counter

Counting & Filling Speed

6000grains/min max

Channel

16

Diameter of bottle

30-100mm (Customizable)

Height of bottle

50-200mm (Customizable)

Dimensions

1800mm×1500mm×1800 mm  ( L × W × H )

Electrical Requirements

1.8kW, 220/110v, 50-60HZ(Optional)

Air pressure

0.7Mpa

Weight

800kg

Working direction

Left → Right (or Right → Left)

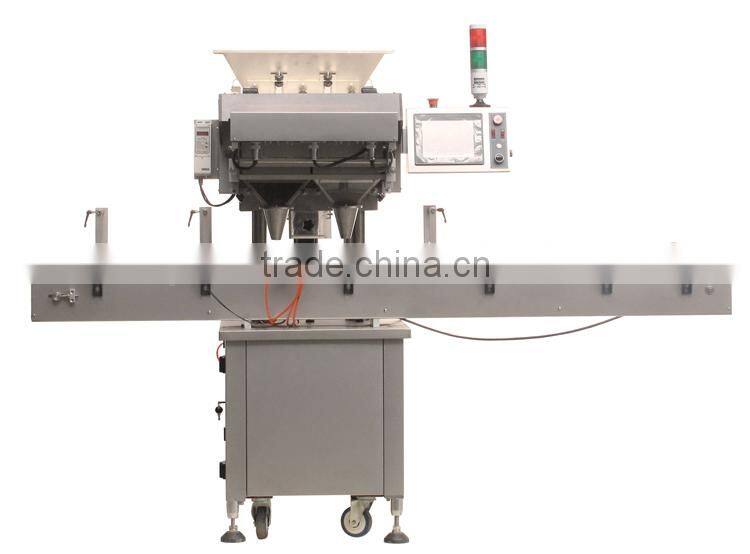

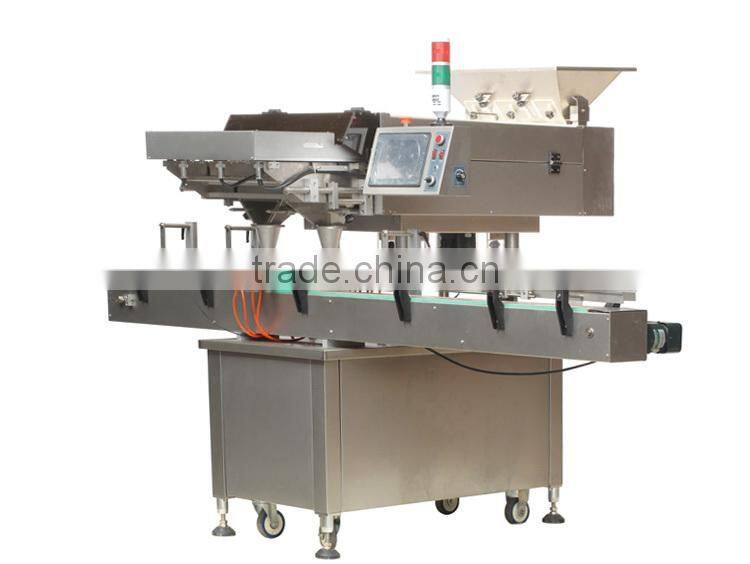

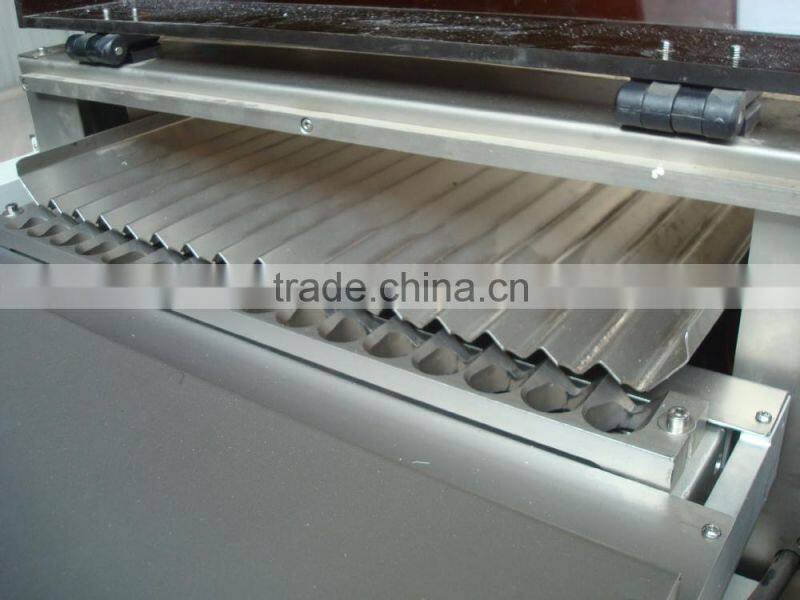

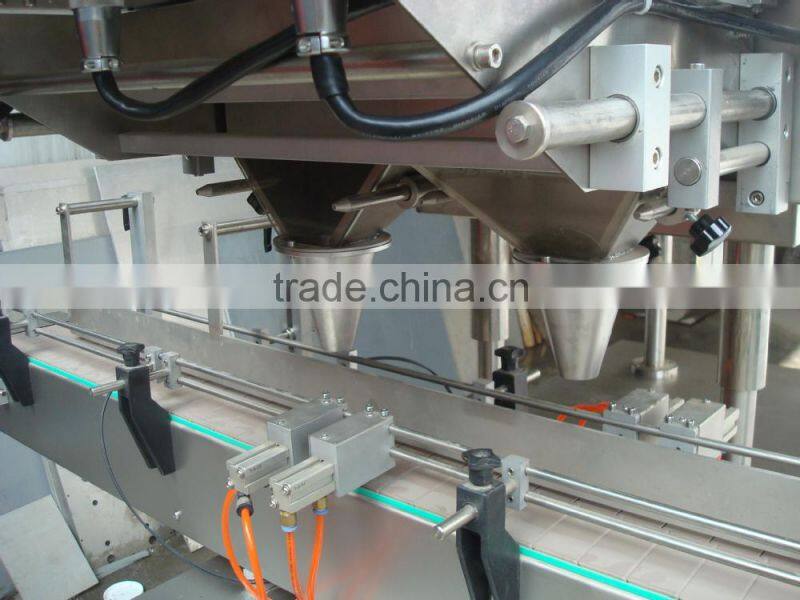

This high speed small tablet counter combines 16-channel counting heads over a dual-track conveyor on a single frame to double the throughput without doubling the floor space, achieving speeds up to 60 cpm based on 100-count bottles. The machine handles a wide variety of candies,both hard and soft candies of different shapes, sizes and properties.

Specification

Brand

HMI

SIEMENS

PLC

SIEMENS

PLC extending module

SIEMENS

Communication cable

SIEMENS

Relay

OMRON

Sensor

NS

Logic inspection system

PHILIP

Bottle detecting sensor

AUTONICS

Power switch

MEANWELL

Transformer

GBL

  Motor

MEISTER

Stainless steel

SS304

Cylinder

AIRTAC

Squarestar Machinery was established in Shanghai, PR China in 1985, since that, we have dedicated to packaging machinery manufacturing and design for nearly 30 years. During so long time, we have extended our business to become a supplier of complete packaging line including bottle washer, unscrambler, filling and counting machine, inserting machine, labeling machine, capping machine, sealing machine, cartoning machine and so on. We believe that we possess rich experience and ability to meet a variety of requirements of you. Besides, we also provide very good after-sales service and solution of technology problem. We also provide training, on-site installation, documents support. We could make customized products based on different requirements of different customers. small tablet counter
