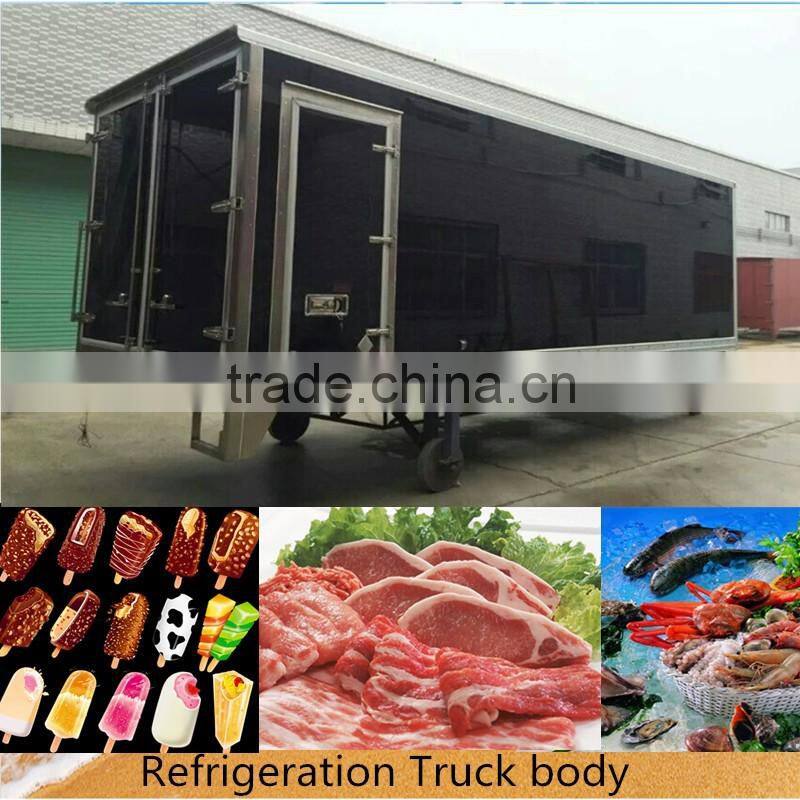

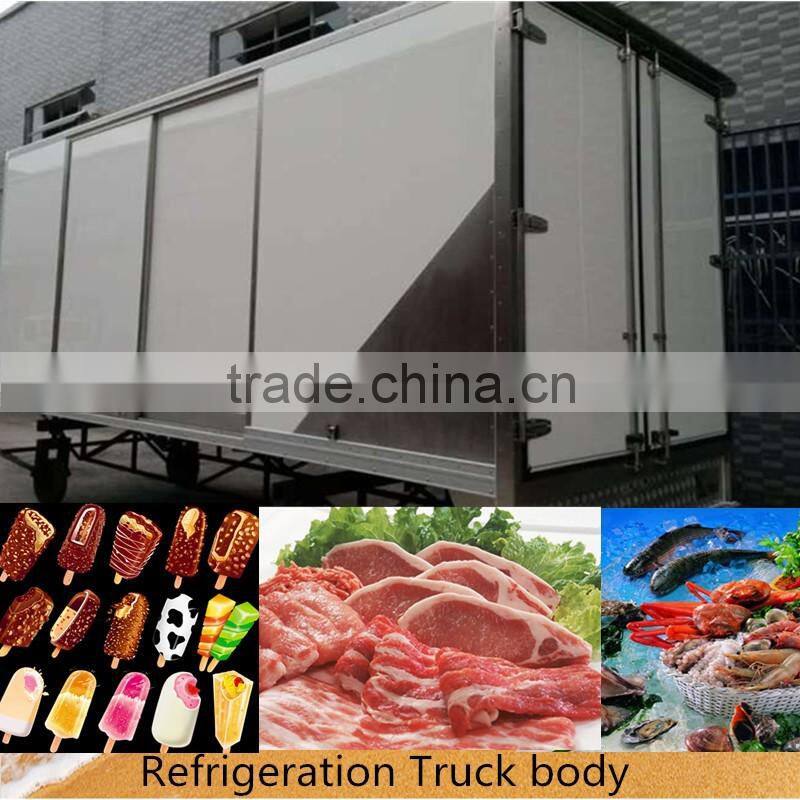

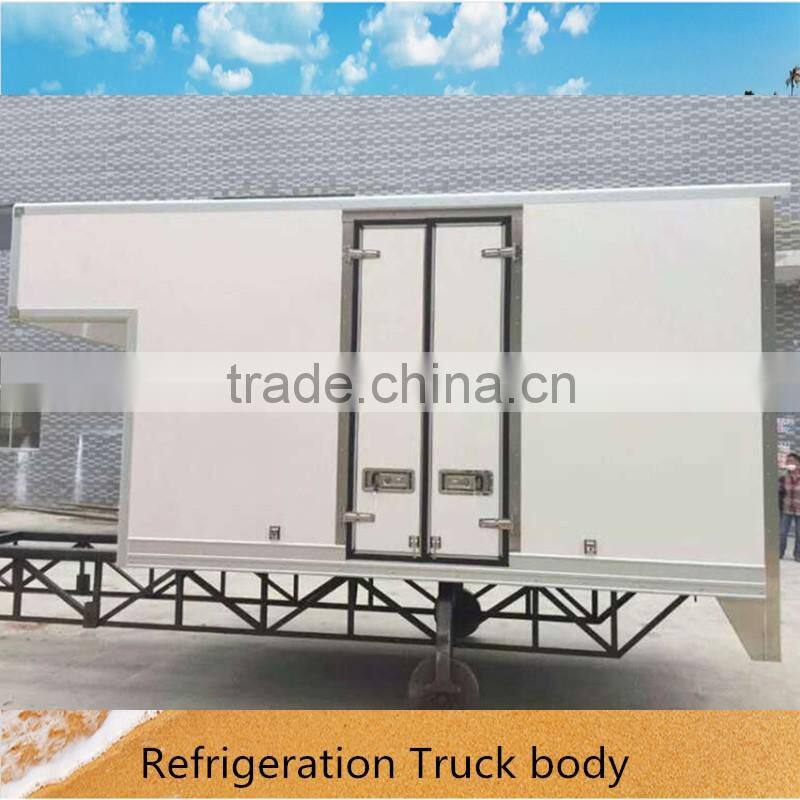

20feet refrigerated truck body for fresh meat fish /cooling van truck

 20feet refrigerated truck body

for fresh meat fish /cooling van truck

Material

• The refrigerated truck body is an assembly of FRP composite panels and steel frame base and other metal components

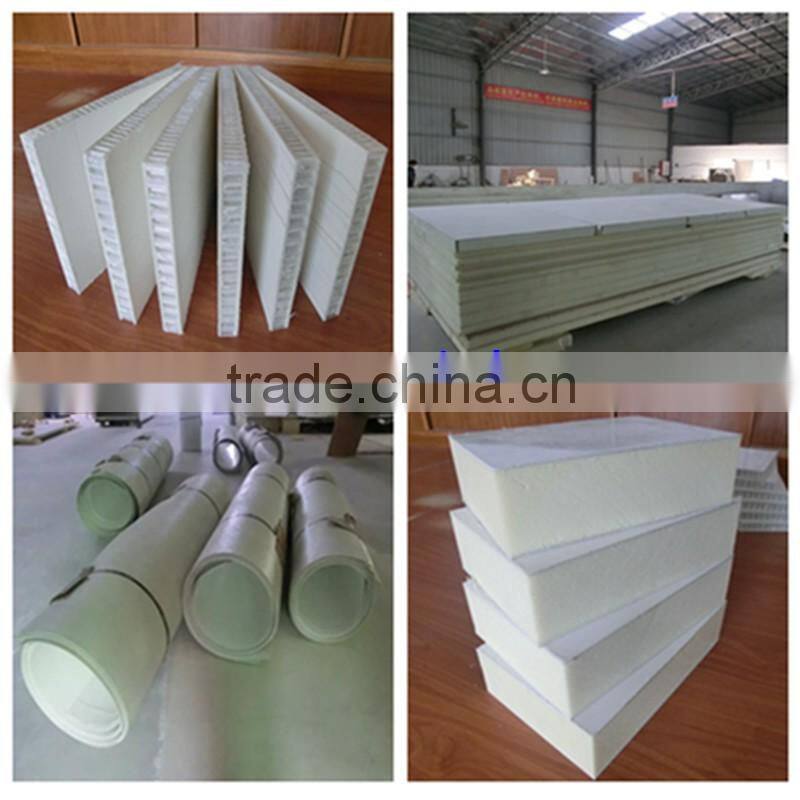

• The panel used for the van/truck body is constructed in type of sandwich(FRP+insulation foam+FRP). FRP(Fiber Reinforce Plastic) is used as outer skin of roof, wall, floor and door, the middle layer insulation foam of the sandwich is a kind of new type fluorine-free polyurethane(PU)  or extruded polystyrene foam(XPS), standard thickness of the thermal insulation layer ranges from 65mm to 120mm, which offers a very good thermal insulation performance.

Construction

• The sandwich panels of truck body are fixed to the steel frame base with high strength adhesive and screws and aluminum alloy plates
• All panels are adhered with each other with high strength structural adhesive to achieve the most reliable conjunction, sealing and insulation properties, this structure allows easy and fast assembly.

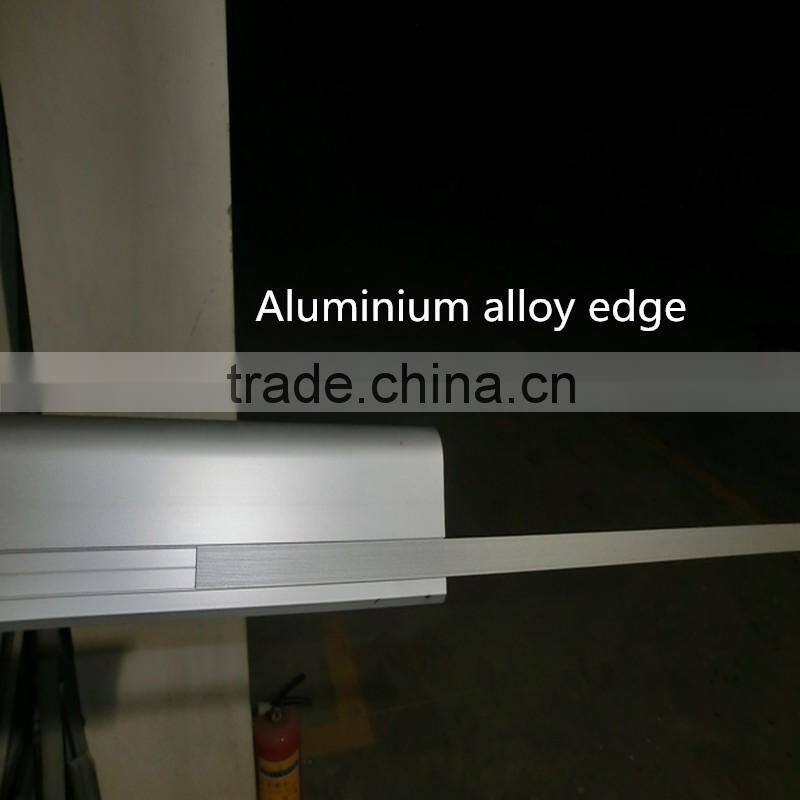

• All inside and outside corners of the truck body are wrapped with aluminum alloy profiles which are screwed to the panels to guarantee the reliabilty of the structure
• The door panel is produced by a high accuracy process with imported sealing rubber to keep good airtight seal and thermal insulation. Positions and quantity of doors on the truck body can be adjusted per clients' request.

Size

• Sizes are variable per client's request

Color

• Colors are customized

Feature

• Light in weight, easy to install, high structure stability and long service time.
• Non-corrosion, non-pollution, anti-brine, acidic and alkali resistance.
• Easy to be assembled and repaired at site.
• Stainless steel door frame and door lock system.

1.CKD or CBU

2. Big size trucks always shipping by RORO or bulk ship or flat bed container or open top container ,small type can shipping by container ,please contact us to get a shipping quotation.

1.OEM and ODM are welcome

2.Can help you to purchase other products

3.1 years warranty,100% quanlity and safety guarantee

       Established in 2010,Zhongshan Shengtai Refrigeration Equipment Co.,ltd is  with Strong technical ability and innovation ability.Our main products are FRP refrigeration truck body, insulated compartments,FRP dry cargo truck ,dry cargo honeycomb panel,  truck laminating panel and FRP sheets.Most of our products are exported to foreign countries,such as Albania,Algeria,Angola,Afghanistan, Congo,Chile,Cuba,Guinea,Indonesia,Iran,Iraq,Jamaica,Jordan,Kenya,Kuwait,Kazakhstan,Uzbekistan,Tajikistan,Turkmenistan,Malaysia,Mexico,Morocco,New Zealand, Nigeria,Peru, Philippines,Qatar,Saudi Arabia,Singapore,Sudan,Tanzania,Thailand,Venezuela,Zambia etc.

Q:How about the warranty?

A: One year

Q: How about the delivery time ?
A: Most of our trucks are all have in stock ,we can delivery to you within 7 days ,if specially ordered ,we always need around 30 days for production after receiving deposit.

Q: How about your product After-sales service system ?
A: Our main export country have accepted after-sales service, some of country used the third department service.

Q: Do you accept Customized orders ? What’s your MOQ order?
A: Yes,we do ,our MOQ is 1set.

Q: What’s the payment terms ?
A: By T/T or L/C at sight.

Q: Which countries do you have exported to ?
A: We have exported to many countries,
such as Albania,Algeria,Angola,Afghanistan, Congo,Cameroon,Chile,Cuba,Guinea,Indonesia,Iran,Iraq,Jamaica,Jordan,Kenya,Kuwait,Kazakhstan,Uzbekistan,Tajikistan,Turkmenistan,Laos,Libya,Malaysia,Maldives,Mexico,Morocco,Myanmar,Mongolia,New Zealand, Nigeria,Peru, Philippines,Qatar,Saudi Arabia,Singapore,Sudan,South Sudan,Tanzania,Thailand,Togo, Tunisia,Venezuela,Zambia etc.
