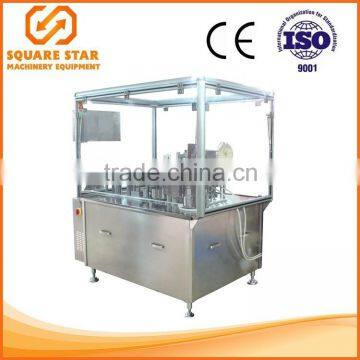

High-precision automatic pre-filled syringe filling and plugging machine

Model

pre-filled syringe filling and plugging machine

Filling volume

0.5~100 ml

Filling nozzles number

2

Capacity

1800~3600 Syringes/Hour

Sealing method

Pressure or screw

Compressed air pressure and consumption

6 kg/cm², 0.15 m³/min

Power supply

2.0Kw, 3 Phase, 380/220v, 50~60 Hz

Dimension

1400*1000*2200 mm(L*W*H)

Net weight

750kg

1. The machine is suitable for liquid filling & rubber plugging on glass or plastic syringes. Other types of syringe are also up to custom made.

2. 4 nozzles are for filling simultaneously. Plugging can be either by pressing down or screwing ways.

3. Plugging is done paralleling with filling. Multi points inspection with optical fiber sensors. Neither filling nor plugging when syringe is missed.

4. All product contact parts are of AISI 316L and medical silicon.

5. Actual working status can be displayed on touch screen with multi languages.

 1. One year warranty, free charge for spare parts in warranty

 2. Engineer available to service overseas

 3. Good quality competitive price. ISO9001:2008 and CE certificate

 4. You could ask for help about technical problem from our engineer through phone call               orinternet any time for free.

Q1: As an oversea buyer, I am wondering whether you will send your repairman or engineer to

our country to help us to solve our problem after one year warranty.

 A1: Of course, we will always do our best to solve your problem whatever in one year warranty or not, and you need not to pay for unnecessary, we will provide a reasonable repair price         to satisfy you.

 Q1: Are you a factory or an agent?

 A1: We are an OEM, we always design and manufacture our products ourselves, so we could provide satisfactory technical and after-sales service. You could pay a visit to our factory any time if you are willing       to.

 Q3: How does your factory do regarding quality control?

 A3:Quality is priority! Every worker keeps the QC from the very beginning to the very end, all

material we used are meet GB standard, skillful workers care every detail in handing each

process, Quality control department specially responsible for quality checking in each             process.
