Home > Products > laminating machine > Adsorption Flute Laminator Machine for corrugated cardboard

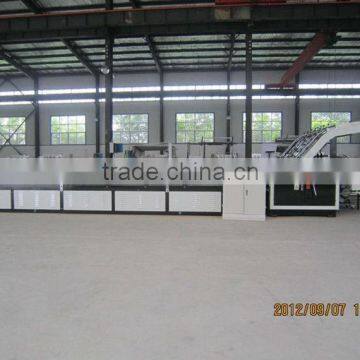

Adsorption Flute Laminator Machine for corrugated cardboard

FOB Price

USD $12,000 - $18,000 / Set

1 Set(Min.Order)

Port TIANJIN CHINA

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Food, Commodity, Medical, Chemical
Packaging Type	Cartons	Packaging Material	Plastic
Automatic Grade	Semi-Automatic	Driven Type	Electric
Voltage	380V 50HZ 3PH or customized	Power	6.5kw
Place of Origin	Hebei, China	Brand Name	XINGLONG
Model Number	BZJ-1500B	Weight	about 3.5TON
Dimension(LWH)	8.8m2.15m1.5m	Certification	CE certification
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

semi-auto flute laminating machine
1,frequency conversion control
2,PLC control
3, adsorption vaccum system

High Speed Corrugated Cardboard Laminating Machine Adsorption Type

Performance of the machine:

1, This machine advanced design can on real significance to realize high speed continuous work, stick machine is the most advanced field semi-automatic new exact a section type.

2, The machine adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a larger range of paper, high precision while remaining the features of easy operation and maintenance, The whole machine adopts the program of PLC, Pre-warning equipment.

3, The production of one hour is near automatic laminate. The automatic laminate requires high demand of cardboard. contrast to the automatic laminate, semi-automatic laminate requires low. It can settle the problem of corrugating paper arch and hold up.

Specification:

Model	BZJ-1300B	BZJ-1400B	BZJ-1500B	BZJ-1600B
Max. size of cover face	1300mm×1100mm	1400mm×1250mm	1500mm×1250mm	1600mm×1250mm
Min. size of cover face	360mm×360mm	360mm×360mm	360mm×360mm	360mm×360mm
Economic speed	0-80PCS/min	0-80PCS/min	0-80PCS/min	0-80PCS/min
Laminating precision	±1	±1	±1	±1
Power	6kw	6kw	6.5kw	6.5kw
Overall Dimension	8.8m×1.95m×1.5m	8.8m×2.05m×1.5m	8.8m×2.15m×1.5m	8.8m×2.25m×1.5m
Weight	About 3T	About 3T	About 3.5T	About 3.5T
