YFQ Series of Multi-color Printing And Slotting Machine , Packing Machinery
- tianjin port
- T/T
You May Like
-
SF320S-360S Adsorb Type Single Facer,packing Machinery
-
YFQ Series of Multi-color Printing And Slotting Machine,corrugated Machinery
-
GYK Series of Automatic High-speed Plexo Printing Slotting Machine Die-cutter,packing Machine
-
SF320-360S Adsorb Type Single Facer,packing Machinery
-
3-5ply High Speed Corrugated Cardboard Production Line,carton Machine
-
SF320-360S Adsorb Type Single Facer,corrugated Machinery
Product Details
| Condition | New | Application | Other, food medical fruit vegetables etc | |
| Packaging Type | Cartons | Packaging Material | Plastic | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 380V 50HZ | Power | 5.5kw | |
| Place of Origin | Hebei, China | Brand Name | xinglong | |
| Model Number | YFQ | Weight | 3tons/group | |
| Certification | CE |
Product Description
Specifications
YFQ Series of multi-color printing and slotting machine,packing machineryInk supply by pneumatic diaphragm pump
low cost etc

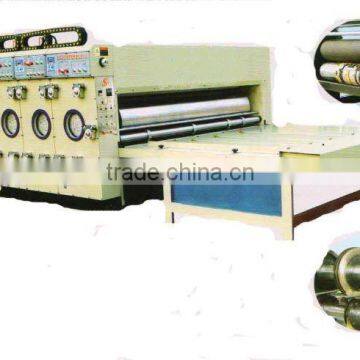

YFQ Series of multi-color printing and slotting machine
It adopts the combination chain-paper feeding
Adopt planet type electric phase 360 degree adjusting , while revolving or stop-ping can be adjust quickly and accurately .
When machine stopped working , inker auto separately with printing roller , avoid damaging the printing roller .
Inker roller has the separately turn device to prevent ink drying when machine stopped working .
Pneumatic locking , electrically separation .
Ink supply by pneumatic diaphragm pump .
Main transmission gear made by 45# steel after high frequency quenching .
Transmission part adopt sprinkle lubricating system , ensure the machine precision and use life.
|
|
|
(Technological Parameter )
Model | roller diameter (mm) | paper passing width (mm) | Effective printing area (mm2) | Total weight of Machine (kg) | Motor power (KW) |
YFQ-1800 | 420 | 1750 | 1500×1300 | 4500 | 4.0 |
YFQ-2000 | 420 | 1950 | 1700×1300 | 5000 | 4.0 |
YFQ-2200 | 420 | 2150 | 1900×1300 | 5500 | 4.0 |
YFQ-2500 | 420 | 2450 | 2200×1300 | 6000 | 4.0 |
YFQ-1800 | 480 | 1750 | 1500×1470 | 5000 | 4.0 |
YFQ-2000 | 480 | 1950 | 1700×1470 | 5500 | 4.0 |
YFQ-2200 | 480 | 2150 | 1900×1470 | 6000 | 5.5 |
YFQ-2500 | 480 | 2450 | 2200×1470 | 6500 | 5.5 |
YFQ-2800 | 480 | 2750 | 2500×1470 | 7000 | 5.5 |
YFQ-3000 | 480 | 2950 | 2700×1470 | 7500 | 7.5 |
YFQ-2500 | 530 | 2450 | 2200×1600 | 7500 | 7.5 |
YFQ-2800 | 530 | 2750 | 2500×1600 | 8000 | 7.5 |
YFQ-3000 | 530 | 2950 | 2700×1600 | 8500 | 7.5 |
