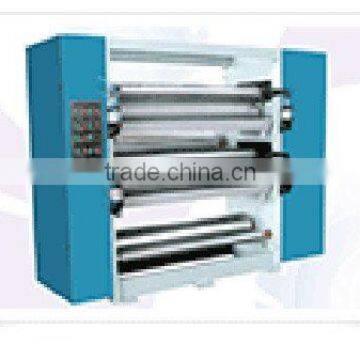

Corrugated Board Machine/ Gluing Machine

Specifications

corrugated board machine/ gluing machine

Technological Parameter

*Working width: 1800mm

*Machine speed: 120m/min    Economy speed: 80-100mm/min

*Temperature demand: 150-200    steam pressure:1.12-1.3Mpa

*Steam consumption:0.1-0.15Mpa   Constringent air:0.6-0.9Mpa

*Total power of machine: 6.0kw

*Working power: tension 380v   frequency 50Hz

*Dimension(length×width×height):3500mm×1280mm×2100mm

*The way of pressure paper: pressure roller style

*Diameter of preheating roller: 325mm   Wall thickness  20

            Exactitude milling fand plating chrome

*Diameter of glue roller: 240mm   Wall thickness 30

            Exactitude milling and plating chrome

*Diameter of absorption roller:100mm   Wall thickness 15

            Exactitude milling and plating chrome

Structure Trait

1.  Unattached motion transmission with variable frequency control.

2.  Glue roller surface are treated with reticulate embossing and plating chrome, surface of scraper roller and ballest roller are whetted and plating chrome.

3.  Adopt double-pressure paper roller set, pneumatic operation, flexible and convenient.

4.  Auto-cyc feeding glue, prevent glue liquid from depositing.

5.  Materials of Preheating roller, glue roller and adsorption made in CHENGDU seamless steel pipe factory.

Material and Purchase Items

*Both sides of the panel material: HT200 casting

              Origin: HEBEI

*Bearing: made in HAERBIN,WAFANGDIAN,LUOYANG

*Electrical types: made in ZHEJIANG ZHENGTAI

*Types of pneumatic components: XINHUA    Origin: ZHEJIANG
