Home > Products > carton machine > Thin Slitter Scorer Machine Slitting Corrugated Cardboard Machine

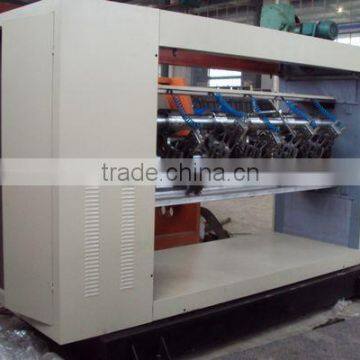

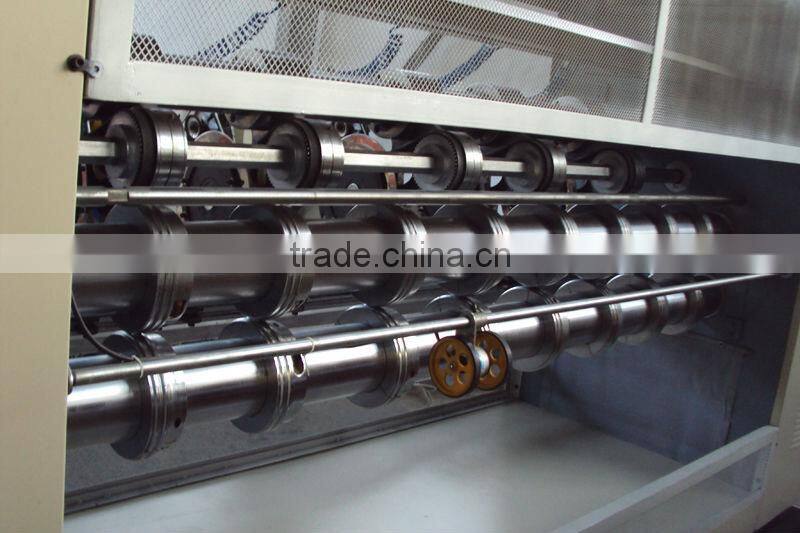

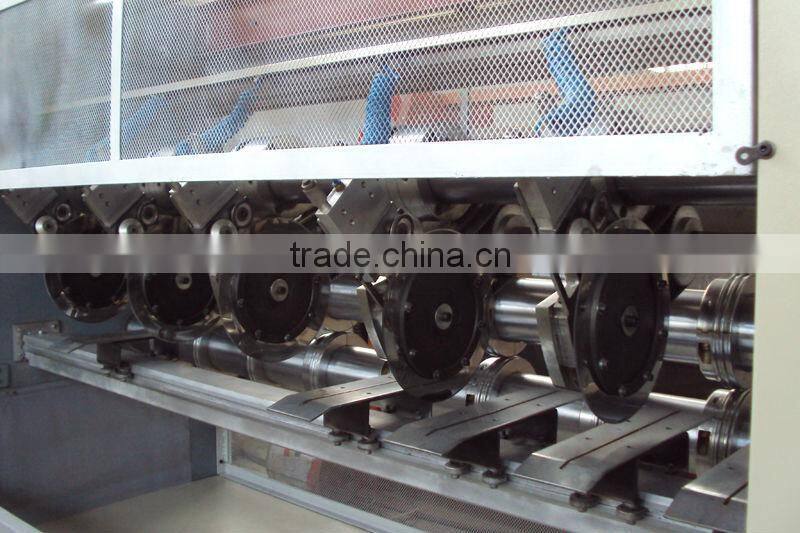

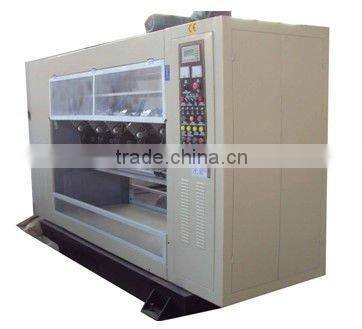

Thin Slitter Scorer Machine Slitting Corrugated Cardboard Machine
- tianjin
- T/T
You May Like
Product Details
| Condition | New | Application | Other, corrugated cardboard | |
| Packaging Type | Cartons | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V; 50Hz | Power | 5 | |
| Place of Origin | Hebei, China | Brand Name | xinglong | |
| Model Number | BFY | Weight | 2000kg | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
thin slitter scorer machine slitting corrugated cardboard machine1.slitter
2.scorer
3.BFY-2000
4.3balde 4line or 4balde6lin
Thin slitter scorer machine slitting corrugated cardboard machine:
1. slitter
2. scorer
3 BFY-2000 BFY-2500
4. 3balde 4 line or 4balde 6line
Features:
1. Automatic;
2. 4 blades 6 scorers; Alloy blades
3. Used thin blade slitting paperboard to avoid burr and be flattened. Finished cardboard is flat and smooth and free from burrs and press flatten, good straightness, improve quality and appearance of cardboard.
4. Equipped pneumatic sharpening device (Timing, Spacing), can cutting and grinding at the same time. Keep the sharpness of blade and improve working efficiency.
5. Electric up and down, electrical adjustment blade, electrical adjustment creasing. the whole machine adopt electric movement horizontal, assort to the cardboard excursion in effect.
6. Adjustable speed motor drive.
Technical parameters
Type | BFY-2000 | BFY-2500 |
Blade Nu. | 4 | 4 |
Min cutting length(mm) | 120 | 120 |
Min(mm) | 50 | 50 |
Blade outside diameter(mm) | 260 | 260 |
Blade thickness(mm) | 1 | 1 |
Motor power(kw) | 3 | 5 |
Outline size(mm) length*width*high | 2630*1791*1130 | 3050*1791*1130 |
