Home > Products > reed switch > ORD 324 reed switch, UL magnetic sensor
ORD 324 reed switch, UL magnetic sensor
US$ 0.05 - 0.4
/ Piece
10000 Pieces(Min. Order)
- Shenzhen
- Credit Card
You May Like
-
reed switch MKA 14103 UL certification
-
Power Reed Switch 5C-5051 from Shenzhen E-5cntinents
-
Power Reed Switch HYR-5051 from Shenzhen E-5cntinents
-
reed switch MKA 14103 UL certification from Russia
-
E-5C outdoor alarm siren with strobe bell system 5C-900
-
E-5C NEW outdoor alarm siren with strobe 5C-800 external sounder
Product Details
| Place of Origin | Japan | Brand Name | OKI | |
| Model Number | ORD 324 | Usage | Magnetic Sensor | |
| Output | Switching Transducer |
Product Description
reed switch/ magnetic switch sensor/ reed switch sensor/ magnetic contacts/ door switch/ magnetic contact reed switch

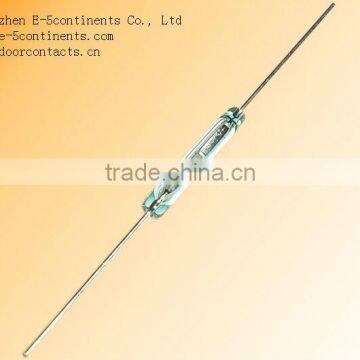

Reed switch OKI Made in Japan
Rhodium Reed Switch with 5.4kHz Resonant Frequency and 100V DC Maximum Switching Voltage
- Contact material: rhodium (Rh)
- Contact form: 1A (SPST-NO)
- Contact position: SYM
- Contact rating: 10W
- Maximum switching voltage: 100V DC or AC
- Maximum switching current: 0.5A
- Contact resistance: 100MΩ (at initial value)
- Pull-in value (AT): 10 to 35
- Drop-out value (AT): 5
- Maximum operation time: 0.4m seconds
- Maximum release time: 0.3m seconds
- Contact capacitance: 0.3pF
- Insulation resistance: 1,000MΩ
- Resonant frequency: 5.4kHz
- Operating temperature: -45 to +155°C
Operating frequency: 500Hz
