Home > Products > reed switch > OKI reed switch ORT 551 , brand from Japan magnetic switch

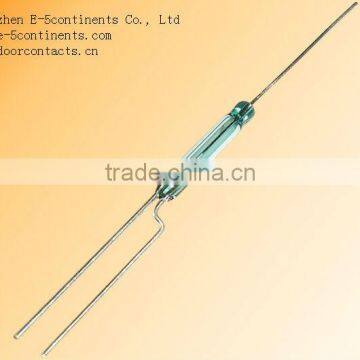

OKI reed switch ORT 551 , brand from Japan magnetic switch
- shenzhen
You May Like
Product Details
| Place of Origin | Japan | Brand Name | OKI | |
| Model Number | ORD 551 | Usage | Magnetic Sensor | |
| Output | Switching Transducer |
Product Description
Reed switch Rhodium Reed Switch with 5.4kHz Resonant Frequency and 100V DC Maximum Switching Voltage, contact position: off set
reed switch/ magnetic switch sensor/ reed switch sensor/ magnetic contacts/ door switch/ magnetic contact reed switch
Demension 2.7*14.3*52.6mm
Contact Form:C
Contact PositionOffset
Max Contact Rating:10W
Max Switching Votage:100VDC/VDC
Min.Breakdown Voltage:200VDC( 20AT)
Max Switching Current: 0.2A
Max Carrying Current:0.5A
Initial Resistance:100mΩ
Pull-in Value:10-30 AT
Dorop-out Value:4AT
Max.Contact Capacitance:1.5pF
Insulation Resistance:1000000000 Ω
Frequency:6.4kHz
Operating Temperature:-40--+125℃
