Contactless Exit Button With Infrared Sensor(British Standard)
- Keelung Taiwan
- T/T Credit Card
You May Like
-
Infrared Sensor Switch No Touch Door Release Exit Button
-
Exit Push Button , Zinc Alloy , Door Exit Button
-
Exit Push Button , Request to Exit Switch , Door Exit Button
-
Illuminated Exit Push Button , Zinc Alloy , Door Exit Button
-
Zinc Alloy Door Exit Push Button With LED
-
Exit Push Button , British Standard , Request to Exit Switch
Product Details
| Place of Origin | Taiwan, China | Brand Name | Pegasus, Pongee | |
| Model Number | PBT-286/IRA |
Product Description
Features
•Built-in micro controller for decoding infrared signal to avoid interference from the noise.
•With bi-color status LED (Power on: Red/ Proximity: Blue).
•Adjustable proximity range: 3~10cm (Default: 10 cm), depending on the reflection rate of different object.
•Support adjustable opening time 0.5~20 Sec. (Default: 0.5 Sec.) or latched ON or OFF output.
•With N.C. and N.O. output.
Specifications
• Dimensions: 5(plate)/34(total depth) x 86(W) x 86(L)mm
• Net Weight: 70g ± 5%
• Hole distance: 60mm
• Material:
Face plate: Stainless steel
IR sensor: Polycarbonate fire & UV proof material
• Waterproof:
IR sensor:IP65
• Power supply: DC 10V~16V 1A
• Relay contact rating: 1A@ 30 VDC
• Current: DC 12V
Standby Current: 25mA±5%
Operating Current: 35mA±5%
•Operating temperature: -20°C ~ 75°C
•Life: Mechanical: 3,000,000 cycles
Electrical: 200,000 cycles

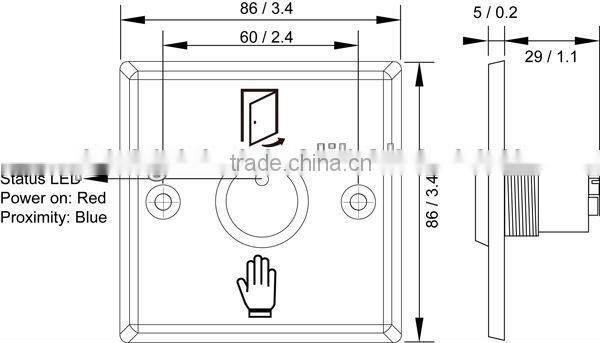

Dimension: Unit(mm/inch)
We reserve the right to change the specification without prior notice or obligation!
