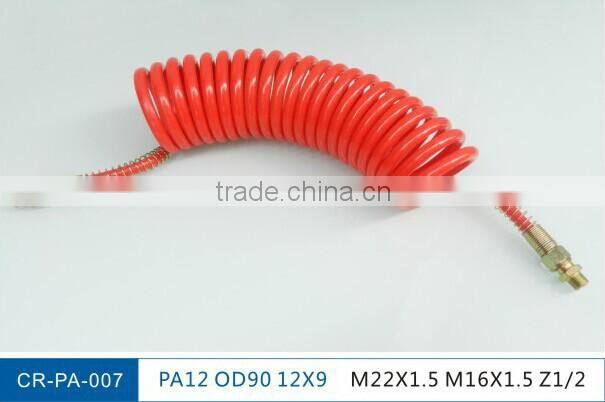

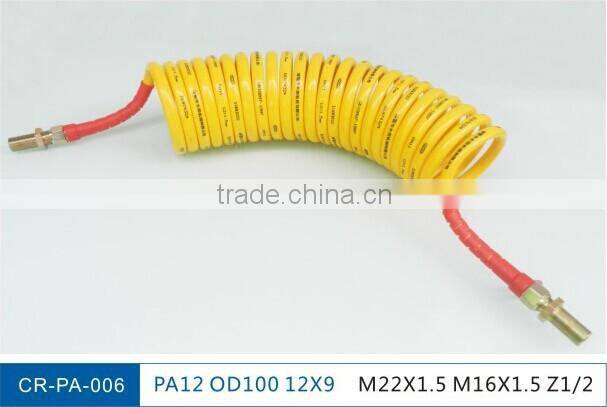

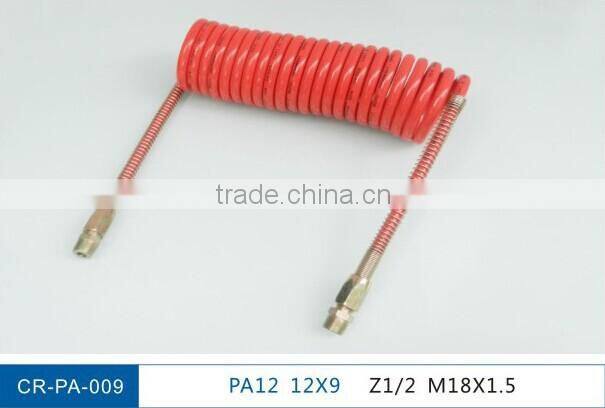

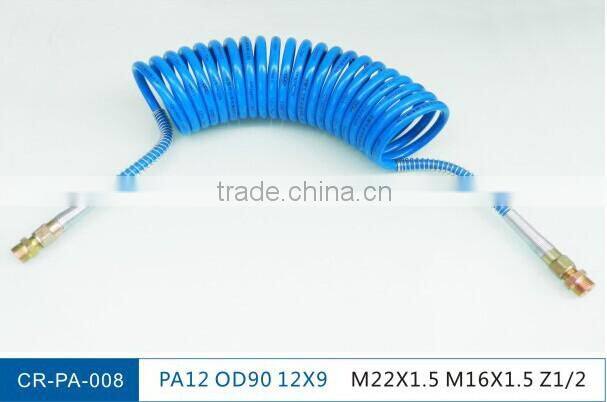

Trailer Air Brake Coil

Specifications

Our recommendations:
1)We specialize in nylon tube spring coil and hydraulic tube fittings.
2)Our products sells well both home and abroad for our strict control on quality and competitive price.
3)Smooth surface and anti-age functions.
4)strict quality control, superior performance.
5)Advanced CNC lathes, efficient and harmonized teams.

Certifications:
1.ISO 9000/9001/9004/19001:2000
2.CCC(China Compulsory Certification)
3.TS16949:2009
4.OEM Service

Specifications:

OEM available
1)O.D. of coil: 110mm,100mm,90mm or as required
2)Coils/turns: 16,18,20,22,24,26,28,30.etc.
3)Color: red,blue,yellow,black or as you require.
4)Hose Length: 5.5m,6.5m,7.5m.8m,etc.
5)Fittings:With two M16,M18,M22 ,1/2"fittings etc. or no fittings
6)Explosion Pressure : 6Mpa(=60Bar)
7)Polyamide 12 (PA) Air Coils
8)O.D×Wall thickness:12×1.5mm
9)Protection: Spring or plastic.
10)Working pressure is 1.5 ~ 15MPa(15 ~150Bar), burst pressure is up to 60 kg. Our products work properly even if exposed to temperature from -40 to +120°C.
11).Applications: Automobile air brake pipeline, Engine oil inlet, Engine oil return tube,pneumatic piping,trucks, trailers, containerized traffic and air brake.
12).Material: PA12, PA11, PA6, PE, PU
13).Performance: Smooth surface, wear-resistant, resistant to high pressure, corrosion resistance, safe and reliable.

We have DOT, TS16949:2009, ISO9001:2000 certificates and have been alibaba Gold supplier member for 5 consecutive years. Certified by third party and as a trustworthy manufacturer and supplier for hydraulic tube fittings and brake hose assemblies, We take regular part in Canton Fair, Beijing Auto Exhibition, Auto Mechanika Shanghai, Dubai Internatioanl Auto Part Exhibition, Russia Internatioanl Auto Part Exhibition every year.

Our products:
Nylon tube (PA hose & nylon pipe );
Trailer air brake coils;
PU tube, PU air brake coils;
Trailer electrical coil; seven core cable
Palm coupling, trailer air coupling, Gladhands;
Pipe fitting: Straight fitting, Elbow, Tee; connector, coupling ,nut ;
3 or 7 pieces fitting for nylon tube: Nut, cutting ring,brass insert /sleeve; and other auto parts.
