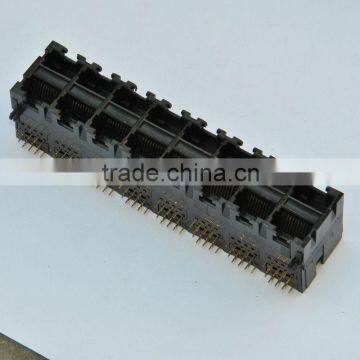

Unshield Double Row 2*8port RJ45 Network PCB Jack
- Ningbo or Shanghai
- Credit Card
You May Like
-
Side Entry female RJ45 8P8C PCB connector and modular jack
-
Unshiled RJ45 female connector and modular jack,Side entry 10P RJ45 PCB jack
-
Top entry RJ45 network socket
-
Top Entry RJ45 Multi-ports PCB JACK with LED
-
Single port 8P pcb jack with LED top entry female RJ45 LED modular pcb connector
-
SFP 2X1 Press Fit Connector
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CSCE | |
| Model Number | SC923-5921-8P-2*8 |
Product Description
Specifications
1.Unshield Double Row RJ45 Network Modular PCB Jack/socket/connector with 0.45mm phosphor bronze contact wire2.UL,RoHS,ISO
Description:
CAT5 Double Row RJ45 Lan modular PCB jack
Without shielding, round pin
Number of ports: 2*8
Number of position: 8
Number of contacts: 2,4,6 or 8
Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
Materials:
1. Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu",+3u",6u",15u",30u",50u"
