Explosion-proof Mining Head Lamp 5 Led Coal Miner Head Lamp

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China	Brand Name	HAN
Model Number	KL1.2Ex KL4Ex KL6Ex	Usage	Other, coal mine
Power Source	Rechargeable Battery
Battery Type	Lithium Ion	IP Rating	IP65
Lamp Body Material	ABS	Warranty(Year)	1
Lamp Power(W)	0.2

Product Description

5 led head lamp

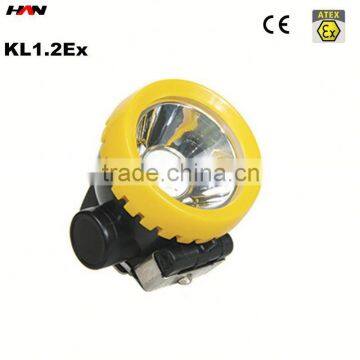

Features of KL1.2Ex, KL4Ex, KL6Ex

They own Europe Coal Mine Explosion-proof Certificate-ATEX. Main light adopt LEDs, has a high brightness and long life span. The switch of head lamp adopts light-touch electronic switch, good seal and easy to use, With the microprocessor control chip inside, it has multi-function for self-protection, intelligent managing the process of charging and discharging, and can be charged by all kinds of chargers. It has Lithium manganic battery pack, which has no memory, free of maintenance, environment protection, safe and reliable. The product is widely used for lighting in the environment where flammable and explosive gases exist.

Meaning of Model:

K--- Miner’s Cap Lamp

L--- Li-ion battery

1.2, 4, 6--- Rated capacity of battery(Ah)

Ex--- Explosion-proof

mining light

Main Specifications

Item			KL1.2Ex	KL4Ex	KL6Ex
Battery style			Li-ion
Rated capacity			1.2Ah	4Ah	6Ah
Rated voltage			3.7V
Lighting time			≥11h	≥15h	≥16h
Main light source	Working current		0.12A	0.22A	0.28 A
	Max luminance (1m apart from the lamp)	When lighting begins	>2200lx	>4300lx	>5000lx
		After lighting for 11h	>2000lx	>4300lx	>5000lx
Sub-light source rated power			0.2W
Life of cap lamp			2 years
Charging Voltage			(6-8)V
Charging time			≤8h	≤8h	≤10h
Explosion protection			Ex ia I Ma
Protection grade			IP65	IP54	IP54
Dimensions of battery case			67x82x73 mm	105×29×120 mm	105×29×120 mm
Weight			0.2kg	0.65kg	0.65kg
