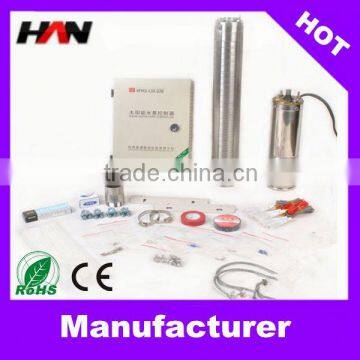

Full Stainless Steel High Flow Solar Water Pump for Pond

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China	Brand Name	HAN
Model Number	4SP	Theory	Centrifugal Pump
Structure	Multistage Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other	Pressure	High Pressure
Application	Submersible

Product Description

solar water pump for pond

1.Application:

Domestic water supply, Industrial water pumping, Central water supply, Gardening water pumping,

Agricultural irrigation, Desertification control

2.Our Features:

1).Applications Innovation:

The DC pump brushless motor has increased its efficiency up to 25% in comparison with traditional small asynchronous motor.

2).Technology Innovation (Patent):

Stator and rotor are sealed by environmentfriendly casting resin.The motor's insulation resistance is more than 10 years long.

it greatly increased the safety and reliability of the submersible motor.

3).Structure Novelty:

Stator and rotor processed by casting resin technology as well as the water lubricated bearing make the submersible pump more

environment friendly,easier to install and more reliable.

3. Our model

Type of Pump	Power of Pump (KW)	MPPT controller (V)	Solar panel(KWp)	Flow rate (m3/h) /head (m) (optimal use scope)			Outlet diameter (mm/inch)
4SP2-9A	0.37	48	0.72(4pcs 180Wp)	1.5 /40	2 /38	3 /25	32 /1.25
4SP2-13A	0.55	110	1.175(5pcs 235Wp)	1.5 /60	2 /56	3 /36
4SP2-18A	0.75	110	1.44(8pcs 180Wp)	1.5 /85	2 /77	3 /50
4SP2-23A	1.1	220	2.115(9pcs 235Wp)	1.5 /107	2 /98	3 /66
4SP2-28A	1.5	220	2.88(16pcs 180Wp)	1.5 /130	2 /118	3 /78
4SP2-33A	1.5	220	2.88(16pcs 180Wp)	1.5 /152	2 /139	3 /93
4SP2-40A	2.2	220	4.23(18pcs 235Wp)	1.5 /185	2 /169	3 /113
4SP2-48A	2.2	220	4.23(18pcs 235Wp)	1.5 /223	2 /203	3 /134

4SP3-6A	0.37	48	0.72 (4pcs 180Wp)	1.8 /33	3 /28	4.2 /16	32 /1.25
4SP3-9A	0.55	110	1.175(5pcs 235Wp)	1.8 /50	3 /41	4.2 /24
4SP3-12A	0.75	110	1.44(8pcs 180Wp)	1.8 /67	3 /55	4.2 /33
4SP3-15A	1.1	220	2.115(9pcs 235Wp)	1.8 /83	3 /69	4.2 /41
4SP3-18A	1.1	220	2.115(9pcs 235Wp)	1.8 /100	3 /83	4.2 /49
4SP3-22A	1.5	220	2.88(16pcs 180Wp)	1.8 /122	3 /101	4.2 /60
4SP3-25A	1.5	220	2.88(16pcs 180Wp)	1.8 /138	3 /115	4.2 /68
4SP3-29A	2.2	220	4.23(18pcs 235Wp)	1.8 /158	3 /132	4.2 /77
4SP3-33A	2.2	220	4.23(18pcs 235Wp)	1.8 /182	3 /153	4.2 /89

4SP5-4A	0.37	48	0.72(4pcs 180Wp)	2.7 /21	5 /15	6 /10	40 /1.5
4SP5-6A	0.55	110	1.175(5pcs 235Wp)	2.7 /32	5 /25	6 /17
4SP5-8A	0.75	110	1.44(8pcs 180Wp)	2.7 /43	5 /32	6 /23
4SP5-12A	1.1	220	2.115(9pcs 235Wp)	2.7 /63	5 /49	6 /37
4SP5-17A	1.5	220	2.88(16pcs 180Wp)	2.7 /90	5 /67	6 /47
4SP5-21A	2.2	220	4.23(18pcs 235Wp)	2.7 /110	5 /82	6 /59
4SP5-25A	2.2	220	4.23(18pcs 235Wp)	2.7 /132	5 /101	6 /71

4SP8-5A	0.75	110	1.44(8pcs 180Wp)	4.2 /26	8 /20	10.8 /12	50 /2
4SP8-7A	1.1	220	2.115(9pcs 235Wp)	4.2 /35	8 /27	10.8 /17
4SP8-10A	1.5	220	2.88(16pcs 180Wp)	4.2 /50	8 /39	10.8 /24
4SP8-12A	2.2	220	4.23(18pcs 235Wp)	4.2 /61	8 /48	10.8 /28
4SP8-15A	2.2	220	4.23(18pcs 235Wp)	4.2 /76	8 /60	10.8 /36

4SP14-5A	1.5	220	2.88(16pcs 180Wp)	6 /28	14 /20	18.9 /6	50 /2
4SP14-7A	2.2	220	4.23(18pcs 235Wp)	6 /40	14 /27	18.9 /8	50 /2

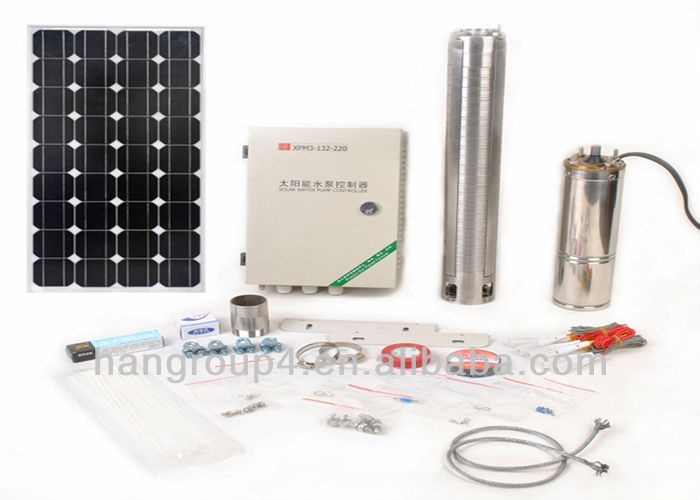

solar water pump for pond

4. How to connect?

5.Our project

6.Our Certification:

7. Factory show:

8.About HAN GROUP
