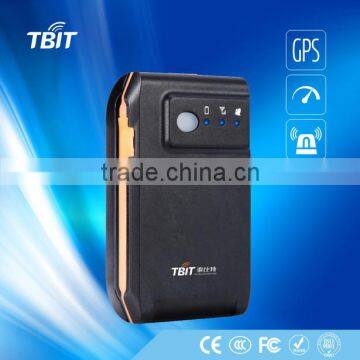

new portable waterproof and magnetic gps locator

Main Features

1,Fully support owner checking and operating GPS tracker by SMS, search the car in the internet.

2,Large capacity rechargeable battery (4800mAH) & long standby time(about 45 days).

3,Can position even no GPS signal, with unique patent technology in the global.

4,Waterproof & magnet pin(IPX6).

5,Notify the owners of warning message(vibrated alarm,Low power alarm,Geo-fence alarm).

6,Built-in antenna and battery.

7,Search the car in the internet(Positioning,monitoring,historical track,data statistics)

8,Easy to install.

Function introduction

1, SMS checking:Through the cell phone to locate,tracking,query status,query parameters,set parameters almost all of operations. The Position description in Chinese will send to the owners.

2,Vibration alarm:In arm status, if somebody shakes the motorbike, the device will send the SMS to the owner.

3,Geo-fence alarm:In arm status, the car removed to surpass certain

distance will report the alarm. And the alarm will send to the platform and the

owners.

4,Online Checking:  Check where your car/motorcycle is online through google maps.

5,Web alarm:Speeding alert,zone alert,web pop-up alert.

6,Data statistics:Speeding statistics,Mileage statistics,the number of alarm statistics.

Product specification:

1,GPS Features

Chipset:UBLOX UBX-G6010

Receiver: L1(1575.42MHz),C/A(1.023MHz)

Channel:50 channels

Sensitivity:<-161dBm

TTFF: Cold start 40s, Hot start 2s

Fix Accuracy: <10m

Speed Accuracy: 0.3m/s

2,GSM Features

Frequency: GSM 900/1800

Maximum transmission power: 1W

3,Main Features

Dimensions:100mm×60mm×30mm

Working Voltage: 3.7V-4.2V

Maximum Operating Current: <800mA(12V)

Standard Operating Current: <10mA(12V)

Operating temperature: -20 °C ~ +65 °C

Humidity: 20 ~ 95%

Warranty

1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.

Delivery

1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.

2. For order over 500pcs or customized order, lead time will be 1-2weeks after the receipt of payment.
