Home > Products > Ceramic sleeve/ring > Large Industrial Alumina Ceramic Refractory Bushings/sleeve

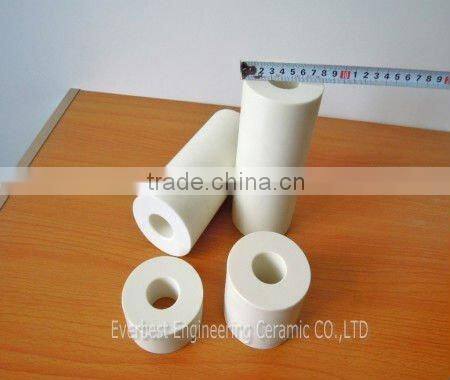

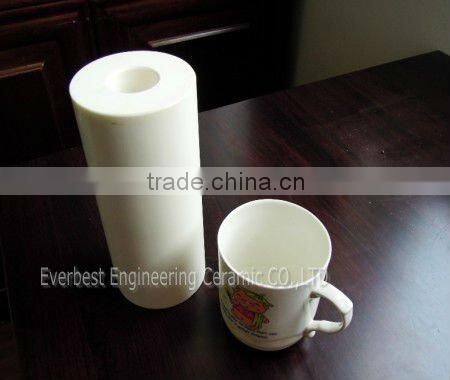

Large Industrial Alumina Ceramic Refractory Bushings/sleeve
- SHANGHAI
- T/T Credit Card PayPal
You May Like
-
Precision Industrial Wear Resistant Alumina Ceramic Tube
-
Industrial Wear Resistant Alumina Ceramic Ferrule/ Ring
-
With Slotted Hole Industrial 99% Ceramic Drain Pipe,ceramic Pipe
-
99%industrial Alumina Ceramic Pink Sleeve
-
Wear Resistant Alumina Ceramic Sealing Ring
-
Alumina Structure Ceramic With One End Tube/bushing
Product Details
| Place of Origin | Jiangsu, China | Type | Ceramic Tubes | |
| Application | Refractory | Material | Alumina Ceramic | |
| Model Number | Custom design | Brand Name | EB |
Product Description
Feature
Alumina ceramic bushing has the advantages of super hardness,high wear-resisting,good corrosion resistance resistant acid-base, high intensity, high temperature tolerance, high mechanical strength and so on.It widely used in various mechancal field.
Property
Items | Unit | 95%Al2O3 | 99.5%Al2O3 |
Density | g/cm3 | 3.7 | 3.9 |
Flexural Strength | MPa | 313 | 340 |
Compressive Strength | MPa | 3400 | 3600 |
Modulus of Elasticity | GPa | 350 | 380 |
Impact Resistance | MPa·m1/2 | 4 | 5.1 |
Weibull Modulus | m | 10 | 10 |
Vickers Hardness | HV0.5 | 1800 | 1900 |
Thermal Conductivity | W/mk | 24 | 27 |
Highest Application Temperature | °C | 1600 | 1750 |
Volume Resistivity at 20°C | Ω.cm20 | >1014 | >1014 |
Dielertric strength | KV/mm | 20 | 25 |
Thermal expansion | X10-6/K | 5.0-8.3 | 5.4-8.3 |
Forming methods includes
1, ceramic shaft for aquatic animals equipment filter pump
2, Ceramic plunger for high pressure cleaner.
3,Wearlessness,resistant acid-base and high intensity ceramic assembly apply to petroleum ,chemical and chemical industry.
4,Wearlesness, corrosion resistance, thermostable parts apply to precision machine.


Remarks
Customized production is available, for more information, please do not hesitate to tell me.Dimension, Tolerance, Surface Roughness, Concentricity, Perpendicularity and other specification are upon your requirements.
