Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Electric | Place of Origin | Zhejiang, China | |
| Brand Name | QianKun | Model Number | YO18 | |
| Usage | Ore | Power(W) | 1.5KW~ 15KW | |
| Weight | 26KG | Certification | ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
hand held rock driller1.Air pressure:0.4- 0.63MPa
2.Drill bit dia:34-42mm
3.Hole Depth: 5m
hand held rock driller

Qiankun penumatic rock drill bits
1.Safe and easy operate
2.High efficiency and reliability
3.Best product quality control from cutting edge forging process to product completion
4.Durable with minimal maintenance
Applications
The rock drill machine is a kind of high efficiency air leg rock drill machinery.
It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
It has many advantages, such as reasonable design, light weight, high efficiency, fast drilling velocity, low consumption convenient operation, low trouble rate, long life parts, and good economic effect.
Features
1.Original in distributing construction, nimble in starting, and smooth in operation.
2.It has special strong blowing-out construction, blow strongly is specially suitable for drilling medium and deep-sized holes.
3.It may be used with dry or wet flushing, so it is suitable not only for extinguishing dust of drilling under-ground but also in high frigid zone lacking of water.
Hand held rock drill
| Model | Weight | Length | Cyinder Dia.×Stroke | Working pressure | Impact energy | Impact frequency | Air comsumption |
| kg | mm | mm | MPa | J | HZ | I/s | |
| YO18 | 18 | 550 | 58×45 | 0.4-0.63 | ≥22 | ≥32 | ≤20 |
| YO20 | 20 | 561 | 63×55 | 0.4-0.63 | ≥26 | ≥33 | ≤33 |
Air-leg rock drill
Model | Weight | length | Cyinder Dia.×Stroke | Working pressure | Impact energy | Impact frequency | Air comsumption |
YT23 | 24 | 628 | 76×60 | 0.4-0.63 | ≥65 | ≥37 | ≤78 |
YT23D | 24 | 668 | 70×70 | 0.4-0.63 | ≥65 | ≥31 | ≤67 |
YT24 | 24 | 678 | 70×70 | 0.4-0.63 | ≥65 | ≥31 | ≤67 |
ZY24 | 25 | 690 | 70×70 | 0.4-0.63 | ≥65 | ≥30 | ≤67 |
YT28 | 26 | 661 | 60 ×60 | 0.4-0.63 | ≥70 | ≥37 | ≤81 |

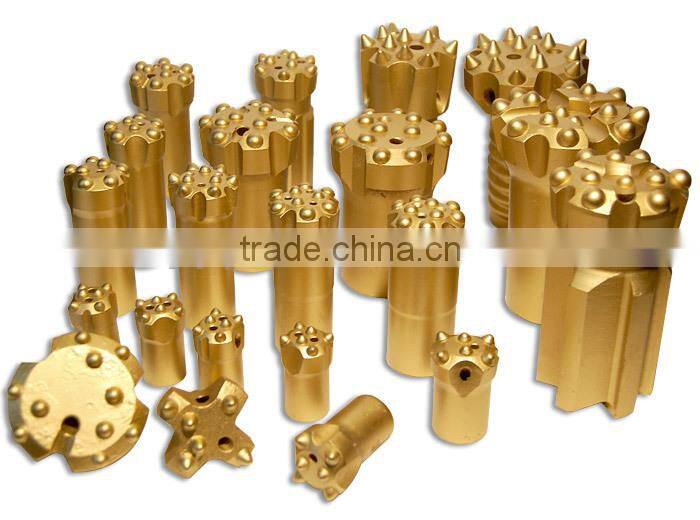

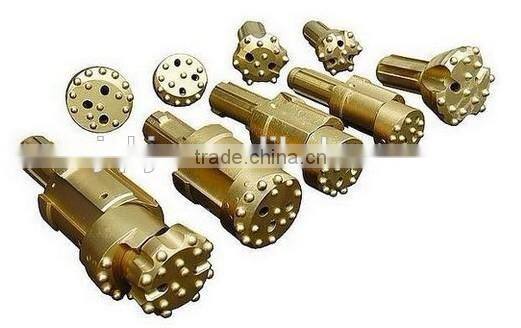

Rock drill bits
