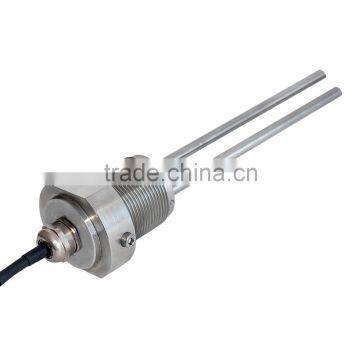

VHF-Band Moisture Measurement Sensor Crushed Stone, Gravel, Ore
- Hamburg
You May Like
Product Details
| Brand Name | PCE Inst. | Model Number | PCE-MWM 230 |
Product Description
Technical specifications: | |
Measurement range | 0 ... 100 % |
Limits of permissible absolute error of the measurements results of the mass fraction of water | 0.02 +0,025·W |
Range of working temperatures | 0 ... +90 °C (industrial version) |
Operation mode continous | continuous operation |
Measurement period | 0.3 ... 1.5 s |
Voltage supply - Rated / - Allowable | 24 (18 ... 36) VDC |
Consumption current, not more than | 200 mA |
Input power | <0,1 W |
Warm-up time at start-up | 30 min |
Output | RS 485 Modbus RTU, 4-20 mA [RS485: max. cable length 1,000 m; 4-20 mA: max. cable length 100 m (max. cable length to SPS unit)] |
Input | digital 24 VDC |
Dimension of the sensor, length | L 500 ... 1000 mm, Ø 15 ... 30 mm |
Protection class | IP54 |
mass | 5 kg |
